|Description:||Kingfisher KI-TK071A SM/MM Contractor Certification Fibertester Kit (MTP/MPO)|
850 / 1300 / 1310 / 1550 nm Autotest LED / Laser Source KI2824.
With standard accessories, eg: canvas pouch, leather holster, SC, FC, ST optical connectors, user manual, quick reference guide, test mandrels for 50u & 62.5u fiber, calibration certificates, conformance certificate.
Source meets Encircled Flux requirements at 850 nm with 50u fiber.
Multi-Fiber ID feature for 12 fibers.
CD with user manuals, useful application notes and standards compliant KITS reporting software.
2 x OPT076 LC Connector, Hybrid Adaptor, Ceramic Sleeve, SC/LC, metal body
To add Visitest VFL capability to the source, change to a KI 28624 / KI28634

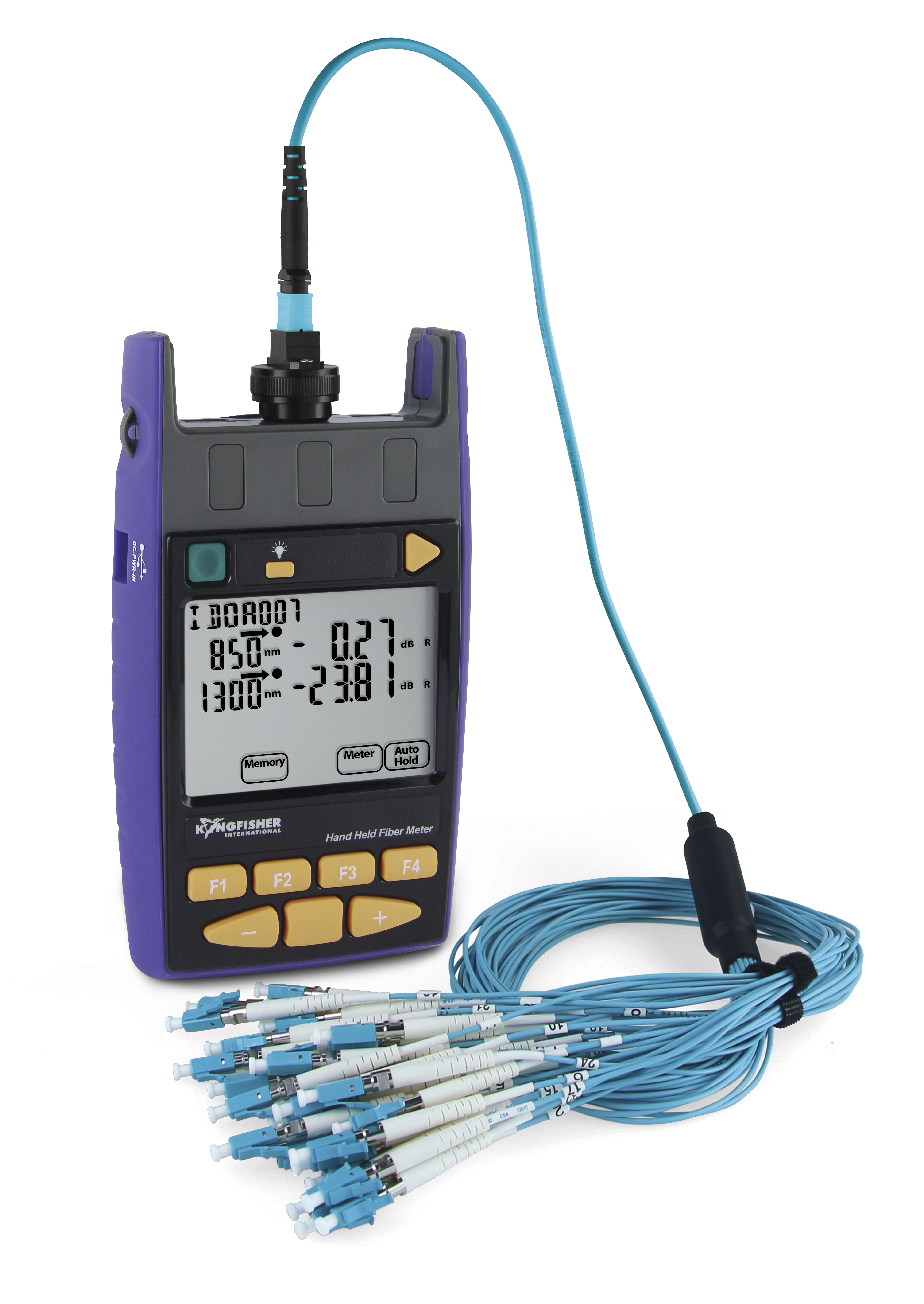

Optical Power Meter with large area Ge detector, Autotest, 10 calibration wavelengths, KI 2600XL-Ge5.
This meter measures the power coming out of any of the MPO fibers, so it doesn't need re-connecting every time the source is moved.
With standard accessories, eg: canvas pouch, user manual, quick reference guide, calibration certificates, conformance certificate.
CD with user manuals, useful application notes and standards compliant KITS reporting software, USB cable.
OPT227 Option, Connector Adaptor XL 7/8-28, MPO
OPT224 Option, Connector Adaptor XL 7/8-28, 1.25 mm universal
OPT201 Option, Connector Adaptor XL 7/8-28, SC
Connector inspection microscope
Fibersafe connector microscope x200 KI6610 with standard accessories, eg: 2.5 mm universal PC polish connector adaptor, batteries, user manual, conformance certificate.
OPT677 Option, Scope adaptor MPO/ MTP/MPO™
OPT682 Option, Scope adaptor 1.25mm Universal
Case Contents (OPT154A)
Optional Visual Fault Locator
- OPT154A-CASE carry case sturdily constructed of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper and separator, carry strap. Space for additional: (not supplied) batteries, connector adaptors, test leads, documentation, mains power pack, two mandrel wraps. This case can accommodate any two KI2000 or KI7000 style instruments.
- Cleaning materials
Cletop-S style A cartridge connector endface cleaner.
"stick" type connector endface cleaners 2.5 mm, Qty 5.
"stick" type connector endface cleaners 1.25 mm, Qty 5.
OPT401, MPO/ MTP/MPO™ reel cleaner
Puffer brush to clean microscope and optical power meter interface.
There are 2 ways to add VFL functionality to this kit: either add VisiTest to the light source, or get a pen-style VFL.
Optional visible fault locator pen e.g. KI6354 etc as required.
If you would like a visible fault locator pen with you kit, please select the right visible fault locator and order separately.
With accessories: batteries, user manual. You would also want OPT189 (LC)1.25 - 2.5 mm adaptor
- Clean / inspect / test SMF / MMF systems with MPO / MTP™ multi-fiber connectors. Customer supplies appropriate LC / SC breakout cables.
- Optical power measurement from -40 to +15 dBm, calibrations at 10 wavelengths.
- Optical loss testing on single mode fiber 1310 / 1550 nm with a range of 40 dB.
- Optical loss testing on multimode fiber 850 / 1300 nm with a range of 20 dB, standards compliant.
- Software for cable testing data capture, pass/fail and custom reporting.
- 12 fiber continuity / tone source & detection up to 40 dB loss using tone features on the source and meter.
- Visible fault locator pen (order separately as required).
- Connector end face inspection microscope x200.
- Connector cleaning tools & materials for MPO / MTP™, SC, LC connector styles.
- Low to modest test volume on multimode MPO / MTP™ systems, excellent operational flexibility.
Each kit contains:
- KI2824 Optical Light Source & standard accessories
- OPT076 LC Connector, qty 2, for source
- KI 2600XL-Ge5 Optical Power Meter & standard accessories
- OPT227 Connector Adaptor XL 7/8-28, MPO
- OPT224 Connector Adaptor XL 7/8-28, 1.25 mm universal
- OPT201 Connector Adaptor XL 7/8-28, SC
- KI6610 Microscope & standard accessories
- OPT677 Scope adaptor MPO/ MTP™
- OPT682 Scope adaptor 1.25mm Universal
- OPT154A Carry case and standard contents
- OPT401, MPO/ MTP™ reel cleaner
