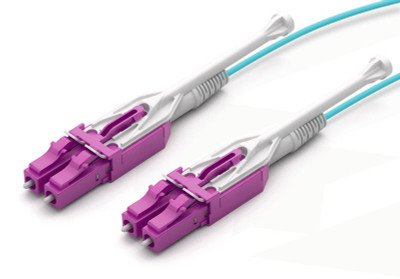

TAA Compliant Fiber Patch Cable, LC-LC, UPC, Multimode 50/125 Micron OM5 Fiber, Senko Uniboot & 3 sets of Pull Tabs (44mm, 64mm, 84mm)2.0mm OFNR Rated

click to zoom in

TAA Compliant Fiber Patch Cable, LC-LC, UPC, Multimode 50/125 Micron OM5 Fiber, Senko Uniboot & 3 sets of Pull Tabs (44mm, 64mm, 84mm)2.0mm OFNR Rated

Item#:
891818OM5D001MR2

Call or Email for Pricing & Availability! 866-678-5852 or email Sales2@CablesPlusUSA.com

Weight:
0.15 LBS
Customer Service

Need Help?

Speak to one of our experts.

TAA Compliant Fiber Patch Cable, LC-LC, UPC, Multimode 50/125 Micron OM5 Fiber, Senko Uniboot & 3 sets of Pull Tabs (44mm, 64mm, 84mm)2.0mm OFNR Rated

TAA Compliant Fiber Patch Cable, LC-LC, UPC, Multimode 50/125 Micron OM5 Fiber, Senko Uniboot & 3 sets of Pull Tabs (44mm, 64mm, 84mm)2.0mm OFNR Rated

Inspection DataFor greater multimode fiber optic bandwith and transmission distance with one of the absolute best connectors available, the LightWave LC-LC Uni-boot Multimode OM5 Fiber Optic Patch Cable is just what you are looking for. Now featuring a rigid Push-Pull Tab that allows for connector insertion as well as diconnect. Achieve optimal performance and maximum efficiency with OM5 technology, allowing you to move more data, and move it further than before.

Technical Drawing - LC to LC Fiber Optic Patch Cable

The LC-LC fiber optic cable in OM5 multimode configuration helps you achieve data transfers over a 50/125 micron glass fiber 1Gbps link a distance of up to 1100 meters at a wavelength of 850nm, and a distance of up to 550 meters at a wavelength of 1300nm. For a 10Gbps link, you can transfer data a distance of up to 550 meters at an 850nm wavelength.

Inspection DataEach and every LightWave brand cable goes through rigorous inspection to ensure quality that meets customer demands, and this LC-LC fiber patch cable is no exception. All parts are assembled to industry standards, in order to bring you the best product possible, and we include the test results of each cable in its packaging.

Connector Side A
LC/UPC Uniboot Connector Side B
LC/UPC Uniboot
Ferrule Type Side A
1.25mm Ferrule Type Side A
1.25mm
Insertion Loss Maximum Side A
≤0.20dB Insertion Loss Maximum Side B
≤0.20dB
Insertion Loss Typical
0.08dB Insertion Loss Typical
0.08dB
Return Loss ≥20dB Return Loss ≥20dB
===============
==================== ==================
==================
Cable Type
OM5 50/125μm Wavelength 850/953/1300nm
Fiber Count 2 Fiber Grade Corning ClearCurve Wide Band Glass
Polarity Rollover (Type B) Cable Outer Diameter 2.0mm Simplex
Cable Jacket OFNR Riser Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
40 GbE Distance Max. 100 GbE Distance Max. 40G-SWDM4 100G-SWDM4
150 Meter 150 Meter 500 MEter 150 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

Features

  • Multimode OM5
  • Uniboot Push Pull Tab design perfect for High Density Data Center applications
  • Highest multimode LED bandwidth and transmission distance
  • Tested to ensure quality
