Premier Conduit
Speak to one of our experts.

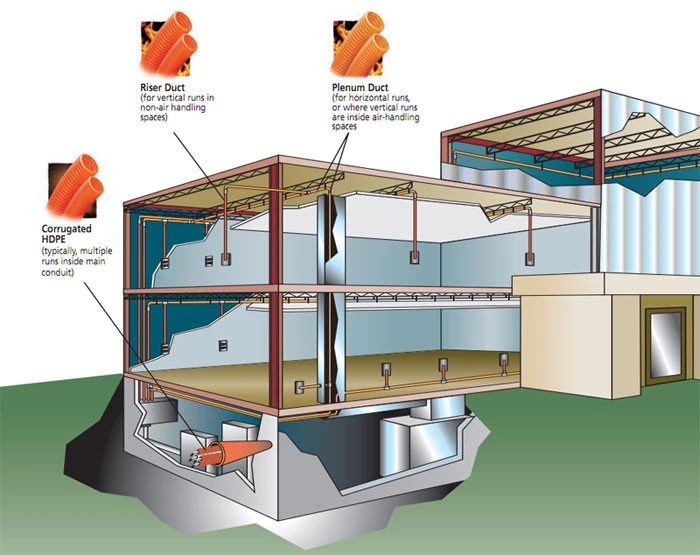

Premier Conduits Plenum Corregated Conduit is a flexible, non-metallic, corrugated raceway used for effective cable and fiber optic management within interior raceways. Premier Plenum meets UL-(910) standards for the National Electrical Code, Article 770, and satisfies UL-2024 standards for low smoke and flame propagation.
Premier Plenum featured pre-installed pull tape for easy cable installation. The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard.

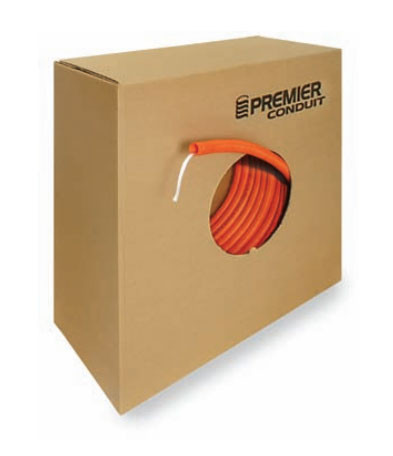

For your convenience, Premier offers Pull Boxes for coils.
Box Size 31"x15"x32"
- Holds up to 250' of 1" and 1-1/4"
Box Size 40"x15"x40"
- Holds up to 500' of 1" and 1-1/4"
- Holds up to 300' of 1-1/2"
- Holds up to 250' of 2"
Test Results (Using Test Method UL-2024) | |
Properties | Value |
Smoke peak optical | 0.02 |
Smoke average optical density | 0.01 |
Max. flame spread distance (ft.) | 1.5' |
Max. flame temperature | 554°F |
Call 866-678-5852 for custom lengths (min. length 100')!
