SC/APC-SC/APC, Singlemode 9/125 OS2, Duplex Fiber Patch Cable
MSRP:
$14.41 - $39.53
$8.24 - $22.59
Speak to one of our experts.
SENKO’s original MPO PLUS standard connector is designed for high density applications up to 32 fibers with industry leading low loss ferrules and components for superior performance.

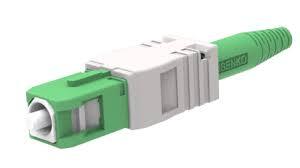

SENKO’s flagship highest quality SC connector series designed to exceed the telecommunication industry’s rigorous testing requirements for years of reliable service.
At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component. US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind. Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.
Precision optical interconnect solutions include:
| Connector Side A |
MPO Low Loss 12 Fiber | Connector Side B |
(6) SC/APC |
| Ferrule Type Side A |
|
Ferrule Type Side B |
|
| Insertion Loss Maximum Side A |
≤0.25dB | Insertion Loss Maximum Side B |
≤0.25dB |
| Insertion Loss Typical |
0.10dB | Insertion Loss Typical |
0.12dB |
| Return Loss | ≥60dB | Return Loss | ≥65dB |
| =============== |
==================== | ================== |
================== |
| Cable Type |
OS2 9/125μm | Wavelength | 1310/1550nm |
| Fiber Count | 12 | Fiber Grade | OS2 |
| Polarity | Type A, B & C available | Cable Outer Diameter | 3.0mm |
| Cable Jacket | OFNP Plenum | Sub Unit Outer Diameter | N/A |
| Bend Radius, No Load |
10x cable overall diameter | Bend Radius, Load |
15x cable overall diameter |
| =============== |
==================== | ================== |
================== |
| Wavelength |
1 Gb Distance Max. |
Wavelength |
10 Gb Distance Max. |
| 1310nm | > 25,000 Meters | 1310nm | 10,000 - 25,000 Meters |
| 1550nm | > 40,000 Meters | 1550nm | 40,000 Meters |
| Operating Temperature | 0° to 70°C (32° to 158°F) | Storage Temperature | -40° to 70°C (-40° to 158°F) |
