CAT6A Patch Panel in 110 Type with 24 Ports and 1 RMS

ICC’s Category 6A 24-Port 110-Type 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-Type IDC on the rear is designed to provide optimum permanent and channel link performance and reduces potential Alien Crosstalk (AXT). The jacks are grouped in six-port modules for quick administration and labeling. All of the modular contacts are 50 gold plated to protect from corrosion. The high-density design occupies 1 rack mount space (RMS) and measures 19″ width x 1.75″ height.

Features

• Vertical 110-Type IDC connections reduce potential Alien Crosstalk (AXT)
• Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port
• Enhanced crosstalk cancellation and reduced return loss for high bandwidth network requirements
• Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware component rating requirements
• 110-Type IDC termination helps reduce installation time and improve wire retention

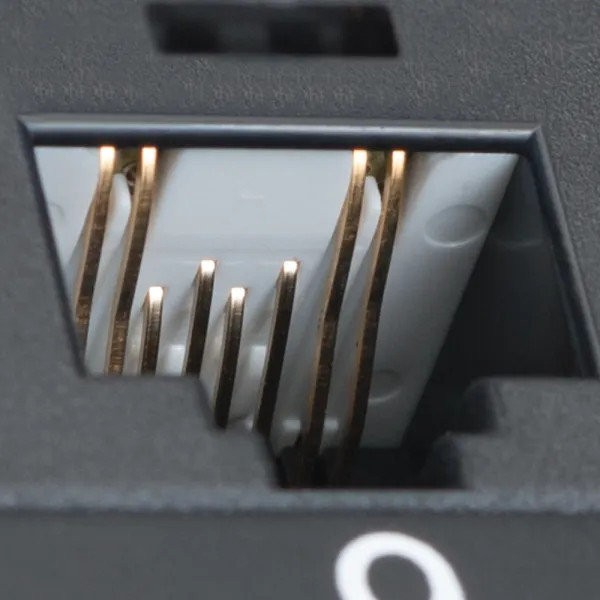

• 50µ gold plating on all modular contacts to protect from corrosion
• Mounts on industry standard 19″ wide racks or equipment
• 1 rack mount space (RMS)
• T568A or T568B wiring schemes
• Meets TIA-568-C.2 Cat 6A connecting hardware requirements
• UL Listed

Specifications

Environmental Conditions:

Temperature range

Storage: -40° to +70°C

Operational: -10° to +60°C

Relative humidity (operational): maximum noncondensing 93%

Electrical:

Electrical insulation resistance: 500M min @ 100V DC

Dielectric withstanding voltage: 1000V DC or AC peak

Contact @ 60Hz for 1 minute

Spring wire contact resistance: 20M max.

IDC contact resistance: 2.5M max.

Mechanical:

Retention: 50N (11 lbs sq) or 60S±5S

Insertion/extractor: 750 cycles min.

IDC wire gauge: 22~24 AWG

Physical:

Housing: zinc alloy fully shielded

Marking: mold UL information

Spring wire: phosphor bronze alloy plated with 50µ of gold over 70~100µ of nickel

IDC: phosphor bronze alloy with 100µ 100% Sn alloy

Size: 1.72″ height x 19.00″ width x 1.28″ depth
