CyberPower 3-Phase Smart App Online Scalable UPS 10-40KVA Modular N+1 208/120V 3 Phase RMCARD205

click to zoom in

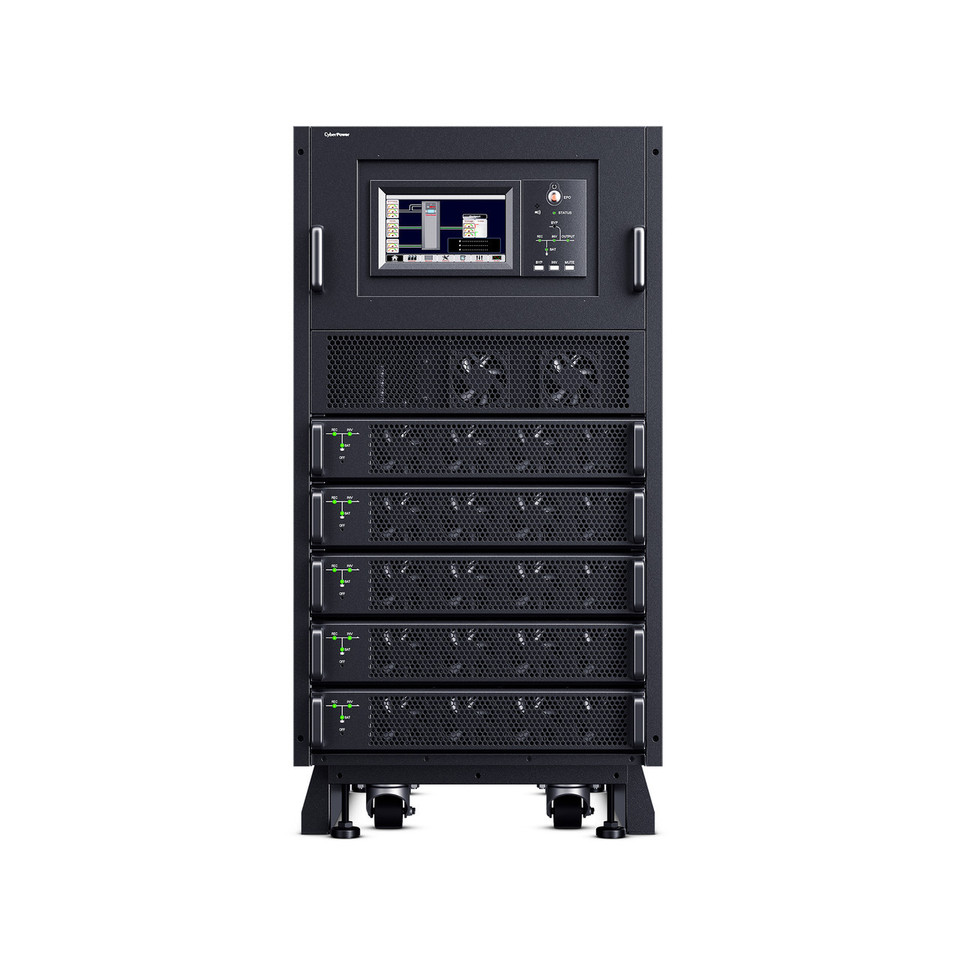

CyberPower 3-Phase Smart App Online Scalable UPS 10-40KVA Modular N+1 208/120V 3 Phase RMCARD205

Item#:
SM040KAMFA
List Price: $12,924.00
$12,333.72
(You save $590.28 )
Weight:
269.00 LBS
Customer Service

Need Help?

Speak to one of our experts.

CyberPower 3-Phase Smart App Online Scalable UPS 10-40KVA Modular N+1 208/120V 3 Phase RMCARD205

List Price: $12,924.00
$12,333.72
(You save $590.28 )

SM040KAMFA |Smart App Online 3-Phase Modular UPS System

  • Telecom Installations
  • Data Centers
  • Industrial Environments
  • Healthcare IT Equipment
  • Industrial Automation Systems
  • Server Rooms
  • Patient-Care Vicinities

Product Overview

The CyberPower SM040KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.

The SM040KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7” color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM040KAMFA 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.

Product Features

Double-Conversion Topology
Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

Full Matrix LCD Touch Screen
Simple to set up, the user-friendly 7” color touchscreen display provides key status indicators at-a-glance with alerts of potential problems that could impact equipment and cause downtime. Screen tilts up to 22 degrees for easy viewing.

Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power maintenance.

N+N Redundancy
Ensures uninterrupted operation if the entire system fails. N+1 redundancy guarantees system availability if one power module fails.

Expandable External Battery Cabinet
Extends runtime by adding space for additional battery modules.

Smart Battery Mangement
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

PowerPanel® Business Software
Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

RMCARD205
Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.Optional Input and Output 175A Circuit Breakers
Ensures power is turned off during service or maintenance and eliminates the risk of unintended powering off.

Upgradable UPS Firmware
Keeps equipment running by eliminating downtime during UPS power maintenance.

Multiple Language Options
The LCD Control Panel can be configured in English or Chinese.

Emergency Power Off (EPO)
Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.

Generator Compatible
Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.

Converter Mode
Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.

USB, Serial, Modbus, and SNMP Connectivity
Flexible connectivity to use PowerPanel software, Modbus, or a RMCARD205 to monitor and manage your Smart App Online 3-Phase Modular UPS.

Audible Alarms
Identifies when the UPS is running on battery power, overloaded, or has a low battery.

Customizable Configuration
The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack.

One-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within one year of your 3-Phase UPS installation. See warranty for details.

Redundancy

Power Module (N+1) – Ensures power continuity with an additional redundant power module option configuration. If a module fails, the rest of the modules take over to guarantee power needs are met.

UPS System (N+N) – Ensures uninterrupted system operation with a mirrored parallel system configuration and capability to fully take over connected power needs should either system go offline for any reason.

Scalable / Modular Design

Depending on the model selected, the system can be scalable from 10-20kVA or 10-40kVA to meet current and future power needs within the same footprint. N+N parallel system power up to 80kVA capability.

Highly configurable system can be adapted to different site needs. UPS and battery cabinets can be assembled as a tower stack, side-by-side, or within a rack. Power and battery modules are compact and designed for rapid assembly or removal.

High-Density Power Modules

Compact 2U Design (3.3″ height) for easy installation and service. Compact footprint allows for an efficient cabinet design. Getting more power in less space will become critical as growing data centers confront physical space limitations.

User Interface LCD Color Touch Screen

Intuitive LCD touch display control provides four main display windows; Main Menu, System Information, Power Path, and Warning Messages. The operator can control the UPS, check all measured parameters for UPS and battery status, plus monitor event and history logs.

Smart Battery Management

Smart Battery Management (SBM) improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
