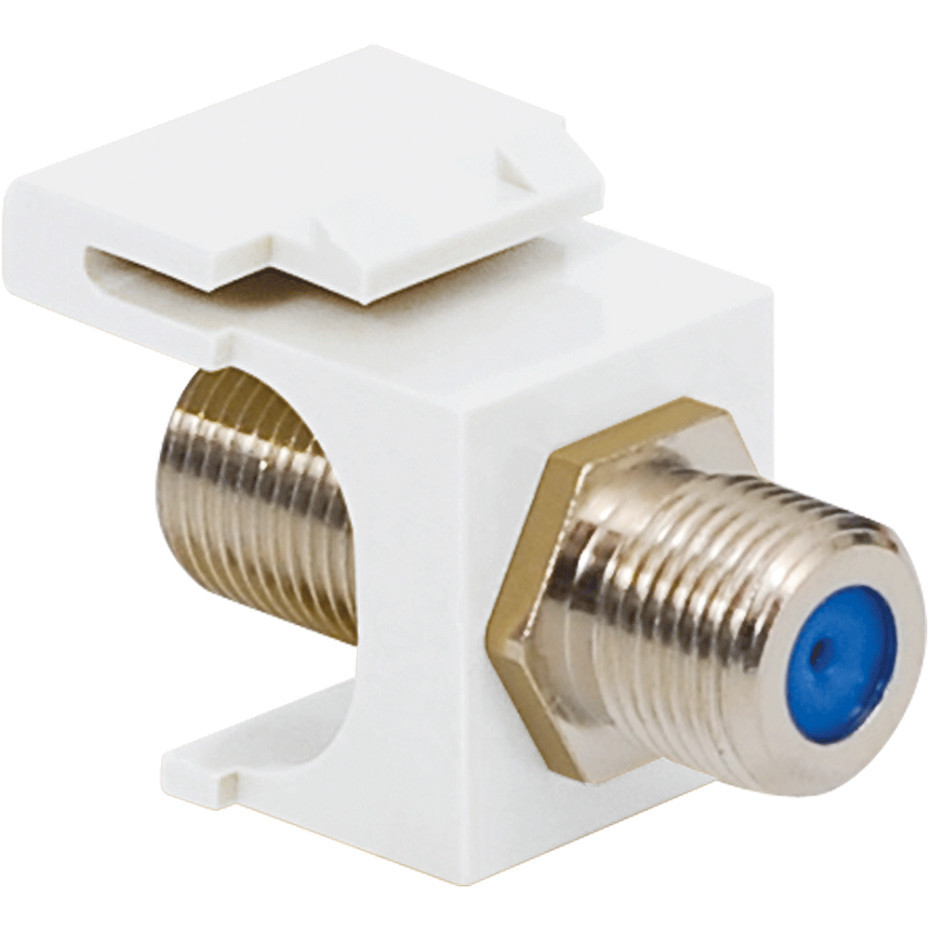

3 GHz F-Type Modular Jack with Nickel Plated Connector in HD Style

The F-type modular jacks are ideal for several types of media including: Audio-Video, Cable, Satellite or Antenna Input. These high performance modular jacks provide a clean connection point for wired electronics to wall outlets allowing cables to be hidden within the walls or cabinetry. They provide superior signal quality with minimal noise for today's video and audio systems. They are fully compatible with all modular wallplates and multi-media panels.

Product Features

• Designed with 3 GHz bandwidth for audio and video applications
• Provides ultra sharp video clarity
• Blue insert to designate 3 GHz
• Rear threaded F-Type connectors for secure in-wall connections with both RG6 and RG59 coxial cables
• Provides a clean and neat appearance installation
• Compatible with all IC107 faceplates, inserts, surface mount boxes and blank patch panels
• Compatible with all IC108 furniture faceplates, bezels and surface mount boxes
• Used with ICC RG6 F-Type ICPCSF patch cords
• Available in almond, black, ivory and white
• UL listed

Specifications

Housing:

• Material: ABS, UL 94V-0
• Color: XX: AL-ALMOND, BK-BLACK, IV-IVORY & WH-WHITE

Nickel Plated F-type Connector:

• Material: Bronze with Nickel Plating
• Holding Force > 80 Grams
• F-type Connector Threads: 3/8-32 UNEF-2A

Electrical:

• Return Loss Of -20 dB MAX
• Frequency Range 1.4 ~ 3.0 Ghz
• Contact Resistance ≪ 10 Mohm
• Character Impedance Rated 75 Ohm
• Insulation Resistance > 10 Mohm
