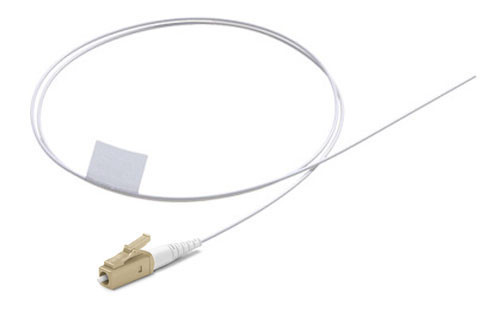

LC/PC Fiber Optic Pigtail, Multimode OM1, Tight Buffer 900um

Sale
click to zoom in

LC/PC Fiber Optic Pigtail, Multimode OM1, Tight Buffer 900um

Item#:
FPT-OM1-LC-1M-BL
List Price: $2.87
$2.16
$2.12
(You save $0.75 )
Condition:
New
Availability:
7 – 10 Day Lead-Time
Weight:
0.05 LBS
Customer Service

Need Help?

Speak to one of our experts.

LC/PC Fiber Optic Pigtail, Multimode OM1, Tight Buffer 900um

LC/PC Fiber Optic Pigtail, Multimode OM1, Tight Buffer 900um

List Price: $2.87
$2.16
$2.12
(You save $0.75 )

LC/PC Fiber Optic Pigtail, Multimode OM1, Tight Buffer 900um

List Price: $2.87
$2.16
$2.12
(You save $0.75 )

The OM1 Multimode LC Fiber Optic Pigtail is great for multimode applications, as the LC connector is known and loved for its performance and stability for all applications. With its PC finish, expect the best out of your LC fiber pigtail in a myriad of tasks, whether you are multi-networking or fusion splicing.

With its OM1 capability, this LC fiber pigtail pigtail will bring you data transfers over a 1Gbps link with a 62.5/125 micron glass fiber over a distance of up to 300 meters at a wavelength of 850nm, and over a distance of up to 550 meters at 1300nm. For a 10Gbps link, you can transfer data over a distance of up to 33 meters at 850nm.

Choose from a selection of 12 colors, including blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua.

All of our fiber optic pigtails are tested to ensure quality and performance that meet industry standards, and the test results for each pigtail are included with your purchase.



OM1 LC Fiber Optic Pigtail Optical Characteristics

Optical Characteristics 62.5/125 OM1
Maximum Finished Cable Attenuation Coefficient @850nm 3.0 dB/km
@1300nm 1.0 dB/km
Overfill Launch Bandwidth @850nm 200 MHz.km
@1300nm 500 MHz.km
Laser Bandwidth @850 220 MHz.km
Gigabit Ethernet Link Length (1 Gbps) 1000 BASE-SX (850nm) 300 Meters
1000 BASE-SX (1300nm) 550 Meters
Gigabit Ethernet Link Length (10 Gbps) 1000 BASE-SX (1300nm) 33 Meters

FC OM1 Fiber Optic Pigtail Features

  • Simplex Configuration
  • LC Connector
  • OM1 62.5/125µm fiber glass
  • Riser Rated
  • Available in lengths of 1 to 10 meters
