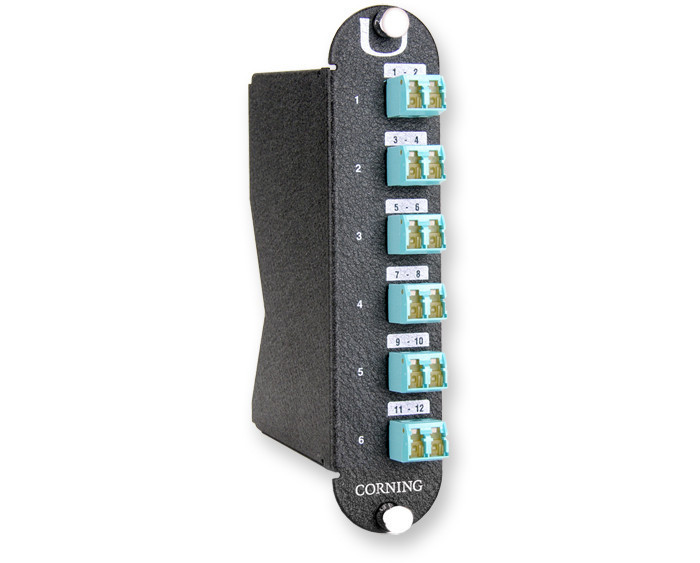

The Corning Plug & Play™ 12-Fiber OM4 LC to MTP Universal Module provides the interface between the MTP/MPO on the trunk and the LC or SC duplex jumpers that will then connect directly into the electronics. The LC duplex adapters feature hinged VFL-compatible shutters that move up and out of the way when the connector is inserted.

Specially designed indents in the shutters ensure that the end faces of the connectors are never touched. These shutters replace the standard dust caps that typically once removed are never replaced, exposing the interior end faces to dust particles and possible damage.

Corning Plug & Play 12-Fiber OM4 LC to MTP Universal Module Features

• Connector modules
  Allow for fiber modularity while offering both front- and rear-loading capability



• Corning® ClearCurve® 50 μm optical fiber
  Offers enhanced bend performance, allowing tighter cable routing without negatively impacting system performance



• Universal wired components
  Enable moves, adds and changes without polarity concerns; provide a simple migration path between 2-fiber and parallel optic applications



• Maximum skew of 0.75 ns
  Product is assured to work in parallel optic applications for Ethernet, Fiber Channel and InfiniBand
