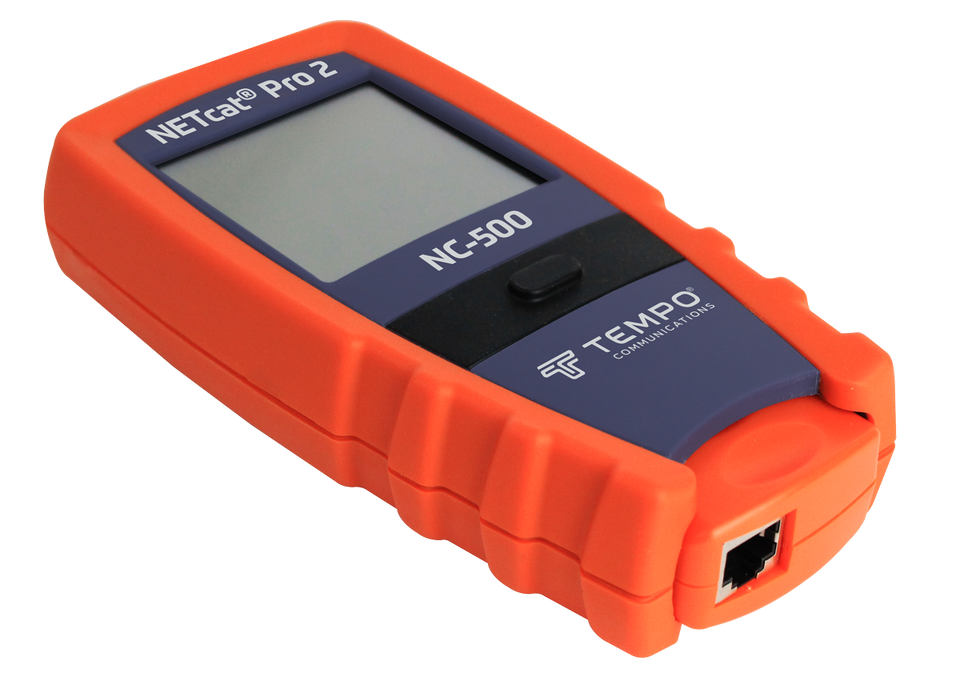

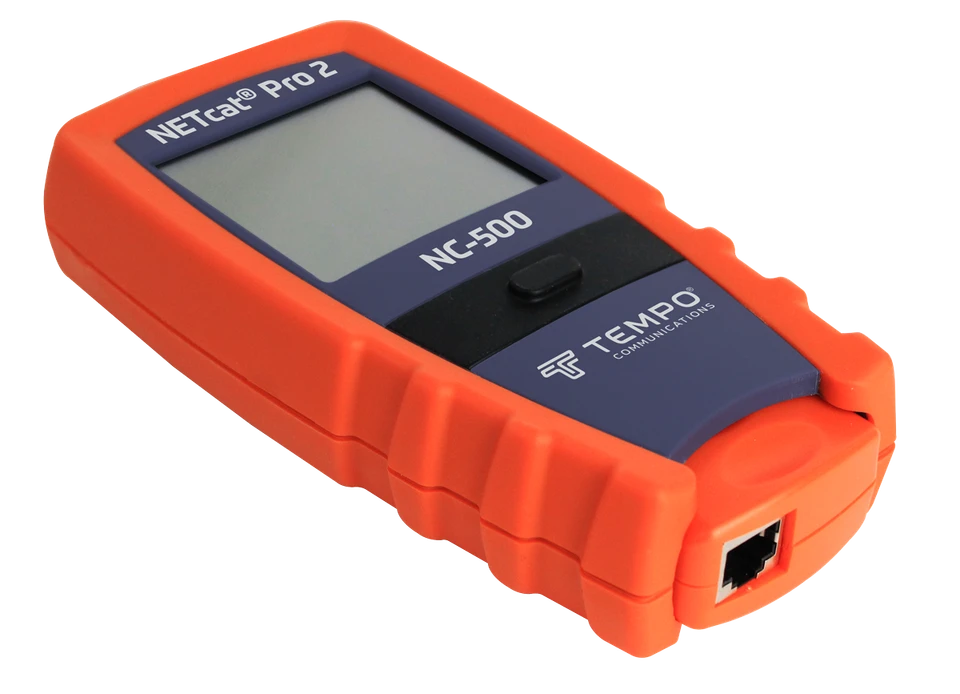

NC-500 NETcat® Pro2 Wiring Tester
Cat No: NC-500
Legacy UPC No: 783310236399
The NETcat® Pro2 is a digital cable and service verification tool for fast, accurate checking of cables, wiring, and network service. Operated using a back-lit touch screen display, the Pro not only tests wiring continuity and proper pair allocation, but measures the length of multi-pair cables, LAN, or coaxial cables by utilizing advanced high-speed Step TDR (time domain reflectometry). Additionally, the NETcat® Pro determines if network service is available up to Gigabit and displays whether Power over Ethernet is provisioned. When used with the NC-510 Accessory Kit containing seven (7) expansion remote test modules, the NETcat Pro can uniquely test coax or twisted pair jacks from a central location, eight (8) at a time. Using a fingertip or the built-in stylus, the screen can be used to control and display a range of tests from fault finding the wire-map, to TDR length measurement. The display can be set to English, Spanish, German, or French language.
- CAT 5 and up cabling (both shielded and unshielded) plus coaxial cables can be tested.
- Pair tracing tones can be generated and applied to various combinations of wires to aid detection.
- Test and troubleshoot telephone, data, and coax wiring
- Detect split pairs, short circuits, broken, and crossed wires
- Step TDR technology shows length to open or short of all pairs
- Large icons ensure easy use with your finger too
- Backlit touch-screen used to control all functions
- Included stylus slots into main unit
- Tone generator with four selectable precision frequency tones, compatible with Tempo advanced digital signal processing probes
- Identifies active network devices on 10/100/1000 Base-T Ethernet (802.3) networks both half and full duplex.
- Identifies PoE (source device detection).
- Memo Pad/reminder feature: stored in non-volatile memory.
- Field replaceable “F” type connector.
- Graphical touch screen display with contrast adjustment and backlight.
- Tests shielded twisted pair (STP), unshielded twisted pair (UTP), and coaxial cables.
- 0-2,000 foot (600 Meter) cable length via step TDR.
- Sub-nanosecond resolution ensures this cable verifier is one of the most precise on the market, spotting errors that simple low speed wire-mappers miss.
- Patch cable and remote jack wire-map and identification using the self-contained "Office-ID/Remote" unit that neatly stores in the bottom of the main unit.
- Detects shorts, opens, reversed, crossed, and split pairs.
- Office identification using remote ID units - up to 8 different IDs, one included, seven additional available in NC-510 accessory kit.
- Troubleshoots and verifies a wide range of networks.
- Generate four distinct, precision tones for tracing low-loss cables like Cat 5.
- Operates on a single 9V battery, with low battery indicator.
- Compatible with Tempo precision digital probes.
| Attribute Name |
Attribute Value |
| Application |
Test and Troubleshoot Telephone, Data And Coax Wiring |
| Backlight |
White LED |
| Battery |
9 V Alkaline Battery (PP3) (Not Included) |
| Buttons |
LCD Touch-Screen, Single Momentary Contact Push Button |
| Display |
128 x 128 pixel LCD, 3" 78mm diagonal |
| Interface Connections |
RJ45 Shielded Jacks F-Type Threaded Female Coaxial Connectors |
| Remote Identifier |
2,000 ft. (609.6 meters) maximum distance |
| Resolution |
1 ft, 0.1 m |
| TDR Calibration |
- User Selectable Based On A Known Cable Length
- 40 PCT To 100 PCT In StepsOf 1 PCT
|
| TDR Range |
0 - 2000 ft (600 m) |
| Weight |
0.45 lb. (200 g) |
| Wiremap |
358 ft. (100 meters) maximum distance |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-20°C to 70°C |
| Accuracy |
±2% (to open) ±4% (to short or ID unit) or 2 ft (0.6 m) whichever is greater. |
| Dimensions |
3.3” x 1.4” x 6.7” (8.5 cm x 3.5 cm x 17 cm) |
| Includes |

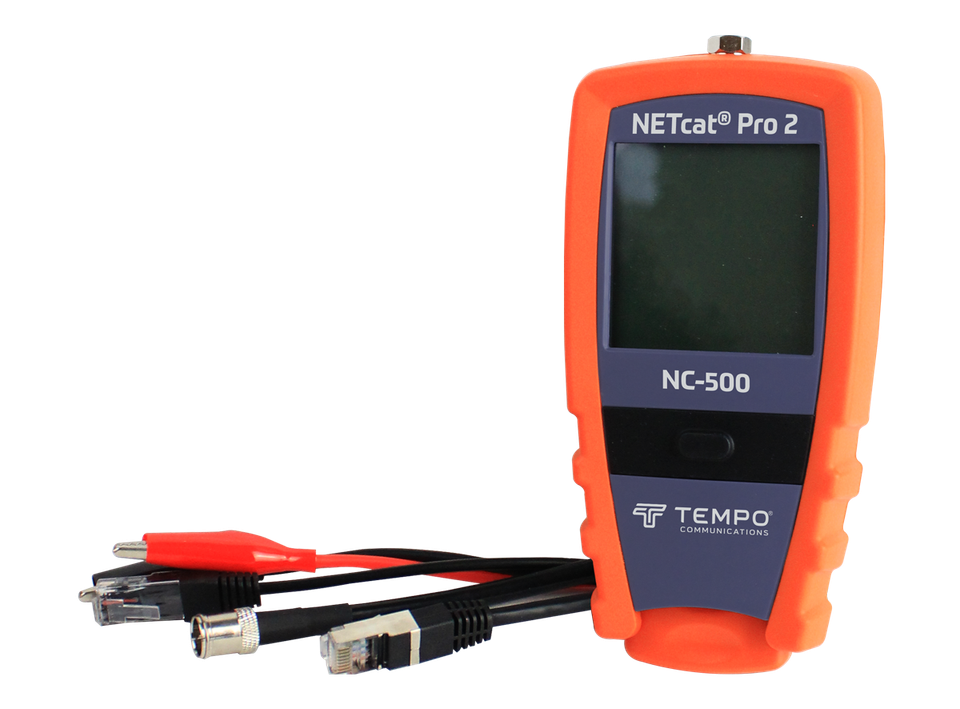

- Netcat Pro 2 Main Unit With Stylus
- Removable Remote Jack And Patch Lead Test And Id Unit
- Twisted-Pair (Modular Rj45), Coax (F) And Alligator Clip Test Cords
|
