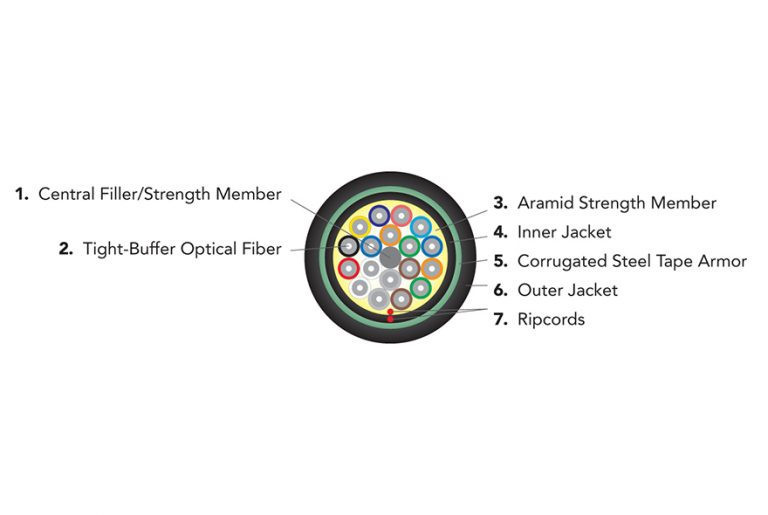

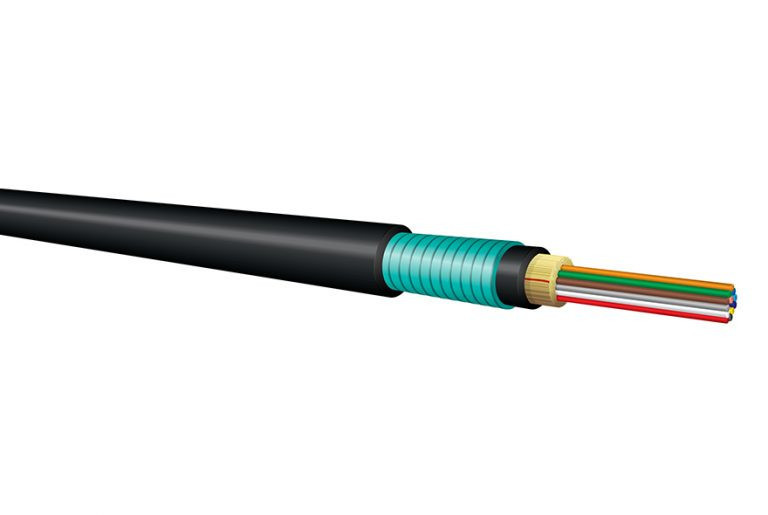

D-Series Distribution – Corrugated Steel Tape (CST) Riser Rated Armored Cables
Reference Previous Part Number: DX12-065D-SLX/900-CST
Note: This item may require 24 hours for cut and prep before shipping.
- Ideal for installation where direct burial or rodent protection is required
- OFCR rated to allow entry into riser spaces in unlimited lengths

Applications
- Ideal for installation where direct burial or rodent protection is required
- OFCR rated to allow entry into riser spaces in unlimited lengths

Features
- The steel armor is easily removed with an internal ripcord, leaving a fully functional intact riser rated inner cable, with original cable markings for identification
- UL listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
- UL listed OFCR cables with riser rated outer armor jacket. This feature eliminates the need to splice the outdoor cable to the indoor cable within 50 feet of the building entrance
- Inner tight-buffered cable is suitable for direct field termination with standard optical connectors
Characteristics
| Characteristic | Indoor/Outdoor |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -55°C to +85°C |
| Install Temp | -10°C to +60°C |
| Flame Retardancy | UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only |
| Crush Resist | 440 N/cm |
| Impact Resist | 20 impacts |
| Flex Resist | 25 cycles |
| Jacket Type | D |




Standards
OCC Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:
- UL 1666
- UL 1651
- ICEA-S-104-696
- TIA-568
- TIA-598
Specifications
Indoor/Outdoor
|  | Tensile Load | Minimum Bend Radius |  |
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in)
 | Weight kg/km (lbs/1,000ft)
 | Installation N (lbs)
 | Operation N (lbs)
 | Installation cm (in)
 | Longer Term cm (in)
 |  |
| 12 | DX012DSLA9KRA1 |  | 14.0 (0.55)
 | 181.0 (122.0)
 | 2,700 (600)
 | 900 (200)
 | 21.0 (8.3)
 | 14.0 (5.5)
 |  |
