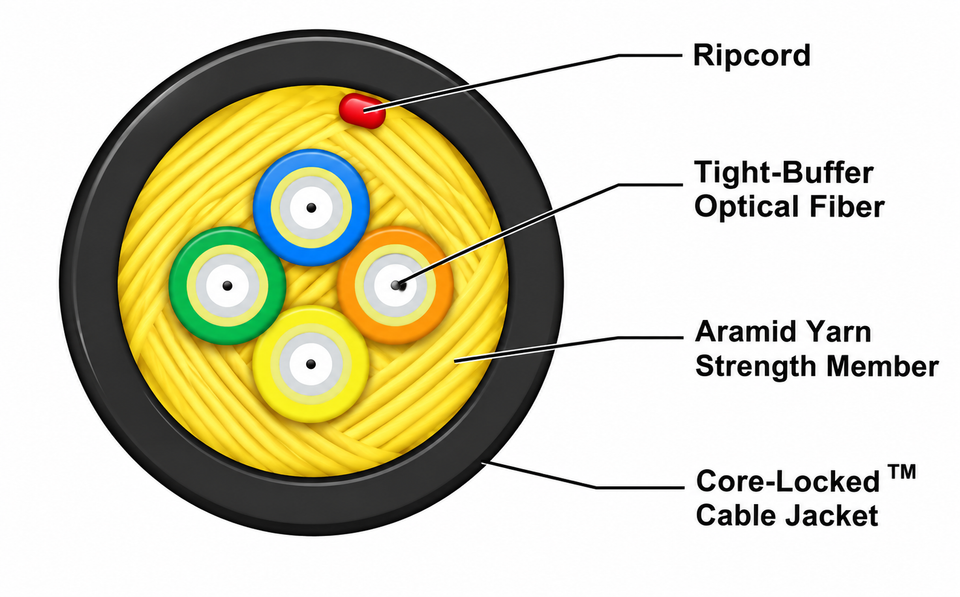

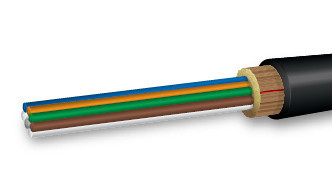

OCC, DX, Distribution Series, 4-Strand, 900um, Tight Buffered, Military Tactical, OS2, 9/125, Singlemode, Black Jacket (Priced Per Foot)
Old Part Number: D04-055C-SLS/900-MIL
Applications
- Ground-tactical cable are ideal for use in harsh environments where deployment and retrieval for reuse is required
Features
- Extremely strong, lightweight, rugged, survivable tight-buffered cables designed for military tactical field use and commercial applications
- Compact, round cable design for ease of transportation and deployment
- Designed for use in adverse environments where reduced size and weight are important
- Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
- Cables have been tested and are in use in military data communications applications worldwide
- Can be used Outdoors for temporary deployment directly on the ground in all terrains, including severe environments
- Suitable for industrial, mining and petrochemical environments - chemical resistant
- Crush-resistant and resilient with a thick layer of aramid strength members
- Polyurethane jacketed for abrasion, cut and chemical resistance
Note: This item may require 24 hours for cut and prep before shipping.
|

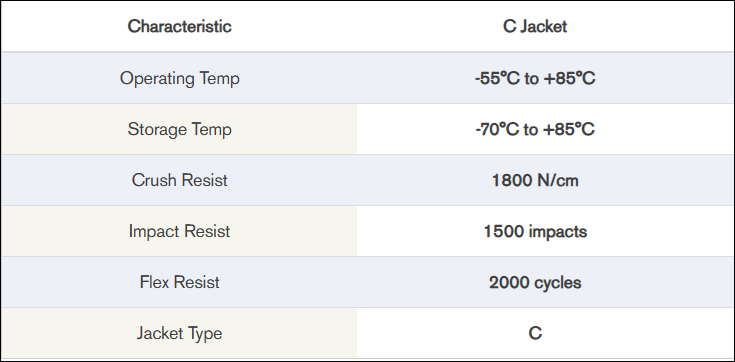

D-Series MIL-TAC |
Operating Temperature |
-55°C to +85°C |
Storage Temperature |
-70°C to +85°C |
Crush Resistance |
440 N/cm |
Impact Resistance |
200 impacts |
Flex Resistance |
2,000 cycles |
These specifications are subject to change without prior notification.
|
