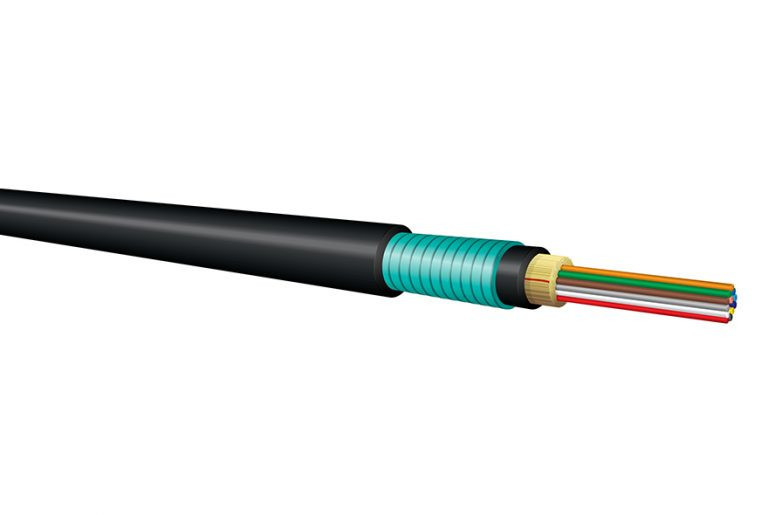

8 Strand, OCC DX Series, Outdoor Burial, CST Armored DX Distribution, Multimode 50/125

Reference Previous Part Number: DX08-060D-ALS/900-CST

Note: This item may require 24 hours for cut and prep before shipping.

Cable Charecteristics: D-Series Distribution Riser Cables

DISTRIBUTION SERIES FIBER OPTIC CABLE TYPE OFNR RISER PRODUCT SPECIFICATIONS

Applications

• Indoor/Outdoor tight-bound tight-buffered design allows cables to be installed in intra-building campus locations without costly transitions between cable types
• Ideal configuration for a single termination point reguiring multiple fibers

Features

• High performance components and construction
• Cable materials are Indoor/Outdoor UL-listed OFNR and UV, water and fungus resistant
• UL Listed in accordance with NEC section 770.179 (b) for use in vertical runs in building riser shafts or from floor to floor
• Wide operating temperature range of -40°C to +85°C
• Helically stranded core for greater flexibility and mechanical protection of the optical fibers
• High strength-to-weight ratio
• 2-144 fiber configuration is smaller and lighter than comparable sub-grouped cables, which is ideal for installation in areas with limited space or tight bends
• Can be armored for additional protection in direct burial and aerial installations
• Interlocking armor can be applied to cables as an alternative to conduit installation

Cost savings

• 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
• No need to splice Outdoor cable to Indoor cable at building entrance
• High crush resistance may eliminate the need for innerduct

Mechanical and Environmental Performance

Note: These specifications are subject to change without prior notification.
