Base Product Data

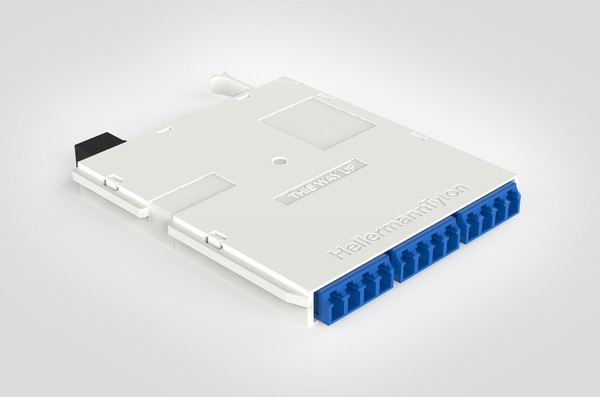

RapidNet Ultra Cassette, 12 fiber, (1) MTP Elite/UPC (Male) to 12 LC/UPC, Singlemode, 9/125um OS2

Product Description:

RapidNet ULTRA12 Cassettes are designed to efficiently transition MTP Backbone assemblies into small form factor (SFF)or very small form factor (VSFF) connectivity. Cassettes are factory terminated and tested offering best in class ultra low loss connectivity for rapid deployment of ULTRA12 fibre systems.

The compact design allows for a ultra high density installations to be realised, maximizing critical connectivity real estate. RapidNet ULTRA12 Cassettes are designed to be compatible with future VSFF connectors such as CS and SN which will take the fibre capacity from 12 fibres (LC) to either 18 fibres (CS) or 24 fibres (SN).

RapidNet ULTRA12 Cassette assemblies are made with 250um Corning® SMF-28® fibres for
Singlemode and ClearCurve ® fibres for Multimode

Features and Benefits:

• High fibre density: LC 12F, CS 18F, SN 24F per cassette
• Singlemode made with Corning® SMF-28 ® Fibres
• Multimode made with Corning® ClearCurve ® Fibres
• Rear MTP Elite connectivity
• Factory terminated & tested
• Best in class ultra low loss connectivity
• Effortless plug & play system
• Signal White RAL 9003
• UL94 V0 compliant

Details:

• Up to 144 LC fibers in 1U of Space
• Significantly reduced installation times
• Available in OM3, OM4, OS2 and OS1
• Dual labeling fields
• Interchangeable with other RapidNet Ultra Cassettes
• MTP rear connector ideal for installations in areas of limited space
• Pre-tested with test results supplied
