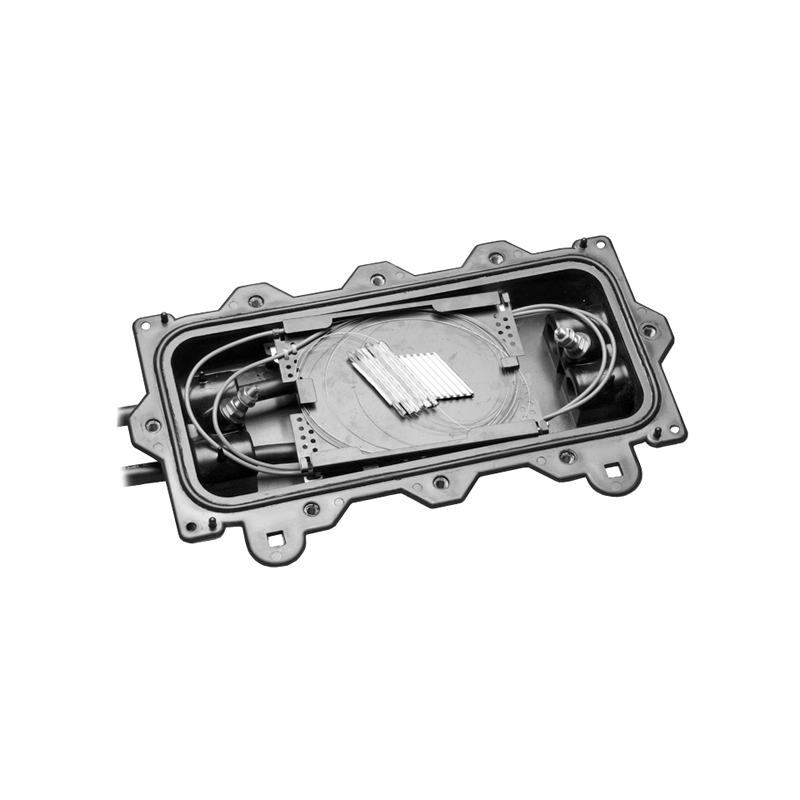

The 1120-F MiniButt Fiber Optic Splice Closure is designed for low count fiber splicing and in areas where space is a constraint. The closure incorporates an integrated gasket to prevent the ingress of water but to allow for ease in access. This unit is supplied with one 1120-SSTA splice tray and has the capacity for one additional tray.
- Supports both Inline or Butt Configurations.
- Lightweight and compact.
- Up to four cable entries with cable OD range of .3 to .63
- Suitable for above or below grade installations.
- Constructed with impact and corrosion resistant materials.
- Integrated F pressure testing valve and grounding lugs.
- Up to 24 single fusion or 48 mass fused fibers.
- RUS Listed
Product Features
Specifications
| Depth | 3 in |
| Length | 15 in |
| Weight | 6 lb |
| Width | 6.5 in |
