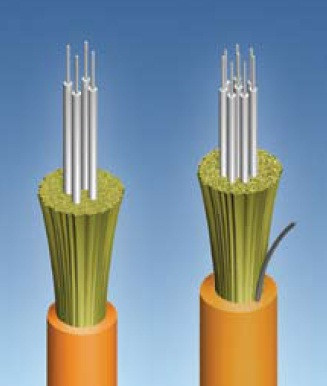

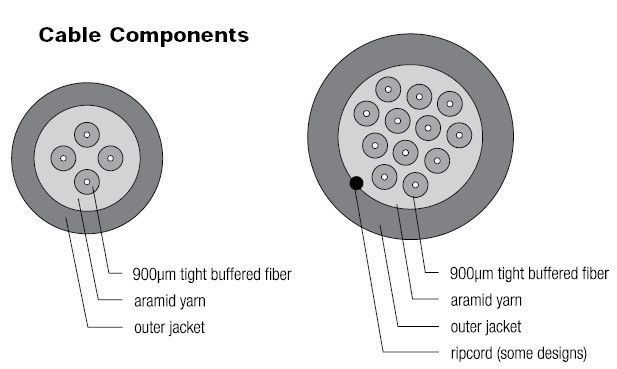

QUAD-Link and single unit Circular Premise Cable designs allow for excellent packaging density, flexibility, and ease of routing. Buffered to 900µm, these cables can be directly terminated into connectors in loaded panels or in communications closets.

Note: This item may require 24 hours for cut and prep before shipping.

• Cable Type:
• CPC
• Part #:
• Plenum:
• CP0125551001
• Fiber Count:
• 12
• Nominal Diameter:
• Inches: 0.22(5.5)
• Weight:
• Plenum:
• Lbs/ 1000ft (kg/km): 20(30)
• Tension:
• Lbs (n):
• Installation: 239(1063)
• Long Term: 119(529)
• Bending Radius:
• Inches (cm):
• Installation: 3.5 (8.3)
• Long Term: 2.5 (5.5)
• Temperature Range:
• Operating/ Installation: Plenum: 0°C to+70°C
• Storage: -40°c to+75°c

Features:

• Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE
• Compliant to Directive 2002/95/EC (RoHS)

Applications:

• Connectorized communications cables with both send-and-receive and send-and-receive backup in a single unit
• Routing between communications closets and equipment rooms
• VSR OC-192/OC-768 Interface based on parallel fiber optics
