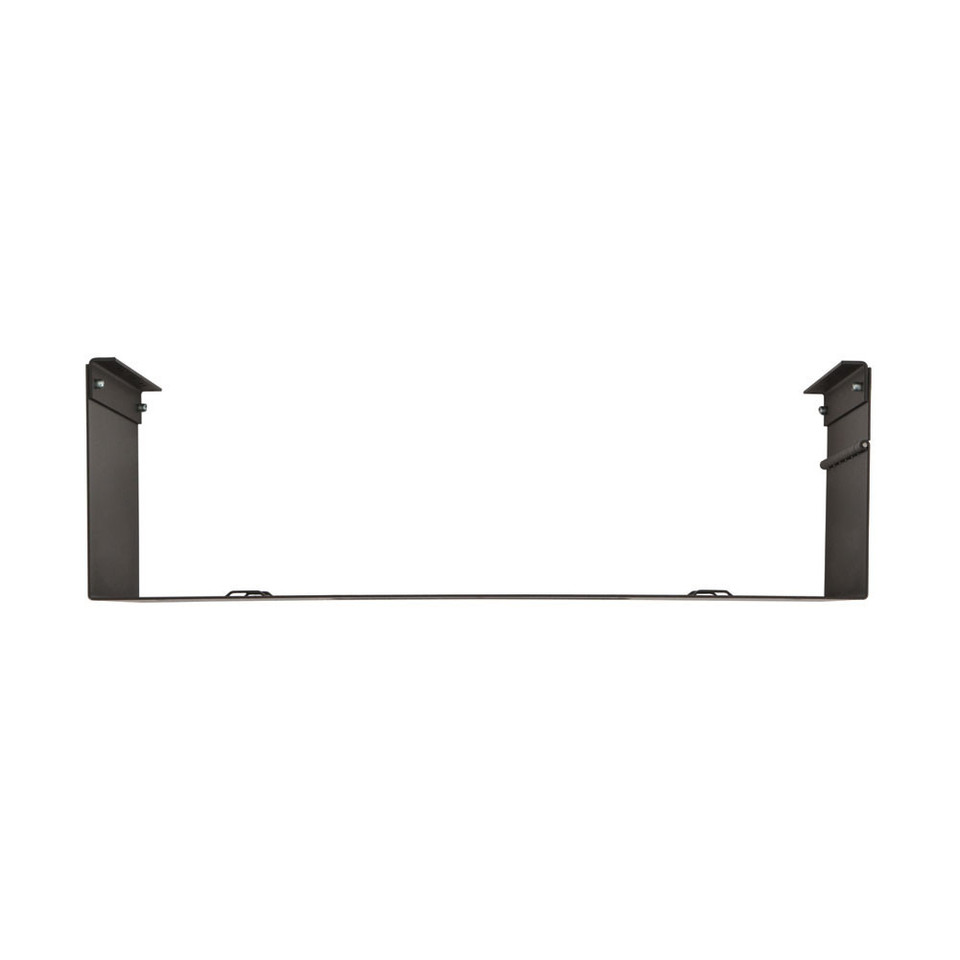

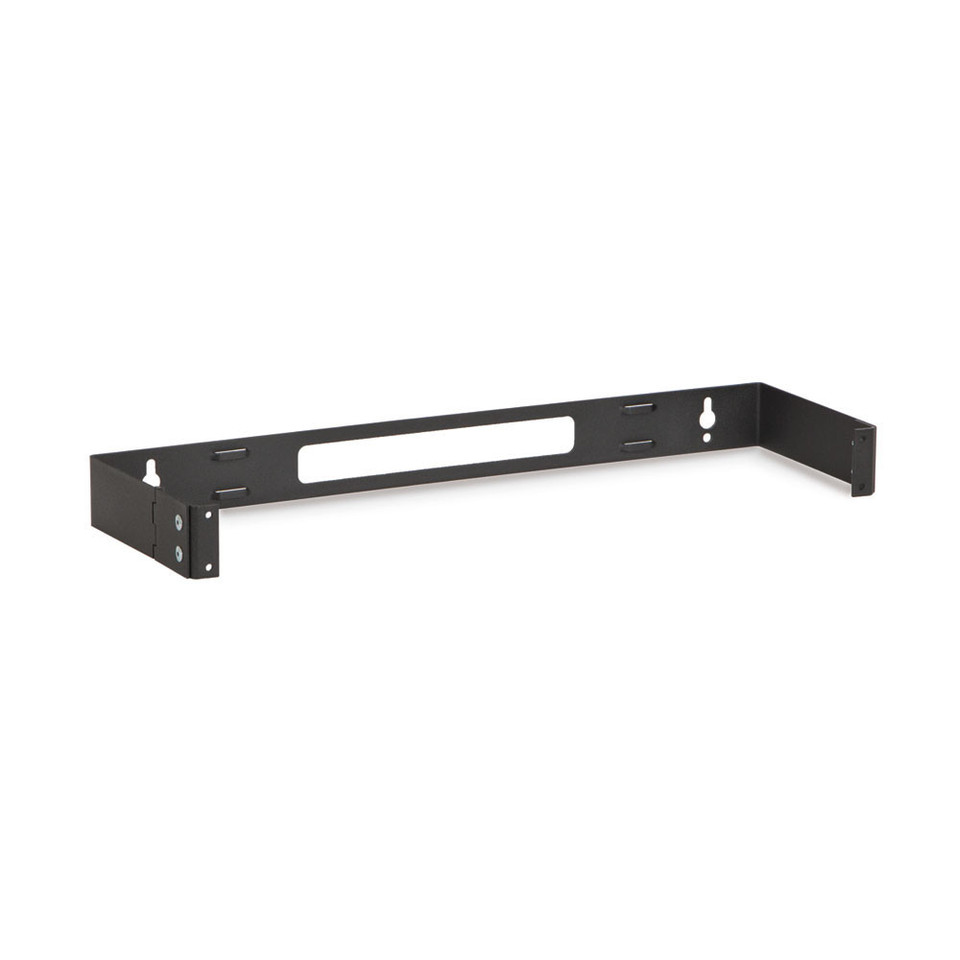

The Kendall Howard 1U Patch Panel Bracket makes mounting patch panels and/or other shallow equipment simple and easy. The unique hinged design allows installed equipment to swing to the left or right 180 degrees for convenient access to the back. These hinged wall mount systems are a fantastic alternative to larger, more expensive solutions that end up wasting space.
Features
- 6" usable depth
- 180 degree swing-out
- 10-32 tapped rails (screws not included)
- 19" EIA 310-D compliant
- Made in the USA
- Limited Lifetime Warranty
Specifications
| Part Number | 1916-3-200-01 |
| Width | 19.25" |
| Depth | 6" |
| Height | 1.75" |
| Weight | 1.50 lbs. |
| Shipping Dimensions | 20" L x 3" W x 7" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| Warranty | Limited Lifetime Warranty |
