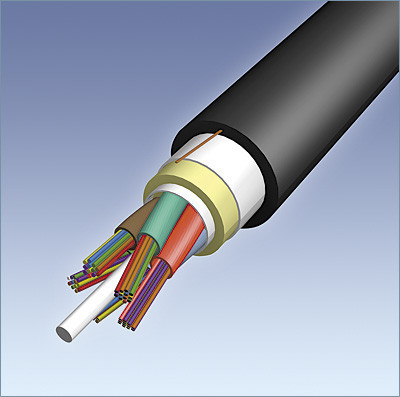

The Mini-Span 424 Cable is a RUS listed product.

Note: This item may require 24 hours for cut and prep before shipping.

• Fiber Count:
• 24
• Fibers Per Tube :
• 12
• Number Of Tubes/Fibers:
• 2 w/12 (3 fillers)
• Part Number:
• Single-Mode: AE0249C520AA4
• Nominal Diameter:
• Inches: 0.424
• Mm: 10.8
• Nominal Weight:
• Lbs/ 1000ft : 57
• (kg/km): 84
• Maximum Lengths:
• Single-Mode
• Feet: 32,800
• Meters: 10,000

Features:

- Dry Core Design
- Typical Spans with 1.0% Installation Sag:

• NESC Heavy 275 ft (84 meters)
• NESC Medium 450 ft (137 meters)
• NESC Light 600 ft (183 meters)

Temperature:

• Operating - 40ºC to + 70ºC
• Storage - 50ºC to + 70ºC
• Installation - 30ºC to + 70ºC
