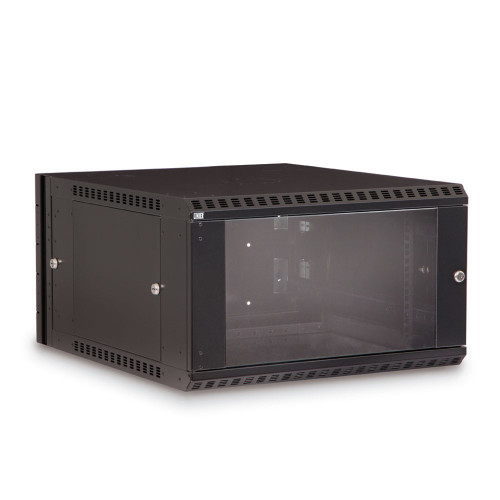

SRK WALL-MOUNT SERIES

The SRK Wall-Mount Series Cabinets offer reliability, value, and versatility in organizing and securing your 19” standard rack-mount servers and networking equipment. These swing-out cabinets feature a hinged back allowing the cabinet to swing open for easy to access to the back section solving the everyday problems technicians have while installing and managing the immense amount of cabling that is common with data and telecommunication equipment. These cabinets come assembled with rails that are field adjustable - square or tapped 12-24, multiple cable management points, a built-in area for a power strip, brushed cable entry, and laser knockouts for adding fans or additional cable entry, lockable side panels, and a locking glass door.

FEATURES

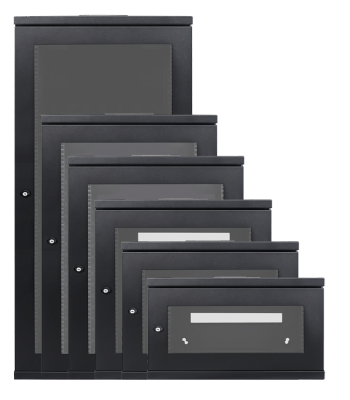

• Available in multiple heights including: 2ft., 3ft., and 4ft.
• Three depths: 12” (300mm), 22” (550mm), and 30” (750mm).
• Removable side panels make for easy moves, adds, and changes (MAC’s).
• Easily integrates with accessories such as power, cooling, and cable management.
• The frame can be separated from the swing-out section for faster set up or maintenance.
• Window door comes standard and is field reversible for left or right swing.
• Lockable side panels for added security.
• Square or tapped 12-24 rails - adjustable front to rear.

PART NUMBERS
These cabinets come fully assembled and include: frame, window front door, side panels, two pair of reversible
mounting rails, and swing-out back panel.
