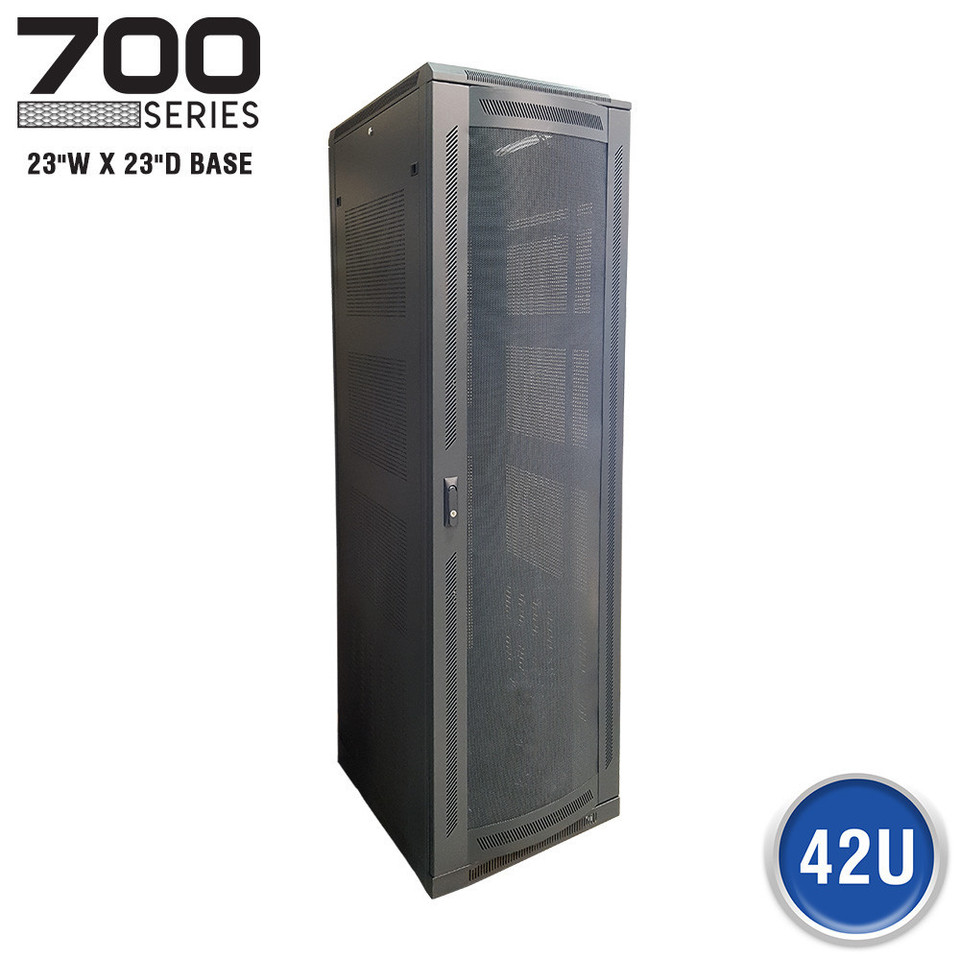

Quest 700 Series Floor Enclosures have a 23″ width by a 23″ depth, featuring a reversible vented steel mesh front door and rear vented split doors for access and ventilation. Ideal for 19” wide mounting on front and rear rails. They come complete with casters, floor levelers, a grounding bus, as well as two 80 CFM boxer fans for ventilation and air flow. These cabinets are constructed of heavy-duty steel, coming in a black powdercoat microfinish. Available assembled or non-assembled in knockdown boxes.
Features
• Ideal for 19ʺ rack mount installations

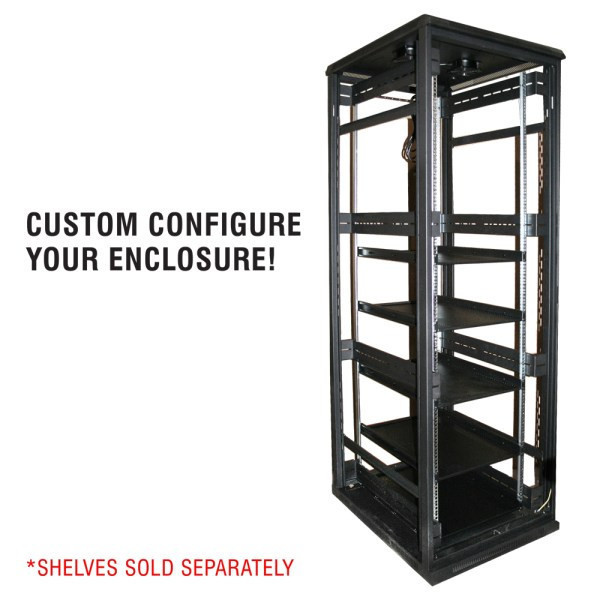

• Adjustable front and rear sets of cage nut rails
• Access equipment from all 4 sides
• Reversible vented steel meshed front door with lock
• Removable vented side panels with key lock
• Rear vented split doors for tight spaces

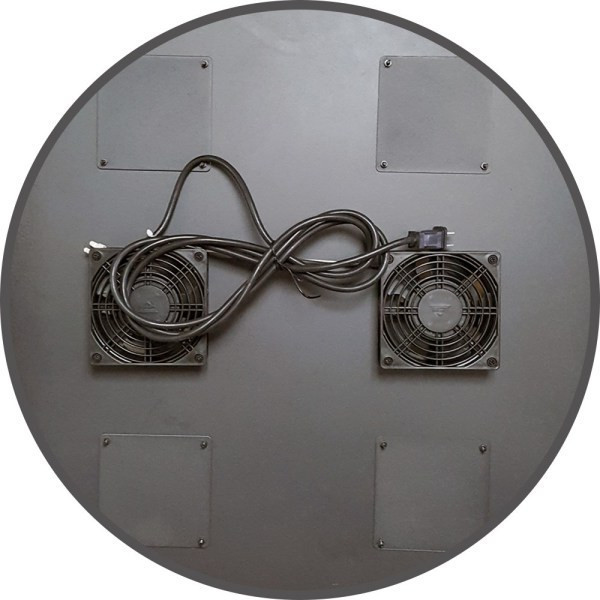

• 2 pre-installed 110VAC 80CFM fans to keep equipment running cool
• Grounding Bus with copper wire for protection

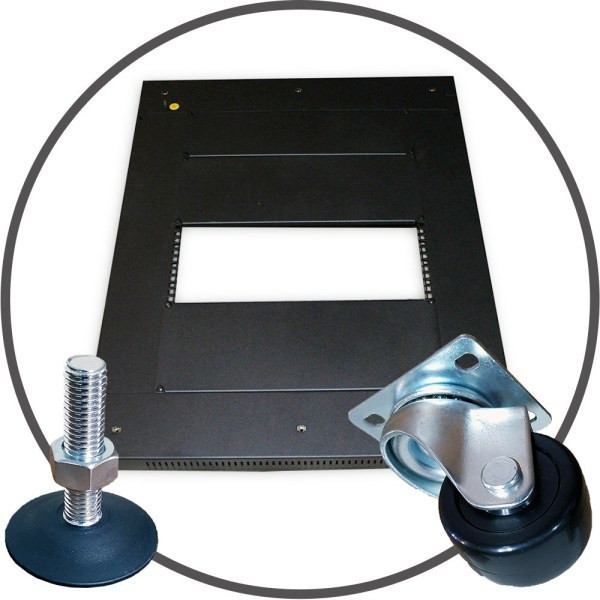

• Complete with floor levelers and locking casters for mobility
• Cable access on top and bottom
• Heavy-Duty reinforced steel structure & fabrication
• Black Powdercoat MicroFinish
• Includes 2 set of keys
• Includes cage nuts, #12-24 mounting screws and washers (30 of each)
• Available in compact “Knockdown” boxes or fully assembled
• Tapped Rails available upon request
• EIA-310D Compliant
Specifications
Color | Black |
Floor Door w/ Lock | Vented Steel Mesh (Reversible) |
Rear Doors w/ Lock | Vented Steel |
Doors & Panel Fabrication | 18 AWG Steel |
Base & Structure | 16 AWG Steel |
Load Capacity | 1400 lbs |
Ventilation | 2 Fans (80CFM 110V) |
Cable Access | Top Cutouts & Bottom Panels |
Cage Nuts, Screws & Washers | 30 each |
# of Mounting Rails | 4 (2 sets) |
Ground Bus Bar w/ Wire | Included |
Casters & Leveling Feet | Included |
Keys | Included |
Exterior Dimension | 84″H x 23″W x 23″D |
Overall Weight | 209 lbs |
Interior Dimension | 74″H x 19″W x 19.5″D |
Shipping Dimension (Assembled) |
28″L x 26″W x 87″H |
Shipping Dimension (Unassembled) | 25″L x 24.25″W x 5.75″H 77.75″L x 24.25″W x 8″H |
Shipping Weight | 223 lbs |
