Quest 700 Series Floor Enclosures have a 23″ width by a 23″ depth, featuring a reversible vented steel mesh front door and rear vented split doors for access and ventilation. Ideal for 19” wide mounting on front and rear rails. They come complete with casters, floor levelers, a grounding bus, as well as two 80 CFM boxer fans for ventilation and air flow. These cabinets are constructed of heavy-duty steel, coming in a black powdercoat microfinish. Available assembled or non-assembled in knockdown boxes.
Features
Color | Black |

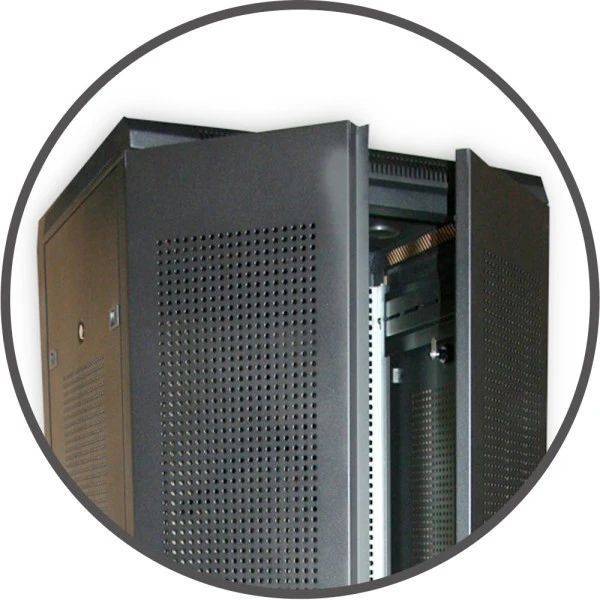

Floor Door w/ Lock | Vented Steel Mesh (Reversible) |
Rear Doors w/ Lock | Vented Steel |
Doors & Panel Fabrication | 18 AWG Steel |
Base & Structure | 16 AWG Steel |
Load Capacity | 1400 lbs |
Ventilation | 2 Fans (80CFM 110V) |
Cable Access | Top Cutouts & Bottom Panels |
Cage Nuts, Screws & Washers | 30 each |
# of Mounting Rails | 4 (2 sets) |
Ground Bus Bar w/ Wire | Included |

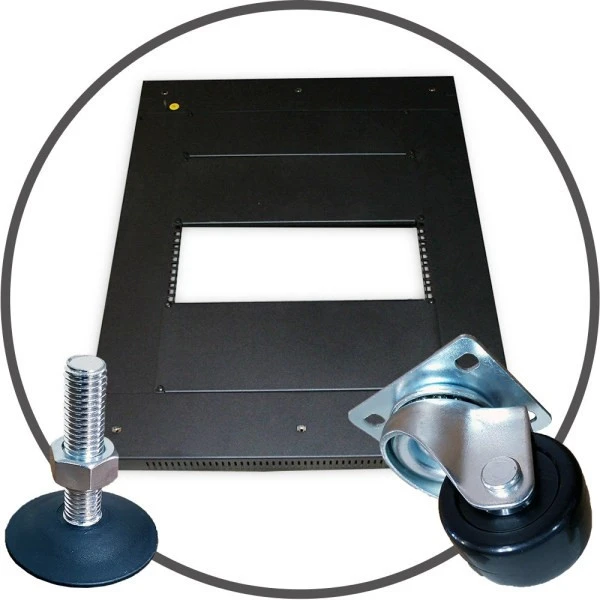

Casters & Leveling Feet | Included |
Keys | Included |
Exterior Dimension | 88″H x 23″W x 23″D |
Overall Weight | 215 lbs |
Interior Dimension | 79″H x 19″W x 19.5″D |
Shipping Dimension (Assembled) |
28″L x 26″W x 91″H |
Shipping Dimension (Unassembled) | 25″L x 24.25″W x 5.75″H 83″L x 24.25″W x 8″H |
Shipping Weight | 229 lbs |
