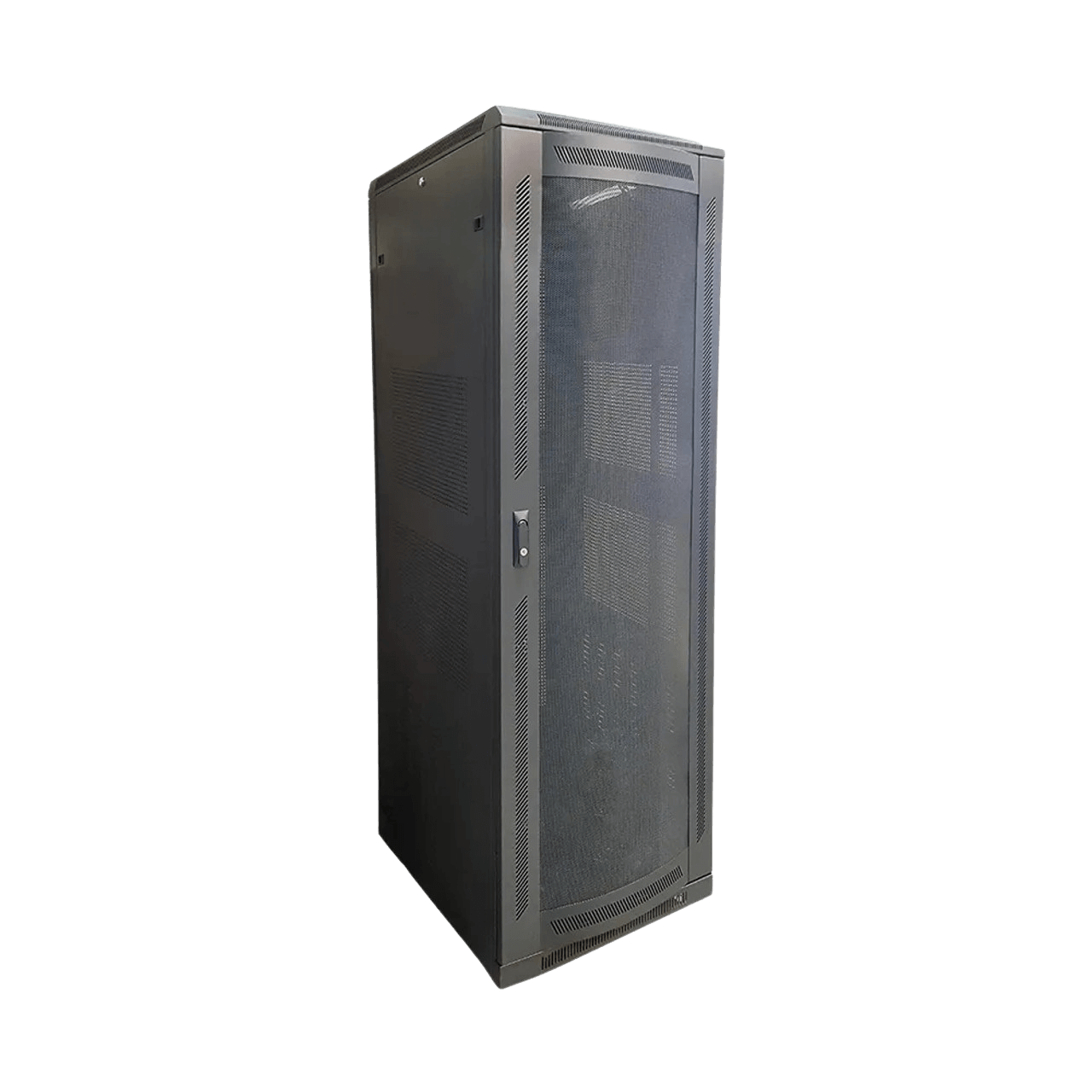

710 Series, 34U, Floor Enclosure W/ Mesh Door – 23″W X 31″D

710 Series, 34U, Floor Enclosure W/ Mesh Door – 23″W X 31″D

List Price: $1,614.76
(You save $448.54 )
216.00 LBS
Customer Service

Need Help?

Speak to one of our experts.

FE7119-34-02 - Quest Mfg. 710 Series Floor Enclosure - FE7119-34-XX

710 Series, 34U, Floor Enclosure W/ Mesh Door – 23″W X 31″D

List Price: $1,614.76
(You save $448.54 )

710 Series, 34U, Floor Enclosure W/ Mesh Door – 23″W X 31″D

List Price: $1,614.76
(You save $448.54 )


Our 710 series 19'' mount floor cabinets feature a wide access and 32'' deep design for applications where deep dimensional equipment mounting requirements and complex internal wire management are needed. Available in 5', 6' or 7', these enclosures are manufactured to ANSI/EIA RS310-D standards. All 710 series enclosures feature 4 fully adjustable internal equipment cage nut rails and 2 pre-installed 80 CFM fans.


Quest 710 Series Floor Enclosures have a 23″ width by a 31″ depth, featuring a reversible vented steel mesh front door and rear vented split doors for access and ventilation. Ideal for 19” wide mounting on front and rear rails. They come complete with casters, floor levelers, a grounding bus, as well as two 80 CFM boxer fans for ventilation and air flow. These cabinets are constructed of heavy-duty steel, coming in a black powdercoat microfinish. Available assembled or non-assembled in knockdown boxes.


• Ideal for 19ʺ rack mount installations
• Adjustable front and rear sets of cage nut rails
• Access equipment from all 4 sides
• Reversible vented steel meshed front door with lock
• Removable vented side panels with key lock
• Rear vented split doors for tight spaces
• 2 pre-installed 110VAC 80CFM fans to keep equipment running cool
• Grounding Bus with copper wire for protection
• Complete with floor levelers and locking casters for mobility
• Cable access on top and bottom
• Heavy-Duty reinforced steel structure & fabrication
• Black Powdercoat MicroFinish
• Includes 2 set of keys
• Includes cage nuts, #12-24 mounting screws and washers (30 of each)
• Available in compact “Knockdown” boxes or fully assembled
• Tapped Rails available upon request
• EIA-310D Compliant


Color Black
Floor Door w/ Lock Smoked Acrylic (Reversible)
Rear Doors w/ Lock Vented Steel
Doors & Panel Fabrication 18 AWG Steel
Base & Structure 16 AWG Steel
Load Capacity 1400 lbs
Ventilation 2 Fans (80CFM 110V)
Cable Access Top Cutouts & Bottom Panels
Cage Nuts, Screws & Washers 30 each
# of Mounting Rails 4 (2 sets)
Ground Bus Bar w/ Wire Included
Casters & Leveling Feet Included
Keys Included


Exterior Dimension 69″H x 23″W x 31″D
Overall Weight 204 lbs
Interior Dimension 59″H x 17″W x 27.5″D
Shipping Dimension (Assembled)
33″L x 26″W x 72″H
Shipping Dimension (Unassembled) 25″L x 32″W x 5.75″H
63.75″L x 26.5″W x 9.25″H
Shipping Weight 204 lbs
