740 Series, 45U, Floor Enclosure W/ Mesh Door – 27″W X 42″D

740 Series, 45U, Floor Enclosure W/ Mesh Door – 27″W X 42″D

Item#:
FE7419-45-02K
List Price: $2,304.33
$1,664.24
(You save $640.09 )
UPC:
800118022402
Weight:
330.00 LBS
Customer Service

Need Help?

Speak to one of our experts.

740 Series, 45U, Floor Enclosure W/ Mesh Door – 27″W X 42″D

740 Series, 45U, Floor Enclosure W/ Mesh Door – 27″W X 42″D

List Price: $2,304.33
$1,664.24
(You save $640.09 )

740 Series, 45U, Floor Enclosure W/ Mesh Door – 27″W X 42″D

List Price: $2,304.33
$1,664.24
(You save $640.09 )

45 RMS FLOOR ENCLOSURE W/ VENTED MESH DOOR – 740 SERIES (27″W X 42″D)

  • Mesh front door design for airflow and heat dissipation.
  • Vented on all pannels for excellent air circulation characteristics.
  • Top panel features cutouts for fans and cutouts for cable access.
  • Platform features cutouts for cable access.
  • Features 4 fully adjustable internal equipment cage nut rails for #12-24 mounting screws in EIA universal spacing.
  • Comes packaged complete with front door, rear and side panels, leveling feet, casters, grounding bus bar, 2 pre-installed 80 CFM fans and equipments screws.
  • Reversible front door.
  • Each enclosure supplied with cage nut hardware set.
  • Meets or exceeds EIA 310D standards.
  • Electrostatic microfinish paint.
  • Fully assembled and unassembled options available.
OVERVIEW

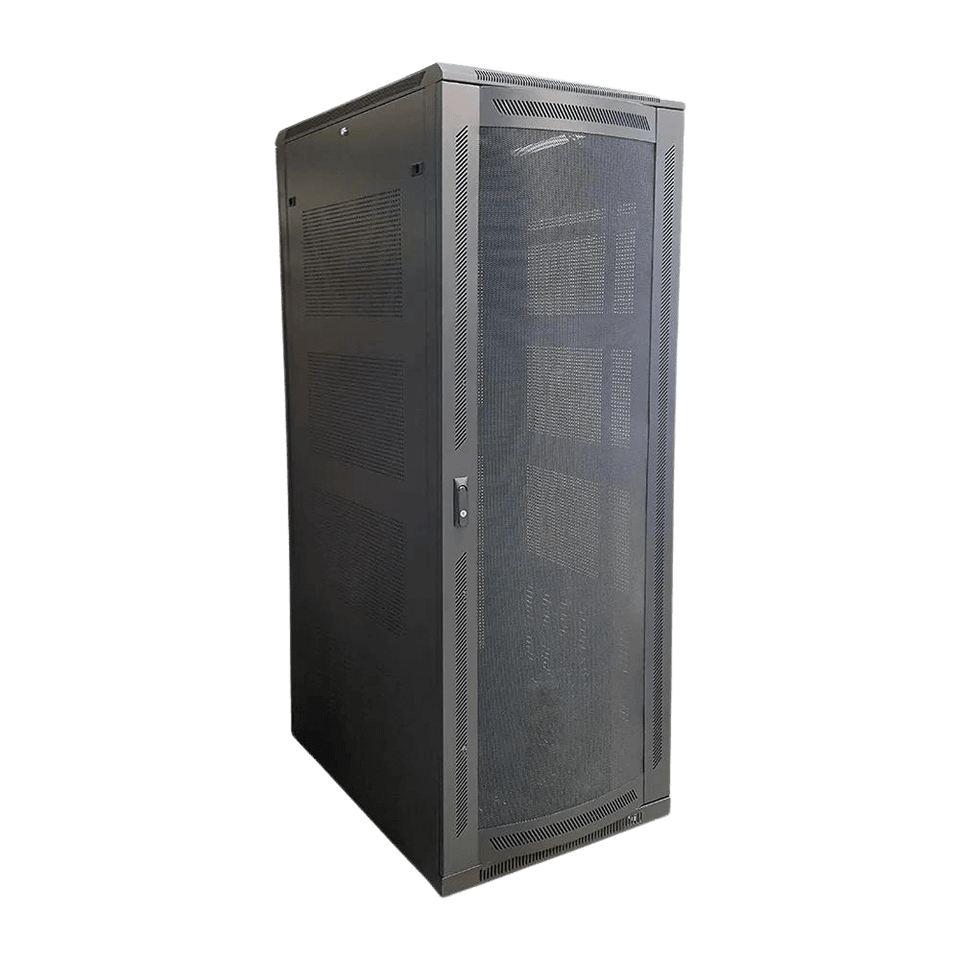

Quest’s largest enclosures, the 740 Series Floor Enclosures, have a 27″ width by 42″ depth. The series features a reversible vented steel mesh front door, and rear vented split doors for access and ventilation. The rack has a large spacious interior from the outer panels, making it ideal for 19” wide mounting on front and rear adjustable rails. They come complete with casters, floor levelers, a grounding bus, as well as two 80 CFM boxer fans for ventilation and air flow. These cabinets are constructed of heavy-duty steel, coming in a black powdercoat microfinish. Available assembled or non-assembled in knockdown boxes.

Features

• Ideal for 19ʺ rack mount installations

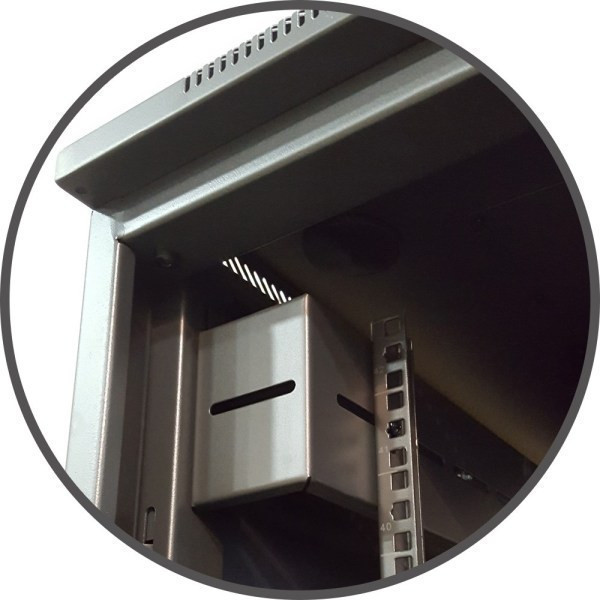

• Adjustable front and rear sets of cage nut rails
• Access equipment from all 4 sides
• Reversible vented steel meshed front door with lock
• Removable vented side panels with key lock
• Rear vented split doors for tight spaces
• Spacious interior between rack and outer panels
• 2 pre-installed 110VAC 80CFM fans to keep equipment running cool
• Grounding Bus with copper wire for protection

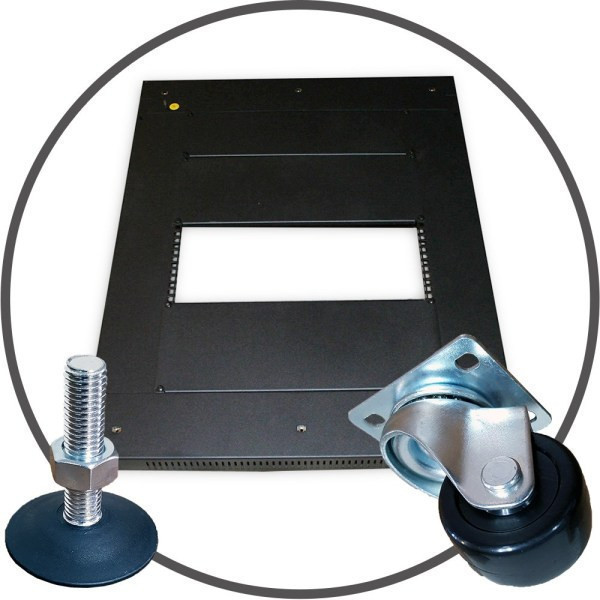

• Complete with floor levelers and locking casters for mobility
• Cable access on top and bottom
• Heavy-Duty reinforced steel structure & fabrication
• Black Powdercoat MicroFinish
• Includes 2 set of keys
• Includes cage nuts, #12-24 mounting screws and washers (30 of each)
• Available in compact “Knockdown” boxes or fully assembled
• Tapped Rails available upon request
• EIA-310D Compliant

Specifications

Color Black
Floor Door w/ Lock Vented Steel Mesh (Reversible)
Rear Doors w/ Lock Vented Steel
Doors & Panel Fabrication 18 AWG Steel
Base & Structure 16 AWG Steel
Load Capacity 1400 lbs
Ventilation 2 Fans (80CFM 110V)
Cable Access Top Cutouts & Bottom Panels
Cage Nuts, Screws & Washers 30 each
# of Mounting Rails 4 (2 sets)
Ground Bus Bar w/ Wire Included
Casters & Leveling Feet Included
Keys Included



Exterior Dimension 47″H x 29″W x 91″D
Overall Weight 330 lbs
Interior Dimension 79″H x 19″W x 37.5″D
Shipping Dimension (Assembled)
47″L x 29″W x 91″H
Shipping Dimension (Unassembled) 28.25″L x 43″W x 5.75″H
83.5″L x 28.25″W x 9.5″H
83.5″L x 36.75″W x 2.5″H
Shipping Weight 330 lbs
