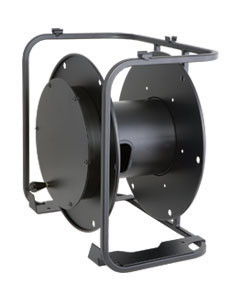

AV3 - Portable Cable Storage Reels
Broadcast Cable / Audio Cable / Extension Cord / Rope
For fast rollout and storage
- Broadcast and pro-audio applications. Reels are stackable and have side mounted connector panels.
- Rugged steel and aluminum construction throughout. Square tubing frame.
- Black, non-reflective matte finish.
- Removable side panel (blank panel is supplied as standard).
- Standard strain relief inside panel compartment.
- Frame clips allow stacking.
- Ergonomic carrying handles.
- Adjustable cam-lock drag brake.

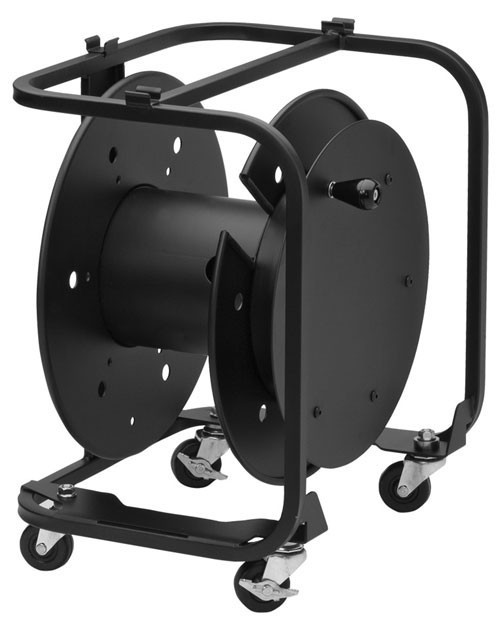

- Optional heavy-duty locking caster wheels (set includes 2 locking and 2 non-locking casters).
- Optional Folding Pull Handle, available on AV-2 reel (P/N 9949-0072).
Note: Hannay Reels are made to order at time of purchase and normally have a 5-7 day lead time.
Product Features
| Cable Capacity |
| O.D. |
8mm
(.32") |
10mm
(.38") |
10mm
(.41") |
11mm
(.45") |
12mm
(.49") |
15mm
(.58") |
| Feet |
700 |
450 |
375 |
325 |
275 |
175 |
| Meters |
213 |
137 |
114 |
99 |
84 |
53 |
Specifications
| Reel Dimensions (Inches) |
| A |
B |
C |
D |
E |
F |
G |
H |
| 12.82 |
7 |
6 |
16 |
15 |
13.5 |
16.88 |
7.88 |
Note: Acual weight of reel without cable is approximately 23 lbs. Dimensional weight (listed above) applies when shipped as a parcel package.
| |
