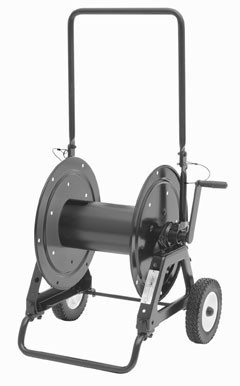

These direct crank rewind reels are equipped with one-piece foot, and removable steel handlebar for long-term storage and shipping.
- Cam-lock brake is standard.
- A non-reflective black matte finish is standard.
- For compact storage, optional folding handle or removable crank handle are available.
- Optional divider discs are available.
- Hard Rubber tires and a 7/8" x 1 3/4" (22.2 mm x 44.4 mm) opening in the drum.
Note: Hannay Reels are made to order at time of purchase and normally have a 5-7 day lead time.
Product Features
| Cable Capacity - AVC1150 | ||||||
| O.D. | 10mm (.38") |
10mm (.41") |
11mm (.45") |
12mm (.49") |
15mm (.58") |
17mm (.67") |
| Feet | 950 | 800 | 700 | 575 | 425 | 250 |
| Meters | 290 | 244 | 213 | 175 | 130 | 76 |
Specifications
| REEL DIMENSIONS (inches) | |||||||
| A | B | C | D | E | F | G | H |
| 21.5 | 12 | 6 | 22 | 16.5 | 24.25 | 39 | 13.81 |
Note: Acual weight of reel without cable is approximately 34 lbs. Dimensional weight (listed above) applies when shipped as a parcel package.
|
