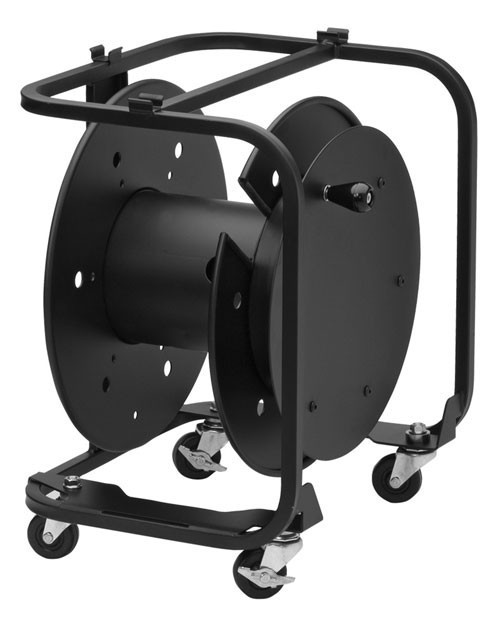

Hannay Reels - AVD-3 Portable Cable Storage Reels with Slotted Divider Discs.
Broadcast Cable / Audio Cable / Camera Cable / Extension Cord / Rope
- Communication, broadcast, and pro-audio applications.
- Rugged steel frame and aluminum spool construction.
- Black, non-reflective matte finish.
- Slotted divider disc provides 2" wide space for storage of short cable.
- Unobstructed access to both cable connector ends with slotted divider disc.
- Frame clips allow stacking of reels.
- Ergonomic carrying handle.
- Adjustable cam-lock drag brake locks cable in place.
- Equipped with two durable rubber twist ties for cable ends.
- Optional Folding Pull Handle, available on AVD-2 reel (P/N 9949-0072).
Made in the USA, Note: Hannay Reels are made to order at time of purchase and normally have a 5-7 day lead time.
Product Features
| Cable Capacity | ||||||
| O.D. | 8mm (.32") |
10mm (.38") |
10mm (.41") |
11mm (.45") |
12mm (.49") |
15mm (.58") |
| Feet | 700 | 500 | 400 | 350 | 300 | 175 |
| Meters | 213 | 152 | 122 | 107 | 91 | 53 |
| Reel Dimensions (Inches) | ||||||||
| A | B | B1 | C | D | E | F | G | H |
| 12.82 | 7 | 2 | 6 | 16 | 15 | 13.5 | 16.88 | 7.88 |
Note: Acual weight of reel without cable is approximately 17 lbs. Dimensional weight (listed above) applies when shipped as a parcel package.
|
