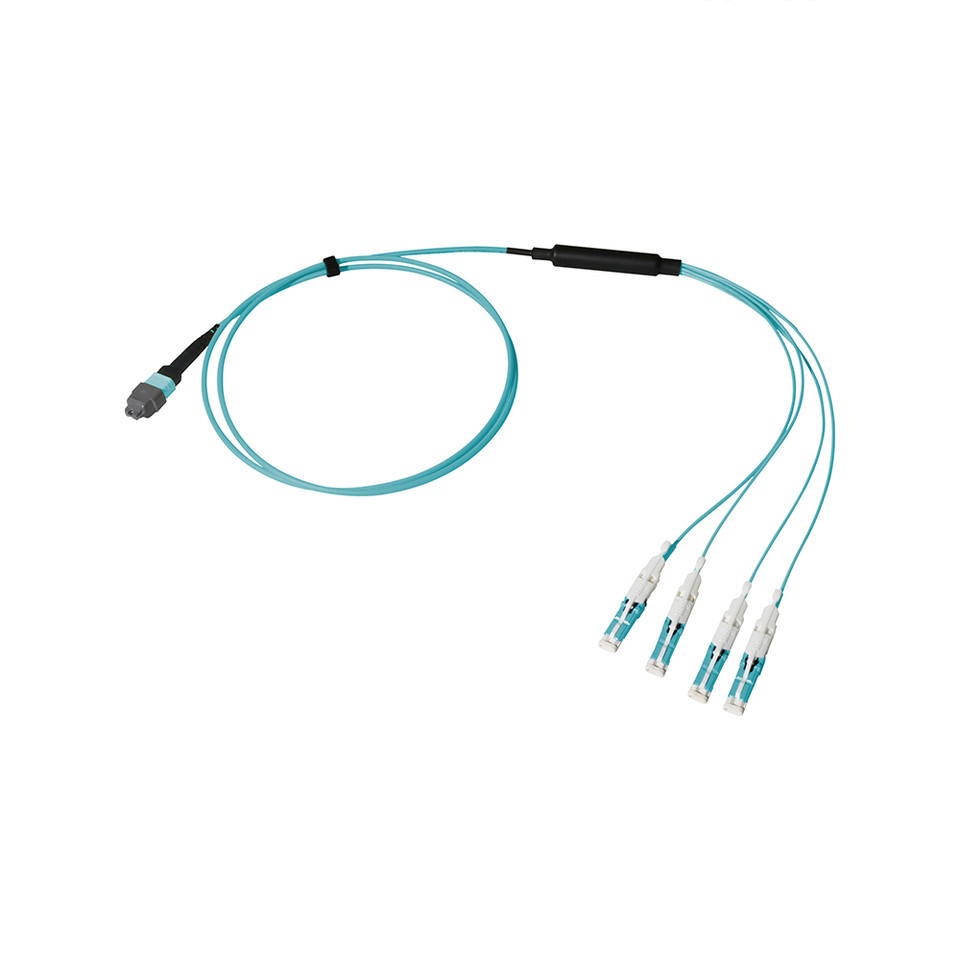

Breakout Cable, MTP® Elite/UPC to CS, OM3 Multimode 50/125 Micron, 8 Fiber

List Price: $107.80

$71.87

(You save $35.93 )

Description
Downloads

Description

MTP®/MPO Fanout Cable Assemblies

MTP® Elite Female to Senko CS Connectors, 8 Strand, Corning Clear Curve Multimode 50/125 Micron, OM4, OFNP Aqua Jacket

MTP^® Connectors

US Conec offers a full suite of MTP^® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP^® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

CS/UPC Connector

The Original CS® Standard connector design offers exceptional performance at an economical price. The CS is a Very Small Form Factor (VSFF) connector and is ideal for space-saving solutions. The CS connector allows you to double the density in patch panels compared to an LC duplex. It offers the ability to add more room for cable management as well as better airflow within a rack. The unique push-pull tab allows for better usability in high-density applications. The connector accepts up to 2.0/3.0mm duplex fiber. The connector has been adopted by QSFP-DD, OSFP, and COBO, Standardized by TIA.

Precision Optical Components

At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component. US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind. Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.

Precision optical interconnect solutions include:

Low-loss, MT Elite® multi-fiber ferrules
Senko CS Connector
FTTx hardened connector cabling infrastructure
MTP® brand MPO cable assemblies
Optical backplane connectivity for OBO architectures
Standards Compliance IEC 61754-5
Standards Compliance IEC 61754-7-1; 61754-7-2
Standards Compliance TIA 604-5

Precision Optical Components

Precision optical interconnect solutions include:

Low-loss, MT Elite® multi-fiber ferrules
Senko CS Connector
FTTx hardened connector cabling infrastructure
MTP® brand MPO cable assemblies
Optical backplane connectivity for OBO architectures
Standards Compliance IEC 61754-5
Standards Compliance IEC 61754-7-1; 61754-7-2
Standards Compliance TIA 604-5

Specifications

Simplex 3.0mm cable
50/125um OM3 Corning ClearCurve Glass
Plenum-Rated OFNP Aqua Jacket
8-Fiber count
Nominal Diameter: 3.0mm
40G SR4 (4X10G) 8 Fiber
100G SR4 (4X25G) 8 Fiber
200G SR4 500 Meter (4X100G) 8 Fiber
400G SR4 (4X100G) 8 Fiber
Bend Radius: 1.8in (Installation), 1.2in (Long-term)

Connector Side A	MTP/UPC Elite Low Loss 8 Fiber	Connector Side B	(4) Senko CS
Ferrule Type Side A		Ferrule Type Side B
Insertion Loss Maximum Side A	≤0.35dB	Insertion Loss Maximum Side B	≤0.20dB
Insertion Loss Typical	0.10dB	Insertion Loss Typical	0.08dB
Return Loss	≥0dB	Return Loss	≥0dB
===============	====================	==================	==================
Cable Type	OM3 50/125μm	Wavelength	850/1300nm
Fiber Count	8	Fiber Grade
Polarity	Type A, B & C available	Cable Outer Diameter	3.0mm
Cable Jacket	OFNP Plenum	Sub Unit Outer Diameter	N/A
Bend Radius, No Load	10x cable overall diameter	Bend Radius, Load	15x cable overall diameter
===============	====================	==================	==================
1 GbE Distance Max.	10 GbE Distance Max.	40 GbE Distance Max.	100 GbE Distance Max.
1,100 Meters	300 Meter	100 Meter	100 Meter
===============	====================	==================	==================
Operating Temperature	0° to 70°C (32° to 158°F)	Storage Temperature	-40° to 70°C (-40° to 158°F)
