Figure-8 Self Supporting 4 Fiber 62.5/125μm OM1 Ultra-Fox™ 1/4" Galvanized Steel Messenger Black Jacket (Priced Per Foot)

click to zoom in
Figure-8 Self Supporting 24 Fiber 62.5/125μm OM1 Ultra-Fox™ 1/4" Galvanized Steel Messenger Black Jacket

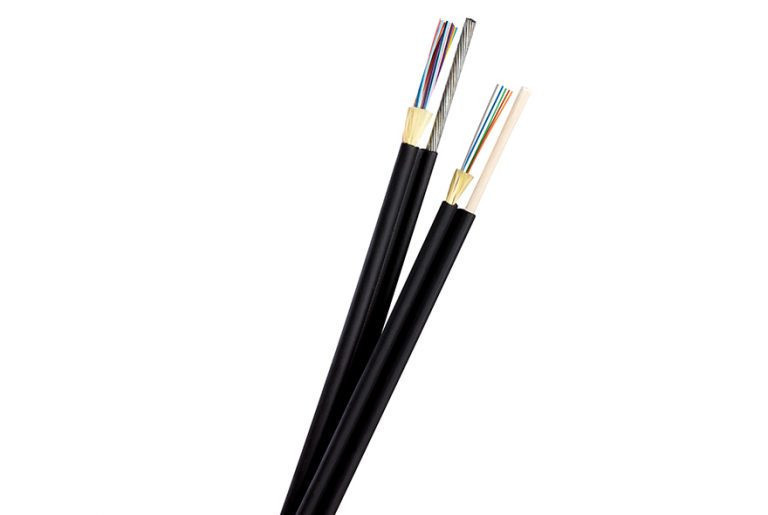

Figure-8 Self Supporting 24 Fiber 62.5/125μm OM1 Ultra-Fox™ 1/4" Galvanized Steel Messenger Black Jacket - View 2
Figure-8 Self Supporting 24 Fiber 62.5/125μm OM1 Ultra-Fox™ 1/4" Galvanized Steel Messenger Black Jacket - Cut Away View

Figure-8 Self Supporting 4 Fiber 62.5/125μm OM1 Ultra-Fox™ 1/4" Galvanized Steel Messenger Black Jacket (Priced Per Foot)

Item#:
MX004AWLS9KAG3
List Price: $5.55
$4.16
(You save $1.39 )
Weight:
0.19 LBS
Minimum Purchase:
1000 units
Customer Service

Need Help?

Speak to one of our experts.

Phone Icon

804-716-9007

Figure-8 Self Supporting 24 Fiber 62.5/125μm OM1 Ultra-Fox™ 1/4" Galvanized Steel Messenger Black Jacket

Figure-8 Self Supporting 4 Fiber 62.5/125μm OM1 Ultra-Fox™ 1/4" Galvanized Steel Messenger Black Jacket (Priced Per Foot)

List Price: $5.55
$4.16
(You save $1.39 )
Description

MX-Series – Figure-8 Messenger Cables

Installation zone RECOMMENDATION

MX-Series – Figure-8 Messenger Cables - Installation zone RECOMMENDATION

Outdoor aerial installations along utility poles for cable television, telecom or other outside plant campus backbone applications without the need for cable lashing

Features

  • Figure-eight construction for use with standard messenger clamping and support hardware
  • Ideal for new installations; the figure-eight messenger cable reduces installation time and cost by approximately 50% compared to separate installation of a messenger wire and the lashing of the cable to the messenger
  • Wide operating temperature range of -40°C to +85°C
  • 1/4-inch galvanized messenger standard
  • Polyethylene outer cable jacket for excellent UV and weather resistance
  • Designed to the NESC requirements for light, medium and heavy storm loads                              *All-dielectric messenger available upon request

Standards

OCC figure-eight tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • ICEA-S-87-640
  • TIA-568
  • TIA-598



1
1
1
1

Outdoor aerial installations along utility poles for cable television, telecom or other outside plant campus backbone applications without the need for cable lashing

Downloads
MX004AWLS9KAG3.pdf
OCC-206-7_Installation-Figure_8_Guidelines_Rev_A-1.pdf
