MT38999 Connectors: The Complete Guide for Defense and Aerospace Engineers

Born from the need to withstand severe mechanical shock, heavy vibration, thermal extremes, and corrosion in mid-century tactical aerospace environments, MIL-DTL-38999 connectors have become the standard for harsh-environment reliability over more than 50 years of service. A defining milestone in that evolution is the high-density, multi-channel fiber optic variant – the MT38999.

MT38999 connectivity delivers the optical bandwidth needed for mission-critical data transfer across defense systems, avionics, naval platforms, oil and gas exploration, and industrial automation. Let’s take a closer look at MT38999 connectors, where they’re used, and why engineering teams rely on them for mission-critical links.

What are MT38999 Connectors?

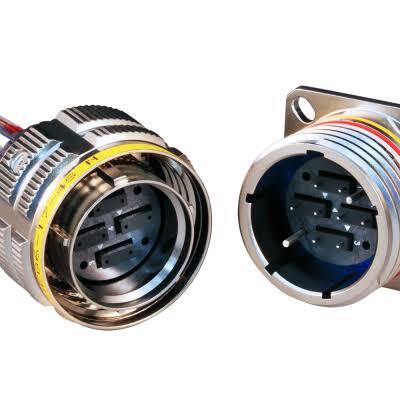

Often referred to as the “MT38 triple-9,” the MT38999 combines the rugged mechanical shell of MIL-DTL-38999 Series III circular connectors with precision mechanical transfer (MT) ferrule technology that underpins modern multi-fiber networking.

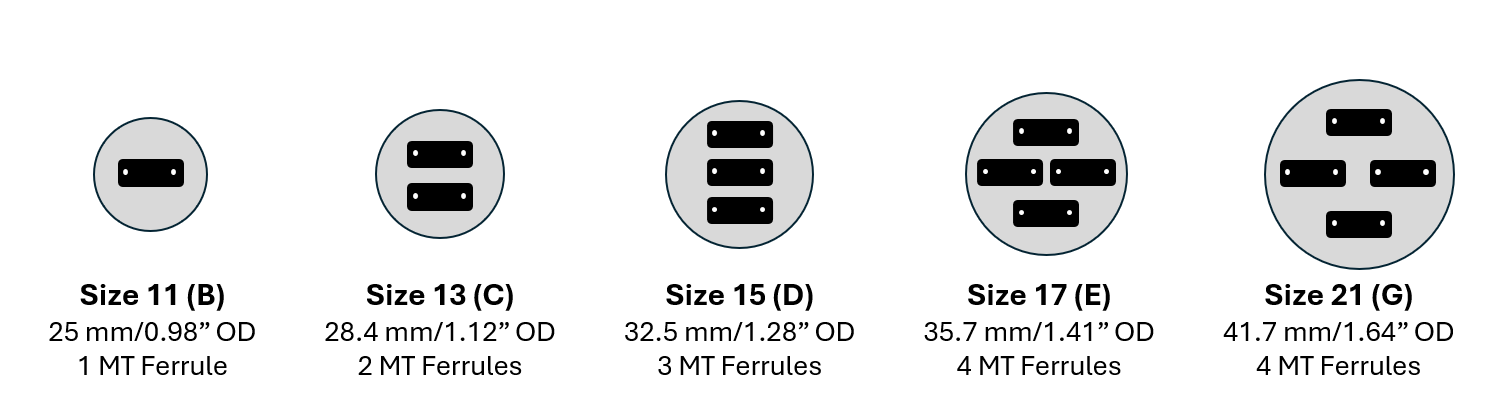

MT38999 connectors leverage the D38999 durable outer-shell platform to place singlemode or multimode fiber endfaces deep within the housing for superior protection. The outer shell comes in a variety of sizes to accommodate up to 4 MT ferrules, scaling total fiber counts up to 192 fibers, depending on the ferrule density — 12, 24, or 48 fibers pre ferrule. The most common shell sizes for MT38999 connectors include:

• Shell Size 11 (B): Houses a single MT ferrule
• Shell Size 13 (C): Houses 2 MT ferrules
• Shell Size 15 (D): Houses 3 MT ferrules
• Shell Size 21 (G): Houses 4 MT ferrules

For space-constrained environments, MT38999 connectors are also available in a compact shell Size 17 (E) that features a smaller overall footprint. These variants use ultra-precise, tight tolerances to pack four MT ferrules into a smaller profile.

To meet various thermal, weight, and environmental requirements, the MT38999 connector shell is available in aluminum, composite, and stainless steel, with plating options that include electroless nickel, zinc-nickel, nickel-fluorocarbon polymer (PTFE), tin-zinc, and military-standard olive drab cadmium.

Where are MT38999 Connectors Used?

MT38999 connectors are engineered for use in severe, mission-critical operating environments where failure is not an option. While recognized as the standard for all military defense and aerospace applications, they are also deployed across several heavy commercial industries.

Key locations and applications for MT38999 connectors include:

• Avionics and flight management systems: Links core flight control systems to remote sensors and actuators while streaming high-definition video and navigation data to primary flight displays.
• Defense and electronic warfare: Provides high-bandwidth, secure communications for electronic intelligence systems, unmanned aerial vehicles/drones, and missile guidance systems, including video surveillance and thermal imaging.
• Tactical communications: Forms the rugged optical backbone for field command, control, and reconnaissance communications across tactical mobile bases, ground forces, and armored vehicles.
• Radar, sonar, and sensor processing: Transmits massive streams of raw data from antennas, satellites, sonar, video, and sensor arrays to central processing units on modern combat aircraft, naval vessels, and mobile defense vehicles.
• Industrial automation and manufacturing: Delivers high-bandwidth, real-time telemetry and control data for robotics and automated assembly, machine vision inspection, monitoring systems, remotely operated vehicles, subsea drilling, and heavy mining machinery.

What are the benefits of MT38999 Connectors?

Engineering teams specify high-density multi-channel MT38999 connectors for high-bandwidth data transmission in extreme, mission-critical environments due to several performance advantages:

• High fiber density: Accommodates 12-, 24-, or 48-fiber MT ferrules, delivering up to 48 optical channels in a compact Size 11 shell and up to 192 channels in a Size 21 shell.
• Weight and space savings: Eliminates the need for multiple bulky connectors and heavy copper connectivity, yielding significant weight and space savings and helping to reduce fuel consumption in aircraft and naval vessels.
• Low insertion loss: Maintains a typical insertion loss under 0.3dB for multimode and singlemode links, enabled by the connector’s superior mechanical contact and alignment via shell-to-shell and internal alignment keys and the precision guide pins of the MT ferrule.
• Shock and vibration resistance: Internal resilient elastomers, heavy-duty retention clips, and highly secure contacts combine with the standard D38999 triple-start threaded coupling, which fully mates and locks to prevent disconnection and protect against mechanical shock and high vibration.
• Fast, reliable operation: Rugged housing mates and locks with a quick single 360-degree turn, while the scoop-proof shell design prevents ferrule damage during blind mating and unmating.
• Temperature and corrosion resistance: Shell platings provide rigorous salt-spray protection for marine and coastal environments, alongside resistance to fuels, hydraulic fluids, industrial solvents, and extreme temperatures.
• Ingress protection: Establishes an IP67 or IP68 environmental seal when properly mated, preventing moisture, dust, and particulates from reaching internal optical interfaces.
• Standardized ecosystem: Compliant with the MIL-DTL-38999 Series III standard, ensuring compatibility with a wide range of D38999 accessories, backshells, and mounting footprints for cost-effective integration.

The good news is that Cables Plus USA proudly supports the harshest defense, aerospace, and tactical environments with a complete range of military tactical and aerospace solutions — all made right here in the U.S.A. As a premier partner for custom fiber optic cable assemblies, we build rugged MT38999 fiber cable assemblies in accordance with strict military standards. Contact our team today to source custom MIL-DTL-38999 Series III fiber assemblies for your next mission-critical deployment.
