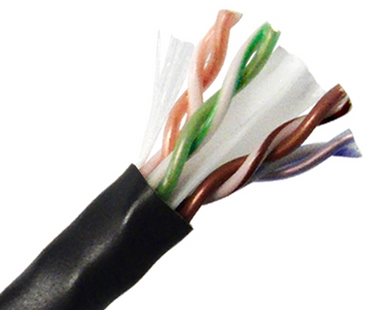

CAT6 23AWG/4PAIR CMP 600MHz U/UTP

Plenum Rated Category 6 cable tested to 600 MHz for Gigabit Ethernet. The cable comes in a box that can be removed for easier unwinding.

• Conductor is 23 AWG and has color-coded buffer
• High Speed Horizontal Cabling, 100 Mbps TPDDI, 100 Base T, 622 Mbps ATM, IEEE802.3/IEEE802.5, Digital Video, etc.
• Rated Temperature: 75°C
• Product Rating
• Flammability Test
• CMP (Plenum Rated)

DESCRIPTION
• 23 AWG 4 Pair U/UTP Category 6 cable tested to 600Mhz premium grade, high performance for top level network cabling for maximum headroom and bandwidth. Available in Pull Box for easier installation.
FEATURES AND BENEFITS
• Cross separator design engineered for con-sistent electrical performance.
• Improved cable temperature rating (750C Plenum) for greater protection against increased operating temperatures.
• Sequential footage markings
• Verified by third-party for guaranteed performance
APPLICATIONS
• IEEE 802.3 1000Base-T, 100Base-Tx 10Base-T, PoE, PoE+
• ANSI/TIA 854: 1000Base-TX
• CDDI, Token Ring, ATM
• Digital Video
• Broadband and Baseband Analog Video
STANDARD COMPLIANCES
• ANSI/TIA 568-C.2
• ANSI/TIA 862 (Building Automation)
• ISO/IEC 11801 Ed. 2.0 (Class EI)
• ICEA 8-102-700 (Category 6 or 5E)
• REACH Compliant
• CPR Compliant (Fully Complies to 305/2011 & EN 50575:2014-09)
• RoHS Compliant Directive 2002/95/EG

ELECTRICAL PERFORMANCE

ACRF-Attenuation to Crosstalk Ratio-FarEnd (dB/100m)
NEXT - Near End Crosstalk (dB/100m)
ACR - Attenuation to Crosstalk Ratio (dB/100m)
PSNEXT - Power Sum Near End Crosstalk (dB/100m)
ELFEXT - Equal Level Far End Crosstalk (dB/100m)
PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m)
RL - Return Loss (dB)
TCL - Transverse Conversion Loss (dB/100m)
ATT - Attenuation (dB/100m)
