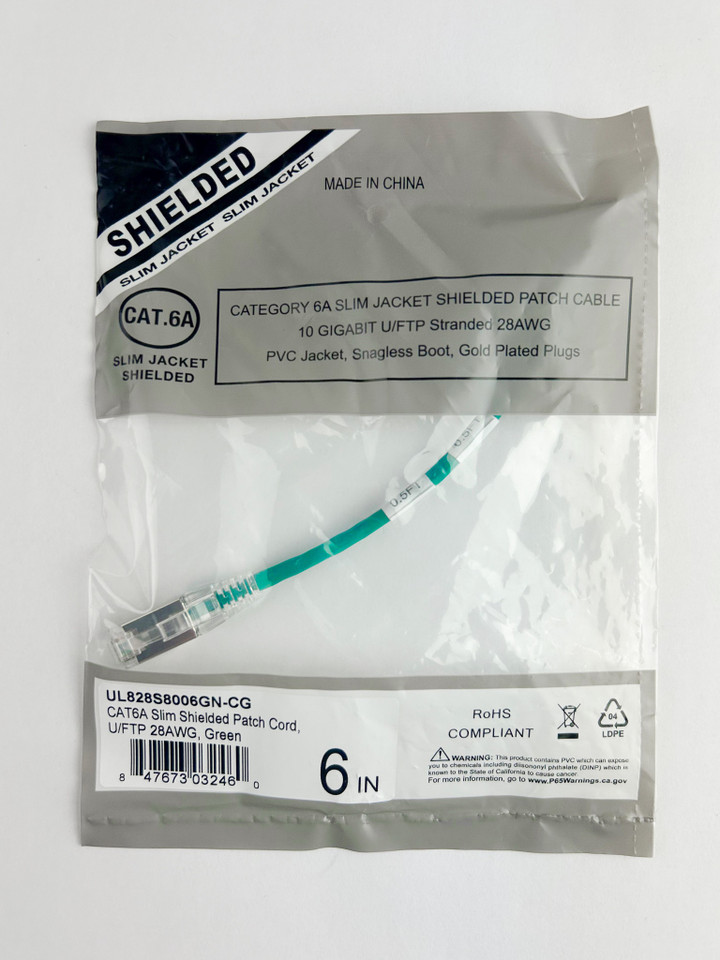

Patch Cable, Cat6A, RJ45-RJ45, Clear Boot, 4PR, 28AWG, Stranded, Shielded Twisted Pair, Slim Jacket (0.15in OD), 568B, Green Jacket

Slim Jacket Category 6A patch cables are designed for environments where space is a premium. The slim cable design assures easy access and removal in high density patch fields. A boot design that is flush to the plug features side to side stackability even in the densest jack field. Slim Category 6A patch cables feature a smaller OD jacket for space savings and better air flow in dense installation environments. All Slim Cat6 cables feature a rugged clear finger boot that protects the plug clip and are available in a variety of lengths and colors.

Features:

• 0.195in cable OD
• CM rated jacket
• Flexible, stranded 28 AWG STP (individually shielded pairs and an overall braid shield)
• Flush boot design
• Protected RJ45 clip
• Superior bend radius
• Backwards compatible with Cat5e systems
• Meets or exceeds Cat6A Channel Test specifications (Component testing not available)

Shaxon offers CAT 6A Slim Jacket cables in custom lengths and bundles for your installation needs

CABLING STANDARDS

Network cabling standards are used internationally and are published by ISO/IEC, CENELEC and the Telecommunications Industry Association (TIA). Since 1995, solid-conductor STP cables for backbone cabling is required to be no thicker than 22 AWG and no thinner than 24 AWG, or 26 AWG for shorter-distance cabling.

CATEGORY 6A

Category 6A cable, commonly referred to as Augmented Category 6, is a standardized twisted pair cable for Ethernet and other network physical layers that is backward compatible with the Category 6, Category 5/5e, and Category 3 cable standards. The cable provides performance of up to 500 MHz and is suitable for 10BASE-T, 100BASE-T, 1000BASE-T, and 10GBASE-T for distances of up to 100 meters.

Slim and Ultra-Slim patch cables will perform best at lengths of under 50 feet.
