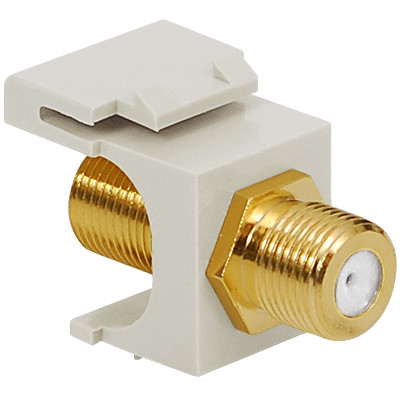

2 GHz F-Type Modular Jack with Gold Plated Connector in HD Style

The F-type female to female, Gold modular jacks is ideal for several types of media including: Audio and Video, Cable or Antenna Input. These high performance modular jacks provide a clean connection point for wired electronics to wall outlets allowing cables to be hidden within the walls or cabinetry. They provide superior signal quality with minimal noise for today's video and audio systems. They are fully compatible with all modular wallplates and multi-media panels.

Product Features

• Gold plating for improved performance with superior signal quality with minimal noise
• Used for audio and video applications
• Rear threaded F-Type connectors for secure in-wall connections with both RG6 and RG59 coxial cables
• Provides a clean and neat appearance installation
• Compatible with all IC107 faceplates, inserts, surface mount boxes and blank patch panels
• Compatible with all IC108 furniture faceplates, bezels and surface mount boxes
• Used with ICC RG6 F-Type ICPCSF patch cords
• Available in Almond, Black, Gray, Ivory and White
• UL listed

Specifications

Electrical:

• Return Loss Of -20 dB Max
• Insulation Resistance > 5000 Mohm
• Insertion Loss < 0.3 dB

Gold Plated F-type Connector:

• Material: Bronze with 3 Micron Gold Plating
• Insulator Color: White
• Holding Force > 80 Grams
• F-type Connector Threads: 3/8-32 UNEF-2A

Housing:

• UABS, UL 94V-0
• Color: XX: AL-Almond, BK-Black, GY-Gray, IV-Ivory & WH-White
