AFLs FUSEConnect MPO fusion-spliced, field-terminated connectors are uniquely designed and feature just six components. With a factory pre-polished ferrule, its innovative field-termination process eliminates polishing, adhesives and crimping in the field minimizing the potential for operator error and expensive connector scrap.

Designed to Fiber Optic Connector Intermateability Standard (FOCIS), Type MPO, FOCIS-5, TIA-604-5-C, AFLs FUSEConnect MPO performs as an equivalent to the standard factory terminated MPO/MTP® assemblies. Designed to utilize either ribbon or loose tube cable, this connector helps to minimize the complexity involved in the termination of a multi-fiber connection, allowing for a reliable and repeatable termination in field applications.

Use the FUSEConnect MPO connector for RF-overlay FTTP networks, cable TV backbone networks, as well as outside plant connectorization. The design of these connectors allows for patch cord customization in the field.

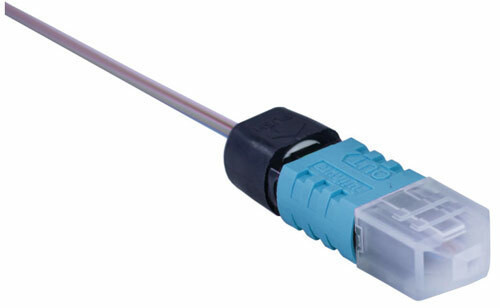

FUSEConnect® Multimode OM3 Ribbonized MPO Connector Features

• Field installable splice-on connector
• Only six components
• No adhesives, crimping or polishing
• TIA-568-C.3, IEC-61754-7, and TIA/EIA-604-5 FOCIS 5 Compliant
• Field MPO polarity customization
• Include 3.0 mm round and optical fiber ribbon flat boots in each pack

Specifications
