Product Overview

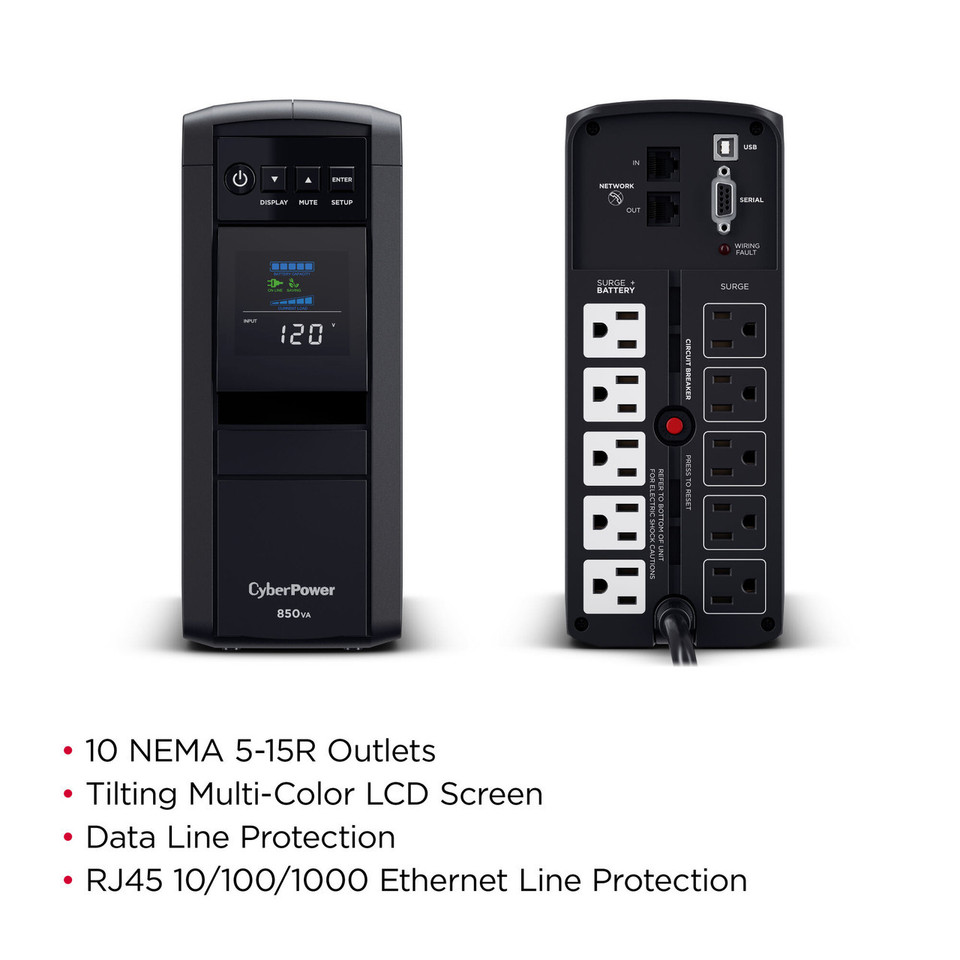

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP850PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.
The CP850PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk.
The CP850PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP850PFCLCD comes with a three-year warranty (including coverage of batteries) and a $250,000 Connected Equipment Guarantee.
- Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdo. - Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. - Sine Wave Output
The UPS generates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity. - Multifunction LCD Panel with Color Display
Displays immediate, detailed information on the UPS battery and power conditions. The color display quickly alerts users to potential problems before they can affect critical equipment and cause downtime. Screen tilts up to 22 degrees for easy viewing. - Automatic Voltage Regulation (AVR)
AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life. - Data Line Protection
Prevents power surges that travel through Ethernet lines from causing damage to electronics. - Widely Spaced Outlet(s)
The widely-spaced outlet allow you to conveniently add transformer-sized plugs without blocking other outlets. - Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery. - ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment. - GreenPower UPS™ Bypass Design
A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup. - Ultra Quiet Design
Minimizes noise during operation for a quieter work environment. - PowerPanel® Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here. - Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details. - Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box
UPS System, User Manual, USB A+B Type Cable, Function Setup Guide
Here's the reformatted and SEO-improved spec sheet:
General Specifications
| UPS Topology | Line Interactive |
| Active PFC Compatible | Yes |
| Energy Star Certified | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
Power
| Capacity | 850 VA / 510 W |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Sine Wave |
| Automatic Voltage Regulation | Single Boost (+11.5% correction) |
| Typical Transfer Time | 4 ms |
| Overload Protection | Internal Circuitry + Circuit Breaker |
Input
| Nominal Voltage | 120 VAC |
| Voltage Range | 88 – 144 VAC |
| Frequency Range | 57 – 63 Hz |
| Plug Type | NEMA 5-15P (Right Angle, 45° Offset) |
| Cord Length | 5 ft (2 m) |
Outlets
| Total Outlets | 10 |
| Battery & Surge Protected | 5 |
| Surge-Only Protected | 5 |
Battery
| Type | Sealed Lead-Acid, 12V / 9Ah (x1) |
| Runtime at Full Load | 2 min |
| Runtime at Half Load | 11 min |
| Recharge Time | ~8 hours |
| Hot Swappable | Yes |
| User Replaceable | Yes |
| Replacement Cartridge | RB1280A (serial # beginning CQD) / RB1290 (serial # beginning CX2) |
Surge Protection & Filtering
| Surge Suppression | 1,150 J |
| EMI/RFI Filtration | Yes |
| Network (RJ45) Protection | 1-in / 1-out (10/100/1000), PoE compatible |
Management & Communications
| Display | Multifunction Color LCD |
| LED Indicators | Power On, Wiring Fault |
| Audible Alarms | Battery Mode, Low Battery, Overload, Fault |
| HID Compliant USB Port | Yes |
| Serial Port | 1 Dry Contact |
| Management Cable | USB |
| Software | PowerPanel® Personal (free download) |
Physical
| Form Factor | Mini-Tower |
| Color | Black |
| Dimensions (W×H×D) | 3.9 × 9.7 × 10.2 in (99 × 246 × 259 mm) |
| Weight | 14.9 lb (6.76 kg) |
| Shipping Dimensions (W×H×D) | 7.75 × 13.5 × 13.5 in |
| Shipping Weight | 17.4 lb (7.89 kg) |
Environmental
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Operating Elevation | Up to 10,000 ft (3,048 m) |
Certifications
| Safety | UL1778, cUL 107.3, FCC DOC Class B |
| Environmental | RoHS Compliant |
Warranty
| Product Warranty | 3-Year Limited (includes batteries) |
| Connected Equipment Guarantee | $250,000 |
| Extended Warranty Option | WEXT5YR-U1B |
