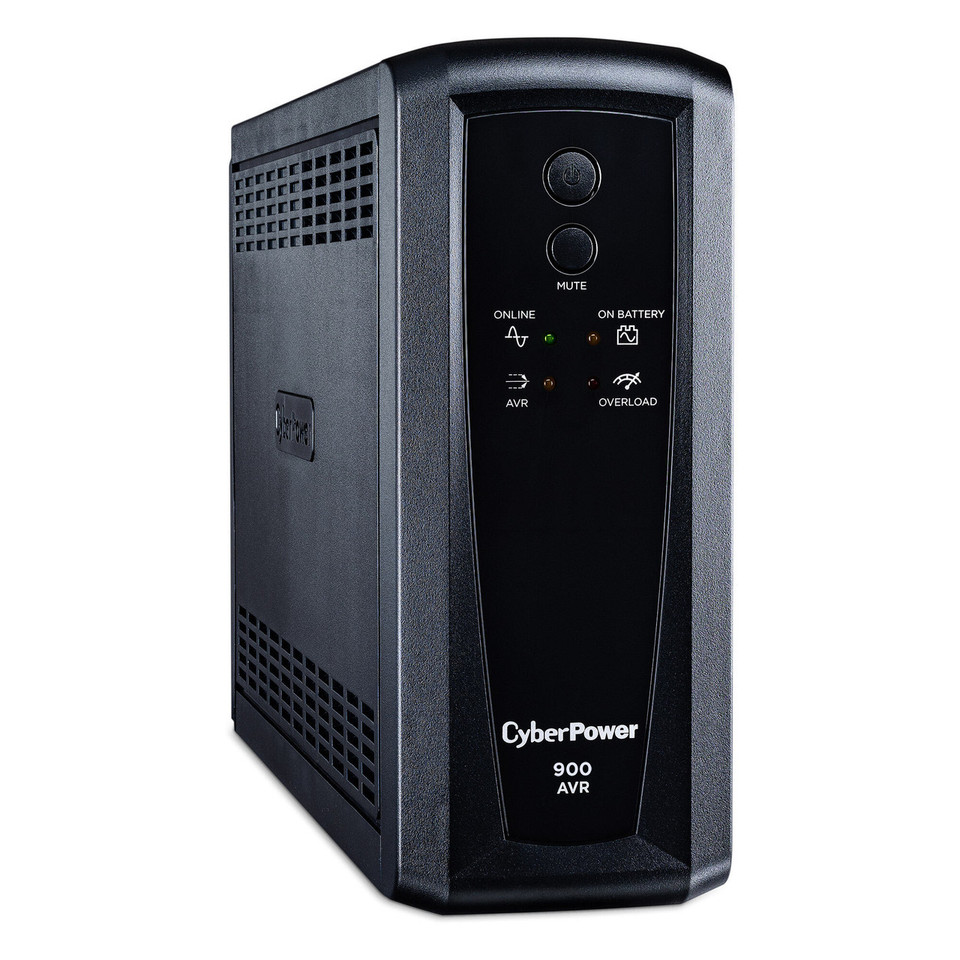

A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP900AVR provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP900AVR delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP900AVR comes with a three-year warranty (including coverage of batteries) and a $300,000 Connected Equipment Guarantee.
UPS System, User Manual, USB A+B Type Cable
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm.
|Energy Saving||GreenPower UPS™ Bypass|
|Energy Star Certified||Yes|
|UPS Topology||Line Interactive|
|Battery Type||Sealed Lead-Acid|
|Replacement Battery Cartridge||RB1270X2C (for serial numbers that begin with "CT5" or "CXQ")
RB1270X2 (for serial numbers that begin with "BGY")
|Replacement Battery Cartridge Quantity||1|
|Runtime at Full Load (min)||5|
|Runtime at Half Load (min)||16|
|Typical Recharge Time||8 hours|
|Physical Dimensions – (WxHxD) (cm)||9.91 x 24.89 x 34.8 (cm)|
|Physical Dimensions – (WxHxD) (in)||3.9 x 9.8 x 13.7 (in)|
|Physical Dimensions – (WxHxD) (mm)||99 x 249 x 348 (mm)|
|Dimensions – Shipping|
|Shipping – Weight (kg)||10.7|
|Shipping – Weight (lb)||23.6|
|Shipping Dimensions – (WxHxD) (cm)||18.42 x 34.29 x 43.69 (cm)|
|Shipping Dimensions – (WxHxD) (in)||7.25 x 13.5 x 17.2 (in)|
|Shipping Dimensions – (WxHxD) (mm)||184.15 x 342.9 x 436.88 (mm)|
|Adjustable Voltage Range||135 – 144 VAC|
|Cord Length (ft)||6|
|Frequency Range||57 – 63 Hz|
|Input Voltage Range||88 – 144 VAC|
|Plug Style||Right Angle, 45° Offset Right|
|Plug Type||NEMA 5-15P|
|Automatic Voltage Regulation||Yes|
|On Battery Frequency||60 Hz ± 1%|
|On Battery Voltage||120 VAC ± 5%|
|On Battery Waveform||Simulated Sine Wave|

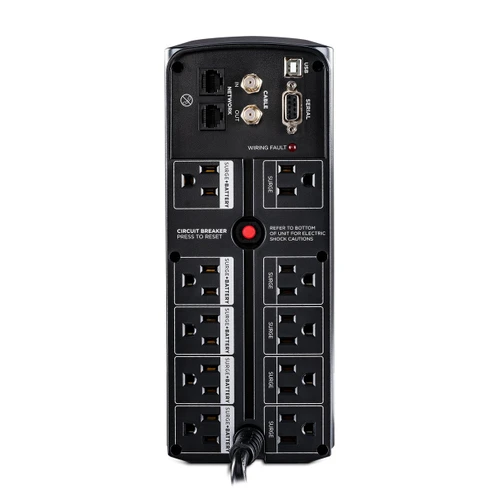

|Outlet Type||NEMA 5-15R|
|Outlets – Battery & Surge Protected||5|
|Outlets – Surge-Only Protected||5|
|Outlets – Total||10|
|Outlets – Widely Spaced||2|
|Overload Protection||Internal Circuitry Limiting, Circuit Breaker|
|Transfer Time||Typical 8 ms|
|Surge Protection & Filtering|
|Coaxial Protection RG6||1-In, 1-Out|
|Network Protection RJ45||1-in, 1-Out (10/100/1000)|
|Surge Suppression (Joules)||1500|
|Management & Communications|
|Audible Alarms||On battery, low battery, overload, fault|
|HID Compliant USB Port||Yes|
|LED Indicators||Power On, Wiring Fault, On Battery, AVR, Overload|
|Management Cable||USB Cable|
|Online Thermal Dissipation||26.7|
|Operating Elevation||0-10,000 ft (0-3,000 m)|
|Operating Relative Humidity||0-90% (non-condensing)|
|Operating Temperature||32°F to 104°F (0°C to 40°C)|
|Storage Elevation||0-50,000 ft (0-15,000 m)|
|Storage Relative Humidity||0-95% (non-condensing)|
|Storage Temperature||5°F to 113°F (-15°C to 45°C)|
|Safety||UL1778, cUL 107 5th, FCC DOC Class B|
|Connected Equipment Guarantee||Lifetime|
|Product Warranty||3 Years Limited|
GreenPower UPS™ Technology from CyberPower improves operating efficiency, reduce heat generation, and consume less power than conventional UPS models.
Our patented Bypass Design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.
Automatic Voltage Regulation (AVR) in line interactive UPS systems stabilizes the incoming AC signal to maintain output power at a nominal 120 volts by controlling high and low voltages without resorting to battery power. This significantly increases battery life and lessens the likelihood of data loss, memory freezes, and system crashes.
How AVR Works in a Line Interactive UPS
A line interactive UPS includes an AVR autotransformer a special type of transformer designed to switch between powered coils of wire in response to variances in utility power input, thereby increasing or decreasing the magnetic field and the resulting output voltage to connected equipment.
This type of UPS tolerates undervoltage brownouts and overvoltage surges without consuming backup battery power by automatically selecting different power taps on the AVR autotransformer. During normal operation, incoming AC power bypasses the autotransformer (where voltage highs and lows are controlled) while also charging the battery. When the incoming voltage falls below the AVR range, the UPS switches to battery backup, and the DC-AC inverter circuitry is engaged. Power will continue to be supplied by the battery-inverter circuit until incoming voltage returns to the range manageable by the AVR.
A transformer converts alternating current line voltage to a higher value or a lower value. Transformers rely upon electromagnetic induction, the process which occurs when the alternating current within a circuit generates current in a nearby circuit.
Transformers vary in design and size, as well as using different amounts of current. Small transformers plug into a wall outlet and create low direct current voltages which are used by common electronic devices. Transformer outlets are more widely spaced than other outlets to accommodate transformer block adapters or other adapters that are large in size. Transformer outlets can be used to connect any appropriate device to a surge protector.
