Metered PDU's - Real-time monitoring with front LCD display

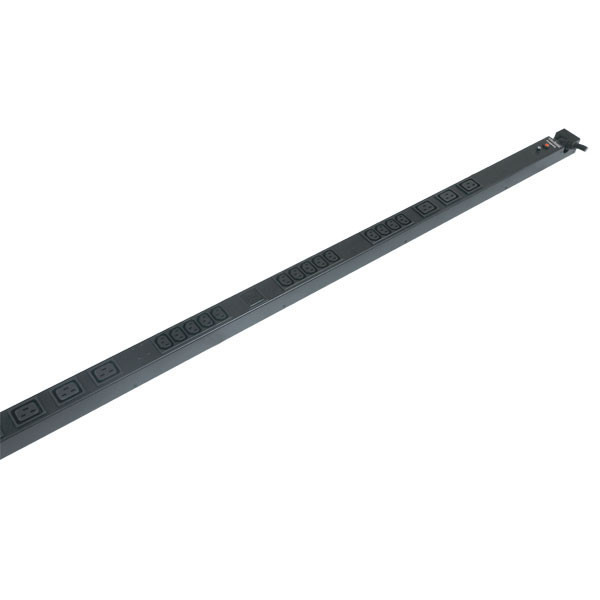

The CyberPower 30-outlet (30 Front) 0U vertical rack mount basic power distribution unit (PDU20MVHVIEC30F) provides 200/230V 20A output. It distributes power to 30 IEC-320 (6-C19 and 24-C13) receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
| Input | |
| Voltage | 200V/230V |
| Frequency | 50Hz/60Hz |
| Maximum Input Current | 20A (Derated to 16A) |
| Plug Type | IEC-320 C20 |
| Plug Style | Straight |
| Cord Length | 10' |
| Output | |
| Nominal Output Voltage | 200V/230V |
| Overload Protection | 16A |
| Outlets - Total | 30 |
| Outlets - Front | 6(C19)+24(C13) |
| Outlets - Rear | 0 |
| Outlet Type | IEC-320 C19/C13 |
| Meter Readout | Amperage |
| Physical | |
| Rack Size | 0U |
| Form Factors Supported | Vertical or horizontal mounting supported in wallmount applications, racks and a variety of other surface types |
| Style | Rackmount, Vertical Rackmount, Wallmount/Under-Counter |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Adjustable Mounting Brackets | 3 set(L-short/L-long/flat) |
| Dimensions (WxHxD) (in.) | 1.75 x 60 x 2.25 |
| Weight (lbs.) | 8.5 |
| Environmental | |
| Operating Temperature | 32 °F to 95 °F / 0 °C to 35 °C |
| Operating Humidity | 0% - 95% non-condensing |
| Storage Temperature | 5 °F to 113°F / -15°C to 45 °C |
| Maximum Operating Elevation | 10,000 ft / 3,000 m |
| Maximum Storage Elevation | 50,000 ft / 15,000 m |
| Certifications | |
| Certifications | UL60950_1 certified by ETL (USA), CSA C22.2 (Canada) |
| RoHS | RoHS Compliant |
| Warranty | |
| Product Warranty | Lifetime |
