EasyGet Digital Portable Fiber Endface Microscope
- Digital imaging solution, clear image and low noise
- Lightweight and portable, easy to use
- Great companion for use with the EasyCheck V2
- Rich adapter interfaces, complete functions
Product Details
The EasyGet Digital portable fiber end-face microscope uses an advanced digital imaging system and a flexible USB spring cable to connect to display devices for simple operation.

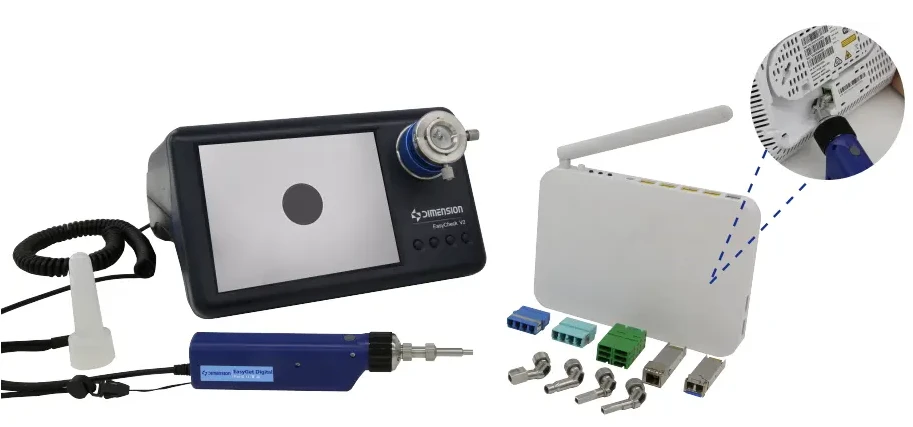

It is compatible with the EasyCheck V2, and easy screw on adapters allow you to inspect various fiber optic connectors. It can also plug into a PC to analyze and evaluate end faces using dedicated software.
EasyGet Digital has over 50 types of connector adapters, which can meet variable detection needs of users and support single and multi-core detection; And the special connector detection interface can be customized
Application:
- Construction and maintenance of 5G optical network
- Data center High reliability fiber optical connection
- Laboratory and manufacturing testing
Clear digital image quality
The EasyGet Digital features digital imaging that offers lower noise, sharper clarity, and better defect contrast than analog systems, providing a much more comfortable inspection experience for operators. Simple to focus the image clarity with easy to use external adjustment ring.

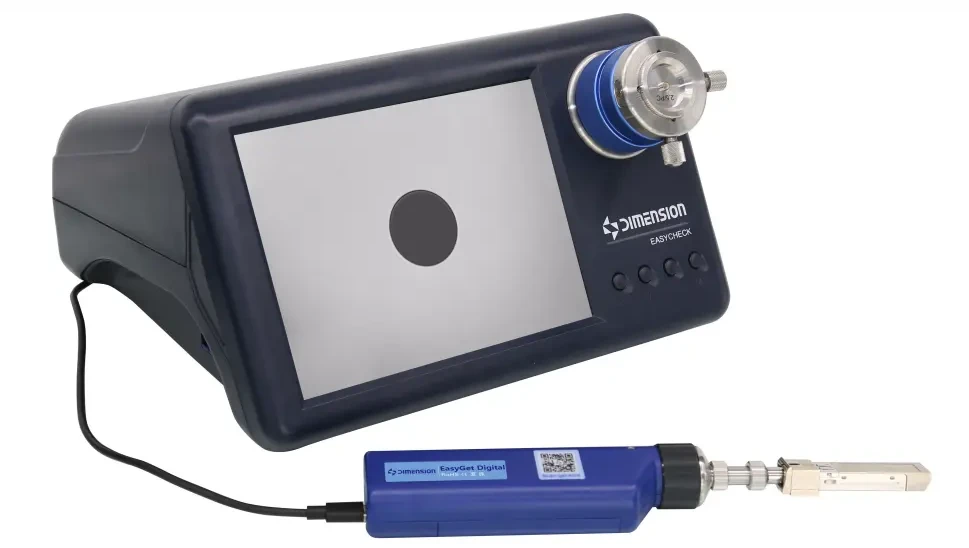

The Perfect Companion for EasyCheck V2: The EasyGet Digital seamlessly interconnects with Dimension Technology's EasyCheck V2 fiber end-face inspector, allowing operators to easily inspect a wide variety of female connectors.
-
Highly Portable: Lightweight, durable, and optimized for one-handed operation
-

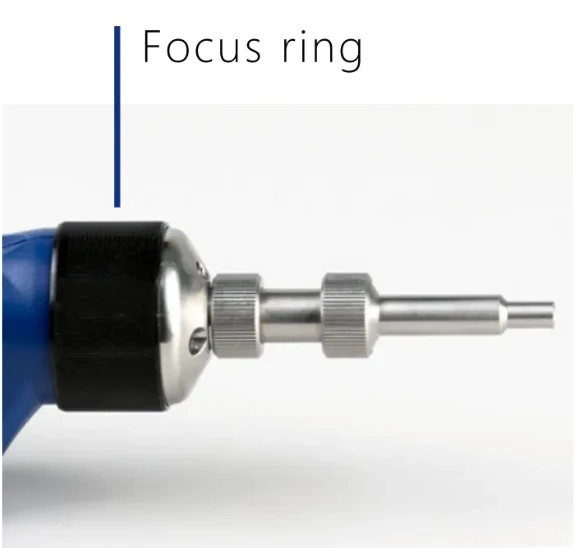

User-Friendly Design: Features a unique surround focus ring for a simpler, clearer user experience.
Performance parameter
| Project | Parameters |
| Resolving power | 0.42um |
| Image sensor | 5 megapixel CMOS |
| Optical magnetization | 10X |
| Particle detection size | ≪ 1μm |
| Video signal format | MJPEG |
| Display Field of View | 512umX384um |
| Focus Mode | Manual |
| Signal output mode | USB |
| Power supply method | USB |
| Auxiliary functions | With white LED ambient lighting |
| Working temperature | -5 ° C to+40 ° C |
| Storage temperature | -20 ° C to+55 ° C |
| Relative humidity | ≪ 90% (under working/storage temperature conditions) |
| Weight | 256g |
| Foot storage | 211mm × 44mm × 33mm |
