Fan Assembly Kit

click to zoom in

Fan Assembly Kit

List Price: $59.00
(You save $14.75 )
1.50 LBS
Customer Service

Need Help?

Speak to one of our experts.

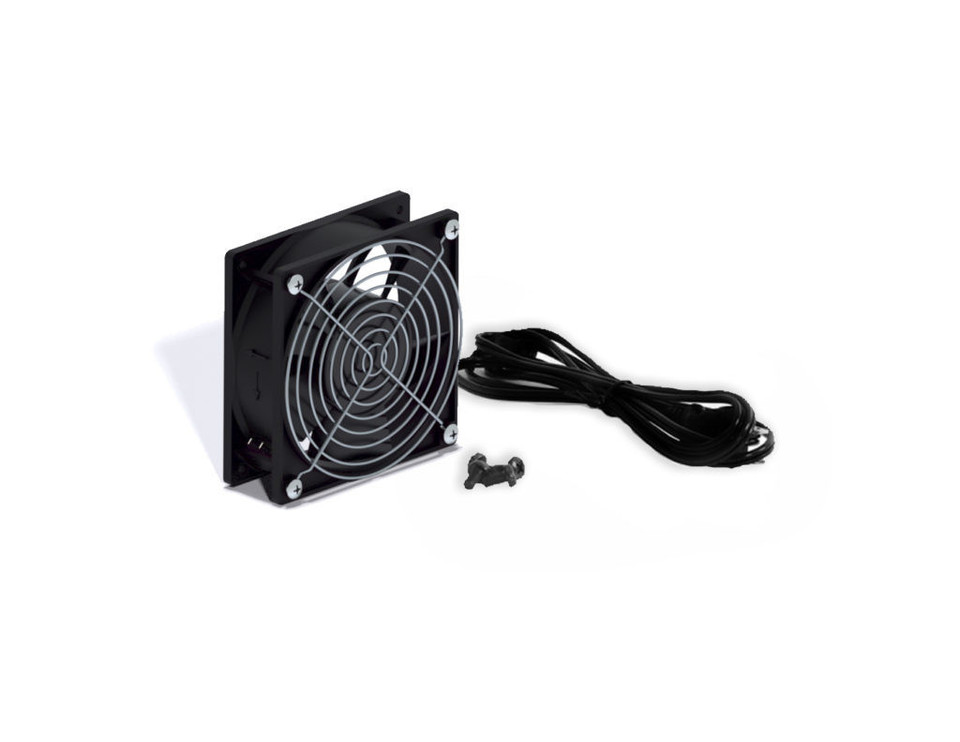

1908-3-001-01 - Fan Assembly Kit

Fan Assembly Kit

List Price: $59.00
(You save $14.75 )

The Kendall Howard Fan Assembly Kit helps to remove ambient heat that rackmount components can emit. Circulating new air into a wall mount cabinet or server enclosure helps to maintain the optimal temperature for devices such as servers, battery backups, and UPS's.

  • Ball bearing design
  • 115V / 78 CFM
  • Impedance protected
  • RoHS compliant
  • Includes power cord, fan guard, and installation hardware
  • 1-Year Limited Warranty

The fan assembly kit comes complete with one 115V / 78 CFM fan, one protective grate, one 6 ft. NEMA 1-15 power cord, and all installation hardware.

Easy to Install
The Kendall Howard Fan Assembly Kit is a snap to install. Simply use the included hardware to screw into place. The fan also includes airflow and rotation guides to ensure proper installation.

The standard 4″ fan complements all Kendall Howard cabinets and enclosures. Whether you need to cool a wall mount cabinet, full size enclosure, DVR lock box or training table cable management enclosure, this fan assembly kit will get the job done.

Optional Grounding
Server rack fan features two threaded grounding holes should you need to ground the fan for your particular installation.


Part Number 1908-3-001-01
Width 4.7"
Depth 4.7"
Height 0.98"
Weight 1.50 lbs.
Shipping Dimensions 6" L x 6" W x 6" H
Material(s) Rack Mount Panel: CRS (Cold Rolled Steel)
Color/Finish Rack Mount Panel: Black Powder Coated Finish
UPC 879447001167
Warranty 1-Year Limited Warranty
Shipping Method FedEx Ground
Fan Specifications Bearing System: Ball Bearing
Voltage 115 VAC
Rated Speed 2000 RPM
Airflow 78 CFM
Noise Level 38dBA
Operating Temperature -22° F (-30° C) to 167° F (75° C)
Power Cord Specifications Cable Length: 6ft (72 in)
Plug Type NEMA 1-5 (type A)
