The LightWave OM3 24-Fiber Dual MTP Elite/MPO to LC Fiber Optic Fanout Cable is designed to help data centers and telecommunications rooms maximize connection density for working with limited space. Systems and network administrators can regain space once occupied by cable clutter, and manage their working room more efficiently.

This cable holds two MTP brand connectors, hosting 12 fibers per connector, which fans out to 24 LC connectors. This small form factor connector style is also known for its space-saving capabilities. This fiber optic cable comes in a rollover "Type B" polarity.

Using this cable, you can transmit data over a 50/125 micron 1Gbps fiber link a distance of up to 1000 meters at a wavelength of 850nm, or a distance of up to 550 meters at a wavelength of 1300nm. On a 10Gbps link, you can transfer data a distance of up to 300 meters at 850nm.

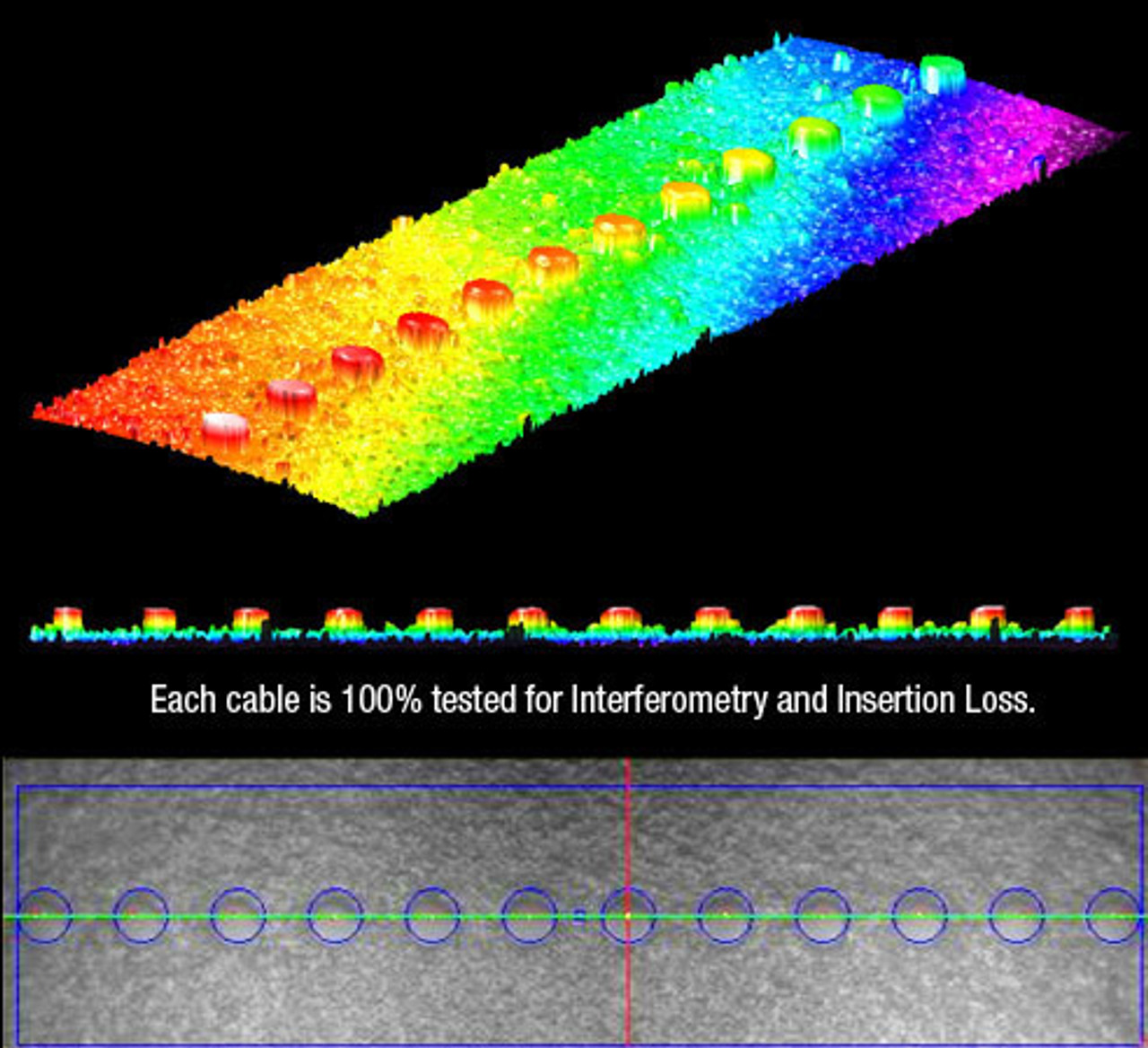

All LightWave brand fiber optic patch cables, including this MTP Elite-LC fiber optic cable, are assembled to meet and exceed industry performance standards. Each product is individually tested to make sure you receive the highest possible quality, and the results of each test are included with the product.

LightWave brand MTP Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.

OM3 24-Fiber Dual MTP Elite/MPO to LC Fiber Optic Fanout Cable Features

• Dual MTP Elite connectors fan out to 24 LC connectors
• Plenum-rated jacket
• Digital and hard copy of test results

Specifications

• AFL brand Sub-unitized Premise MicroCore® 50/125µm OM3 glass fiber
• Plenum-rated aqua jacket
• 24-Fiber total count

Optical Characteristics

Each cable order includes:

• Hard copy of test results for each cable
• CD with digital copy of test results for each cable
• "Peel & Place" Fiber Optic Selection Guide
• Logo Sticker

MTP® is a registered trademark of US Conec Ltd.
