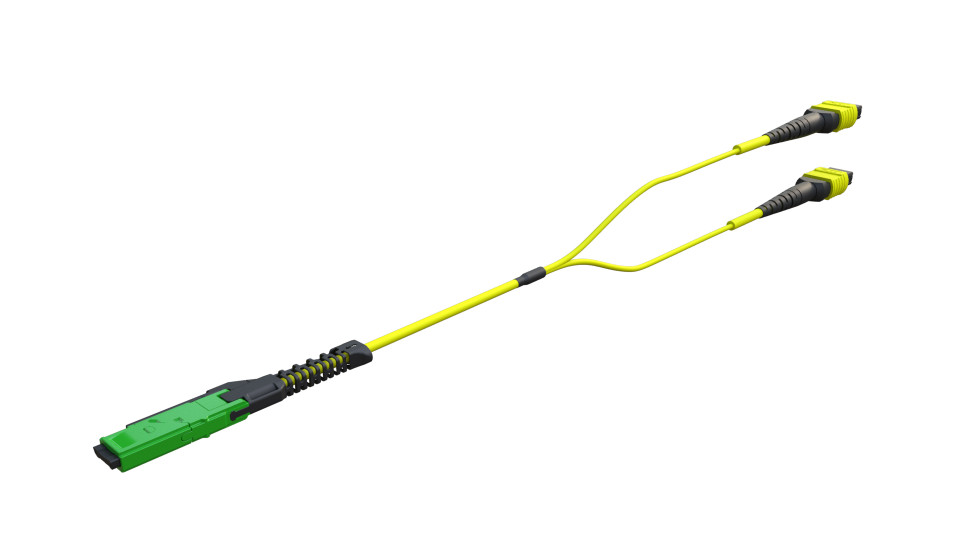

Fiber Cable, MMC® Elite/APC Female to 2X MTP® Elite/APC Female, 16 Strand, OS2, Corning Glass G657A1, OFNP

click to zoom in
Fiber Cable, MMC® Elite/APC Female to 2X MTP® Elite/APC Female, 16 Strand, OS2, Corning Glass G657A1, OFNP
MMC/APC, Connector Details
MMC/APC, Connector & Coupler
Fiber Cable, MMC® Elite/APC Female to 2X MTP® Elite/APC Female, 16 Strand, OS2, Corning Glass G657A1, OFNP
Fiber Cable, MMC® Elite/APC Female to 2X MTP® Elite/APC Female, 16 Strand, OS2, Corning Glass G657A1, OFNP

Fiber Cable, MMC® Elite/APC Female to 2X MTP® Elite/APC Female, 16 Strand, OS2, Corning Glass G657A1, OFNP

Item#:
MCF-MTF2X16-OS2-001M
List Price: $259.88
$173.25
(You save $86.63 )
Availability:
Made to Order. Contact Cables Plus Sales team at sales2@cablesplususa.com for lead time.
Weight:
0.25 LBS
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 5 - 9 and get 3% off
  • Buy 10 - 24 and get 5% off
  • Buy 25 - 49 and get 7% off
  • Buy 50 or above and get 10% off
Customer Service

Need Help?

Speak to one of our experts.

Phone Icon

804-716-9007

Fiber Cable, MMC® Elite/APC Female to 2X MTP® Elite/APC Female, 16 Strand, OS2, Corning Glass G657A1, OFNP

Fiber Cable, MMC® Elite/APC Female to 2X MTP® Elite/APC Female, 16 Strand, OS2, Corning Glass G657A1, OFNP

List Price: $259.88
$173.25
(You save $86.63 )
Choose Option

Fiber Cable, MMC® Elite/APC Female to 2X MTP® Elite/APC Female, 16 Strand, OS2, Corning Glass G657A1, OFNP

List Price: $259.88
$173.25
(You save $86.63 )
✕
Description

Fiber Cable, MMC® Elite/APC Female to 2X MTP® Elite/APC Female, 16 Strand, OS2, Corning Glass G657A1, OFNP

MMC-16 to (2) MTP-8, 16 Strand, Corning G657A1 Singlemode 9/125 Micron, OFNP Yellow Jacket

MMC-16TM Multi-fiber Optical Connector Supports Next Generation 400G & 800G Applications
Fiber Cable, MMC® Elite/APC Female to 2X MTP® Elite/APC Female

The revolutionary MMC connector ushers in a new era of high density, low insertion loss connectivity by combining a new, reduced size, MT-style ferrule (TMT) with a novel very small form factor (VSFF) connector embodiment. Employing DirectConec™ push-pull technology, the MMC connector enables the highest functional fiber density available in the market. Simplified gender and polarity management greatly reduces the complexity associated with MPO cabling infrastructure. MMC connectivity enables solutions that minimize the space required across multiple applications, including structured cabling, high fiber count data center interconnects, transceivers and on-board optics.

LightWave brand MTP Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.

Ferrule pinout

Connector

Specifications

  • Simplex 2.0mm cable
  • 9/125um OS2 Corning G657A1 Glass
  • Plenum-Rated OFNP Yellow Jacket
  • 16-Fiber count
  • Nominal Diameter: 2.0mm

Features

  • Simplified Polarity Management
  • Proven Alignment Structure
  • Best in class Optical Performance
  • TMT Elite™ low-loss, IEC Grade B insertion loss performance (0.25dB 97% random intermate)
  • High Density Footprint (3 Times Cables Port Density over MPO format)
  • Error-Free Assembly
  • MMC Engagement Length
  • DirectConec™ push-pull boot for effortless connector insertion and extraction
  • Utilizes proven MT or MT-16 mechanical and fiber alignment structures
  • Compatible with standard 250 micron OD and pitch optical fibers
  • Tested to Telcordia GR-1435
  • Standard cabling industry infrastructure support including IBC cleaners, polishers,
    interferometers, and optical testing equipment
  • 0.55mm guide pins; 5.3mm guide pin pitch
  • 16 Fibers per row
  • High Density; fiber pitch: 0.25mm
  • Highly glass filled for dimensional stability and stable environmental performance
  • Low hygroscopic PPS material for stable environmental performance
  • Low insertion loss optimized for 800G link applications
  • Mold marks to indicate fiber type, fiber count and performance
  • Pre-angled ferrule for minimized polishing time

Applications

  • FTTx hardened connector cabling infrastructure
  • Standards Compliance IEC 61754-7-3; 61754-7-4
  • Standards Compliance TIA 604-18
  • 400G DR8 (8X50G) 16 Fiber
  • 800G DR8 (8X100G) 16 Fiber
  • 800G FR8 (8X100G) 16 Fiber

Connector Side A
 MMC/APC 16 Fiber Connector Side B
 MTP/APC 16 Fiber
Ferrule Type Side A

Ferrule Type Side A

 Ferrule Type Side B

Ferrule pinout side B-1

Ferrule Type Side B pinout-2
Insertion Loss Maximum Side A
 ≤0.50dB Insertion Loss Maximum Side B
 ≤0.50dB
Insertion Loss Typical
 0.25dB Insertion Loss Typical
 0.25dB
Return Loss ≥60dB Return Loss ≥60dB
===============
 ==================== ==================
 ==================
Cable Type
 OS2 9/125μm Wavelength 1310/1550nm
Fiber Count 16 Fiber Grade G.657.A1 (Compatible with G.652.D)
Polarity Type A, B or C Cable Outer Diameter 3.0mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter N/A
Bend Radius, No Load
 10x cable overall diameter Bend Radius, Load
 15x cable overall diameter
===============
 ==================== ==================
 ==================
Wavelength
 1 Gb Distance Max.
 Wavelength
 10 Gb Distance Max.
1310nm > 25,000 Meters 1310nm 10,000 - 25,000 Meters
1550nm > 40,000 Meters 1550nm 40,000 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

1 U Panel Max Density (66)Angle end-face mating
