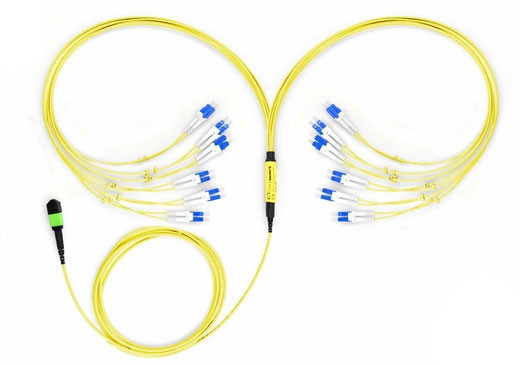

The LightWave 24-Fiber Singlemode MTP to LC Fiber Optic Fanout Cable offers a high quality solution for fast, reliable transmission of light data. Using the best quality fiber and connectors ensures low loss and high connection quality, which is what CablesPlus USA strives for.
On one end, the cable has an MPO connector, housing 24 fibers, which breaks out to 24 duplex LC connectors. This is the ideal cable solution for connecting MPO/MTP cassettes and transceivers/switches, etc.
With Singlemode OS2 fiber optics, experience data transmissions over a 1Gbps link with a 9/125 micron glass fiber over a distance of up to 10,000 meters at a wavelength of 1310nm. For a 10Gbps link, you can transfer data over a distance of up to 5,000 meters at 1310nm, and 30,000 meters at 1550nm.
All LightWave brand fiber optic patch cables, including this MPO-LC fiber optic cable, are assembled to meet and exceed industry performance standards. Each product is individually tested to make sure you receive the highest possible quality, and the results of each test are included with the product.
LightWave brand MPO Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.
OS2 24-Fiber MPO to LC Fiber Optic Fanout Cable Features
- 24 fibers in one cable
- Single Low Loss MPO connector fans out to 24 duplex LC connectors
- Plenum-rated yellow jacket
- Digital and hard copy of test results
Specifications
- 9/125µm OS2 Singlemode fiber glass
- 24-Fiber total count
- Nominal Diameter 3.0mm
- Weight per 1000 feet: 13.2 lbs
- Bend Radius: 2.2in (Installation), 1.5in (Long-term)
Optical Characteristics
Typical Insertion Loss (dB) 24-fiber 0.15
Max Insertion Loss (dB) 24-fiber 0.35
