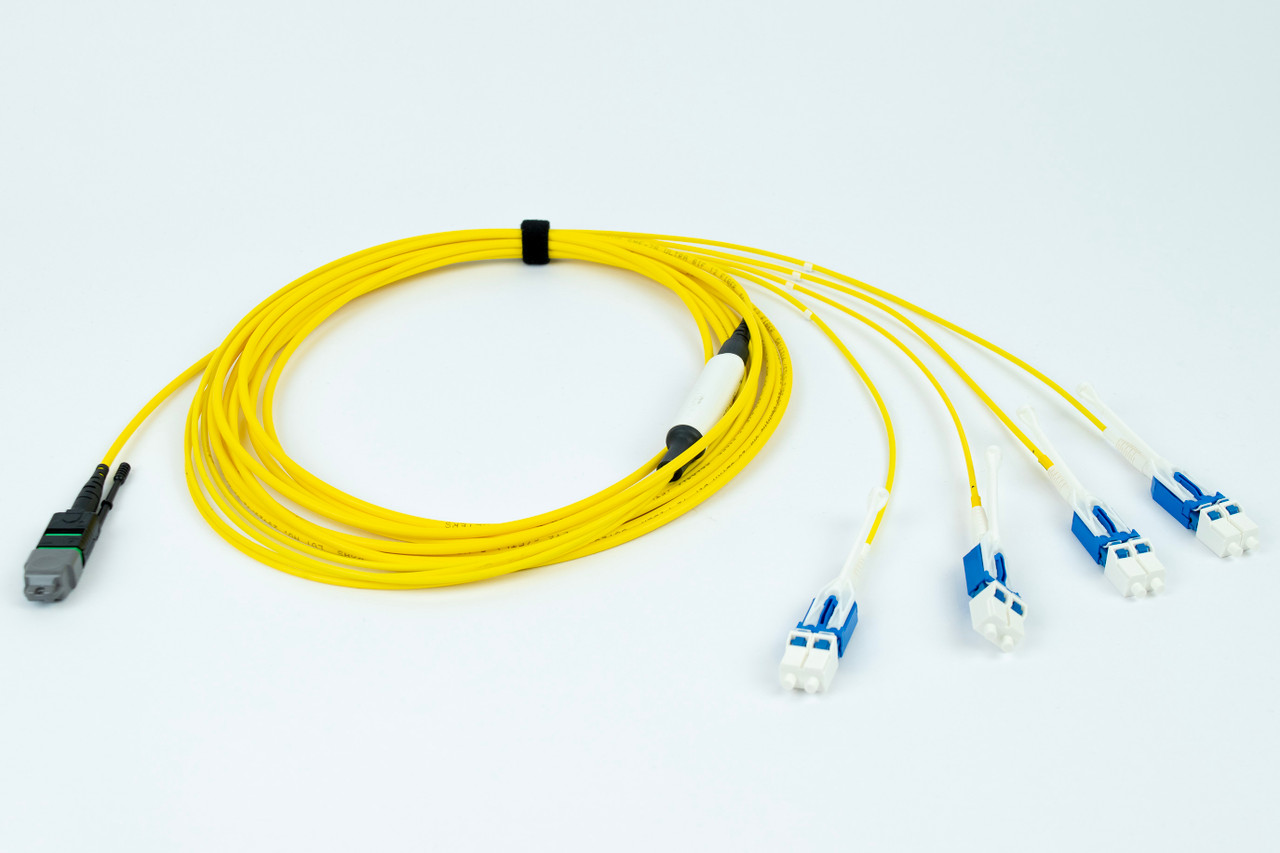

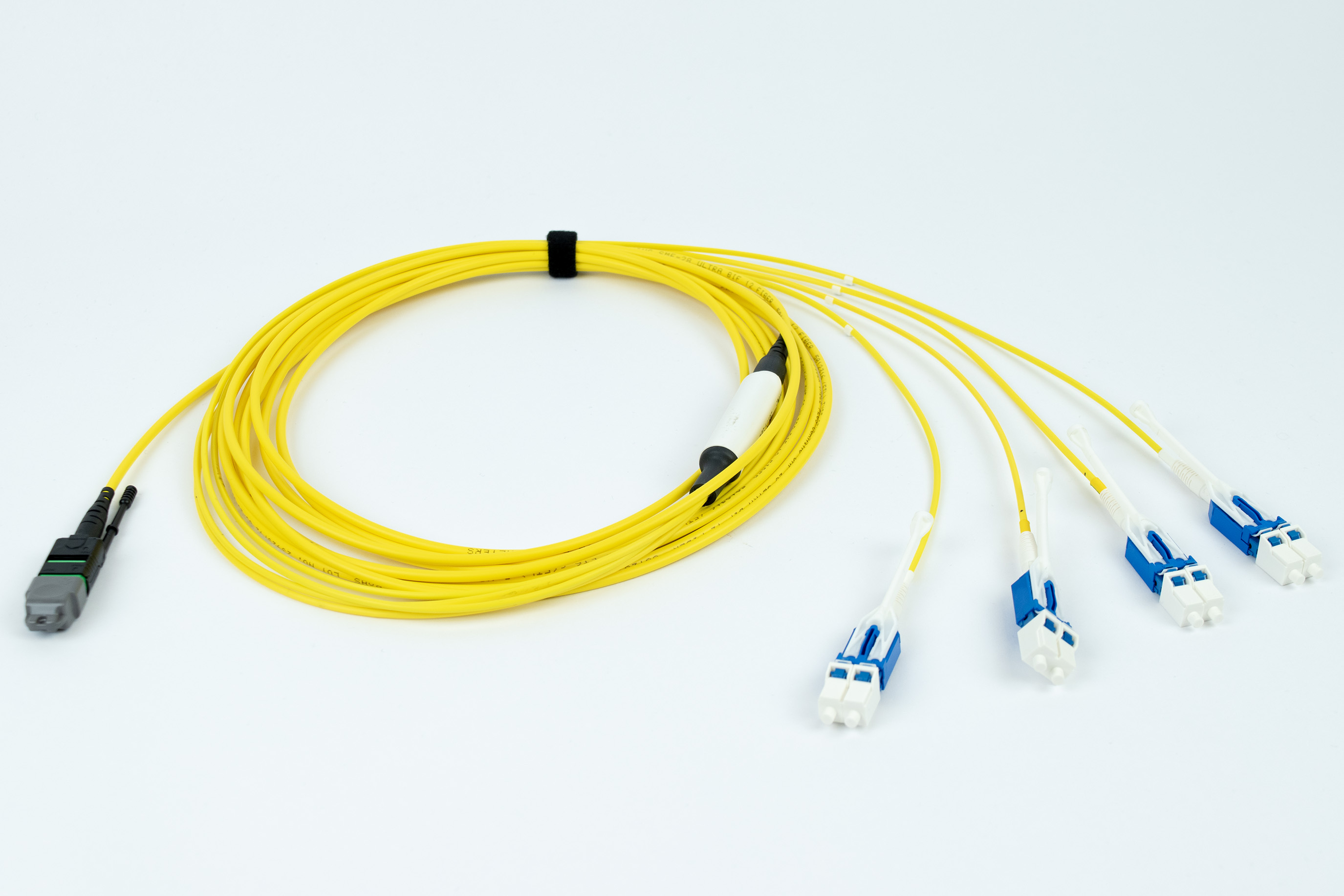

Fiber Cable, MTP/APC 12 (F) - (4 ea) LC/PC (Uniboot), 8 Fiber, OFNP, 9/125 OS2, Indoor, Nanocore 3.0mm, Yellow Jacket, 5 Meter, 2ft Breakout, (QSFP+ to 4 SFP+)
In today’s High Density Data Center environments managers are taking advantage of the most innovative fiber optic technology to date. The MTP multi-fiber MPO used in conjunction with the Senko HD-LC Uniboot cables accomplish more with less cable clutter. Using the MTP brand MPO style connector instantly saves space over standard fiber patch networking installations. This high-density solution is a must have in this day and age, where transmission speed and bandwidth demands are at an all-time high and workspace availability grows even more limited.
The MTP brand connector is an improved version of the MPO style connector, offering features that benefit the user to get the best possible connection, including a removable housing for reworking the ferrule or changing the connector gender post-assembly.
The Senko LC-HD's lever design utilizes a flexible "pull-tab" allowing for the connector to be disengaged easily from densely loaded panels without need for special tools.
Using OS2 fiber optics, experience data transfers over a 1Gbps link with a 9/125 micron glass fiber over a distance of up to 1000 meters at a wavelength of 850nm, and over a distance of up to 550 meters at 1300nm. For a 10Gbps link, you can transfer data over a distance of up to 300 meters at 850nm.
Each cable is assembled in-house our local facility, and tested for interferometry and insertion loss, so enjoy the American-made quality and high performance that LightWave cables provide.
LightWave brand MTP Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.
Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb & 100Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.
MTP Elite Pro Boot 12-Strand Fiber Cable Features
- Space-saving 12 fibers in a single connector
- 3.0mm Plenum Rated Jacket
- High density connections between network equipment in telecommunication rooms
- Easy installation and removal with push-pull tab
- Compact design for high fiber-count applications with space limitations
Specifications
- Simplex 3.0mm cable
- 9/125um OS2 glass fiber
- Plenum-rated aqua jacket
- 12-Fiber count
- Nominal Diameter: 3.0mm
- Bend Radius: 1.8in (Installation), 1.2in (Long-term)
Optical Characteristics
| Fiber Description & Type | Typical Attenuation (dB/km)) | 1 Gbps Ethernet Distance (Meters) | 10 Gbps Ethernet Distance (Meters) | ||||
| Singlemode, Tight Buffer | 1310nm | 1383nm | 1550nm | 1625nm | 1310nm | 1310nm | 1550nm |
| 900 Micron | 0.65 | --- | 0.65 | --- | 10,000 | 5,000 | 30,000 |
| 2mm/3mm Breakout | 1.00 | --- | 1.00 | --- | 10,000 | 5,000 | 30,000 |
MTP® is a registered trademark of US Conec Ltd.
