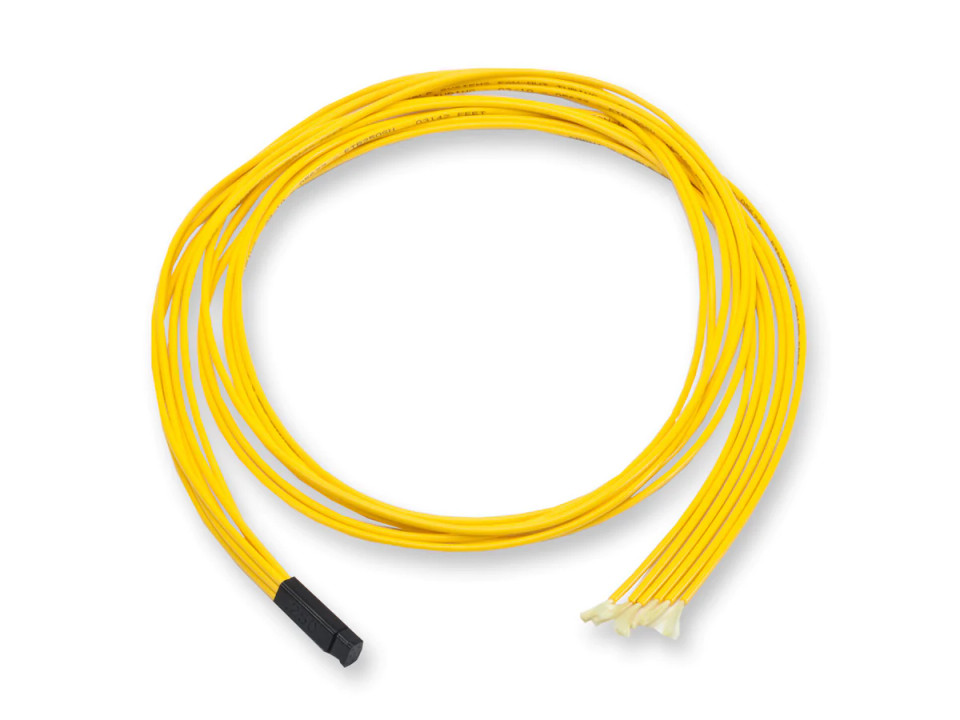

Corning Spider Fan-Out Kit Insert, 3.0mm, 900µm, 6 Fiber

Corning Cable Systems Spider Fan-Out Kits provide a low-cost furcation option for multifiber cables. Offering the end user simple step-by-step assembly, these kits are designed for factory and field furcation of 4- to 24- fiber tight-buffered and loose tube non-armored cables into 2.0 mm or 2.9 mm jacketed legs and eliminate the need for patch panels. The spider fan-out kit furcates and provides pull-out protection for bare fibers (900 μm or 250 μm). The cable jacket is simply stripped back and the fibers are threaded into the modular 6-fiber fan-out inserts consisting of six 1 m lengths of fan-out tubing secured in a composite assembly.

Comprised of an inner tube, an aramid yarn strength member and an outer protective PVDF jacket, the fan-out tubing provides three layers of protection. The fan-out insert then snaps into the main spider housing. When all the inserts have been loaded, the outer housing is installed to complete the assembly.

See the Resources tab, located on the individual part number pages, for the Spider Fan-Out Kits Quick Reference Guide. It will show you how to properly order/configure your spider fan-out kit part number.

Replacement for: SFK-INS-06F-900-3MM-A, SFK-INS-06F-900-3MM-O, SFK-INS-06F-900-3MM-Y

Product Features

Features And Benefits

• Snap-together fan-out insert
  Easy installation
• Three-layer protective tubing
  Fiber protection
• Designed for factory and field furcation
  Eliminates need for patch panel
