LightWave
Fiber Patch Cable, LC-LC, UPC, Singlemode 9/125 Micron OS2 Fiber, Senko LC Uniboot 54mm, Pull Tab, 1.6mm MicroDual OFNR Rated Jacket
MSRP:
$23.55 - $47.81
$21.28 - $43.20
Speak to one of our experts.

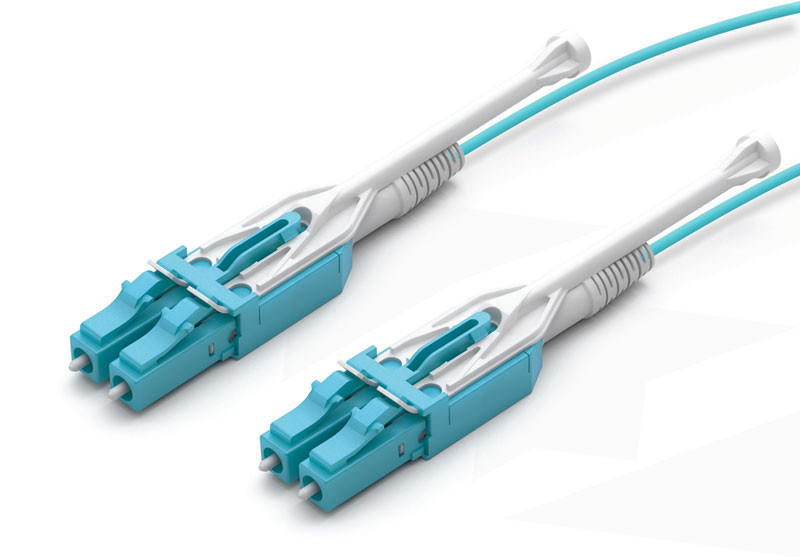

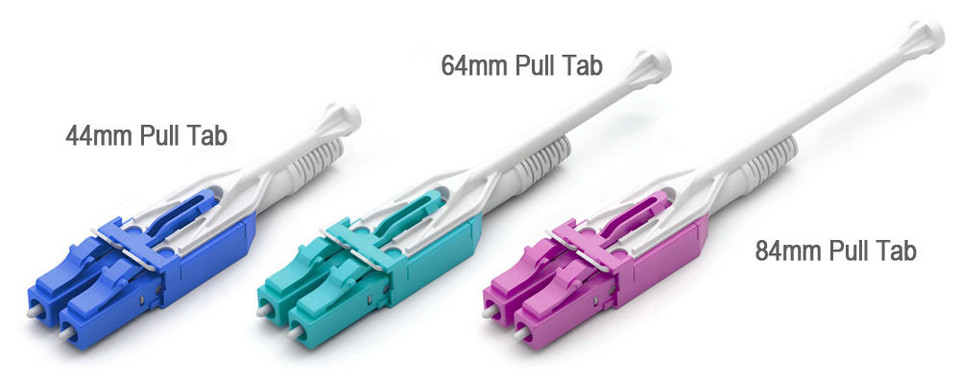

This is a LightWave Senko LC-LC Uni-boot Multimode OM3 Fiber Optic Patch Cable is a duplex-style cable that is perfectly capable of handling even the most demanding telecommunications data transmission requirements, and utilizes the LC connector's compact, space-saving design that dominates the market today. Now featuring a rigid Push-Pull Tab that allows for connector insertion as well as disconnect. Enjoy stable performance at a high level of quality with the LC-LC OM3 fiber optic cable.
| Connector Side A |
LC/UPC Uniboot | Connector Side B |
LC/UPC Uniboot |
| Ferrule Type Side A |
1.25mm | Ferrule Type Side B |
1.25mm |
| Insertion Loss Maximum Side A |
≤0.20dB | Insertion Loss Maximum Side B |
≤0.20dB |
| Insertion Loss Typical |
0.08dB | Insertion Loss Typical |
0.08dB |
| Return Loss | ≥20dB | Return Loss | ≥20dB |
| =============== |
==================== | ================== |
================== |
| Cable Type |
OM3 50/125μm | Wavelength | 850/1300nm |
| Fiber Count | 2 | Fiber Grade | Corning ClearCurve Glass |
| Polarity | Rollover (Type B) | Cable Outer Diameter | 2.0mm Simplex |
| Cable Jacket | OFNP Plenum | Sub Unit Outer Diameter | N/A |
| Bend Radius, No Load |
10x cable overall diameter | Bend Radius, Load |
15x cable overall diameter |
| =============== |
==================== | ================== |
================== |
| 1 GbE Distance Max. | 10 GbE Distance Max. | 40 GbE Distance Max. | 100 GbE Distance Max. |
| 1,100 Meters | 300 Meter | 100 Meter | 100 Meter |
| Operating Temperature | 0° to 70°C (32° to 158°F) | Storage Temperature | -40° to 70°C (-40° to 158°F) |
