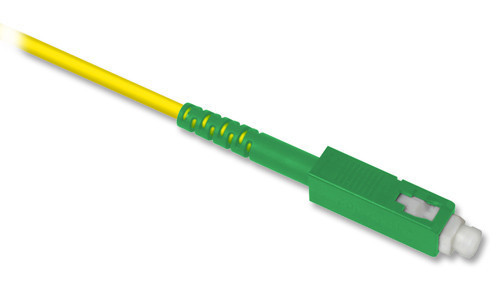

FUSEConnect® SC Splice-On Connectors from AFL are fusion-spliced, field-terminated connectors that are uniquely designed and feature just four components. With a factory pre-polished ferrule, its innovative field-termination process eliminates polishing, adhesives and crimping in the field minimizing the potential for operator error and expensive connector scrap.
FuseConnect utilizes a fusion splicer to terminate the connector in the field, addressing return loss concerns present in analog optical networks. This advanced process yields true APC performance of >65 dB return loss in an SC/APC configuration and SC single-mode is compliant to GR-326-CORE.
Designed to work with an industry standard 10 mm cleave length and splicers utilizing a fiber holder system, FuseConnect is compatible with Fujikura fusion splicers and most other fiber holder-based fusion splicing platforms.
| Glass Type | Value | |
| Insertion Loss | 9/125 OS2 | Average: 0.15 dB Max: 0.35 dB |
| Return Loss | 9/125 OS2 | > 65 dB |
| Operating Temp. | -40°C to +75°C |
