HD8² HDReadyLink®, Cassette to Cassette, OS2, 24 Strand, (12) Port, CS/UPC Duplex, to (12) Port, CS/UPC Duplex, Flipped (Type C) Pinout

click to zoom in

HD8² HDReadyLink®, Cassette to Cassette, OS2, 24 Strand, (12) Port, CS/UPC Duplex, to (12) Port, CS/UPC Duplex, Flipped (Type C) Pinout

Item#:
T-9CSSE02CSSE02F0010
List Price: $744.00
$494.84
(You save $249.16 )
Availability:
Made To Order, Normal lead-time 7 - 10 days, after Drawing Approval

Weight:

1.00 LBS

Minimum Qty:  10 ft
Total Footage: 10 ft
Additional Feet:
x .60 per/ft
Recalculate
Customer Service

Need Help?

Speak to one of our experts.

T-9CSSE02CSSE02F0010 - HD8² HDReadyLink®, Cassette to Cassette, OS2, 24 Strand, (12) Port, CS/UPC Duplex, to (12) Port, CS/UPC Duplex, Flipped (Type C) Pinout - Image 2

HD8² HDReadyLink®, Cassette to Cassette, OS2, 24 Strand, (12) Port, CS/UPC Duplex, to (12) Port, CS/UPC Duplex, Flipped (Type C) Pinout

List Price: $744.00
$494.84
(You save $249.16 )

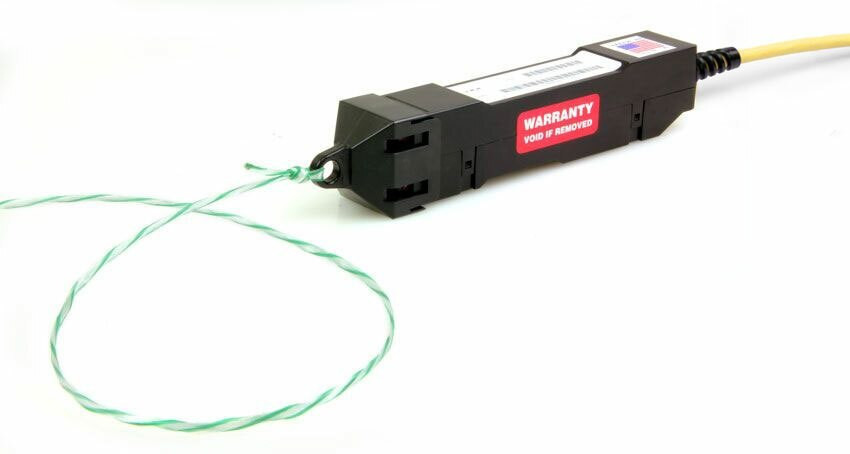

Our HD8² High Density Fiber Optic Patching system is specifically designed for ease of installation and economy of space. The smaller square cassette utilized in our design, versus the typical flat wide cassette, lends itself to a smaller profile. The cassettes come with a snap on pulling eye cap. The pulling eye cap snaps onto the front of the cassette and acts as both a pulling eye and a cover to protect the internal connectors. This design simplifies the installation process of pre-terminated trunked cassettes and as a result can reduce dB loss by reducing the number of termination points throughout the cabling design. Older style designs are cumbersome and either do not allow for pre-termination or, if they are pre-terminated cassettes, they are too large to pull through existing infrastructure.

Product Specification: HD8² HDReadyLink®, 24 Strand 9/125 OS2, Cassette to Cassette, 12-Port CS®/UPC to 12-Port CS®/UPC, Flipped (Type A), With integrated HDReadyPull® Pulling Eye

Connector Side A
CS/UPC Connector Side B
CS/UPC
Ferrule Type Side A 1.25mm Ferrule Type Side B
1.25mm
Port Count Type A 12 Port Count Type B
12
Insertion Loss Maximum Side A
≤0.20dB Insertion Loss Maximum Side B
≤0.20dB
Insertion Loss Typical
0.08dB Insertion Loss Typical
0.08dB
Return Loss ≥60dB Return Loss ≥60dB
===============
==================== ==================
==================
Cable Type
OS2 9/125μm Wavelength 1310/1550nm
Fiber Count 24 Fiber Grade G.657.A1 (Compatible with G.652.D)
Polarity Flipped (Type C) Cable Outer Diameter 3.0mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
Wavelength
1 Gb Distance Max.
Wavelength
10 Gb Distance Max.
1310nm > 25,000 Meters 1310nm 10,000 - 25,000 Meters
1550nm > 40,000 Meters 1550nm 40,000 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

BENEFITS

  • Reduced installation time with integrated pulling eye - 75-85% time savings
  • Space savings of up to 100% per cassette over traditional MTP/MPO cassettes
  • Lower db loss because of the reduced connection points

CS® Connector Designed for next gen 200/400G transceiver QSFP-DD and OSFP

Features

  • 40% size reduction compared to LC Duplex
  • Connector adopted by QSFP-DD, OSFP and COBO
  • Performance exceeds LC
  • Push/Pull tab for a better usability in high density applications
    for a better usability in high density applications
  • Double the density in patch panel compared to LC
  • IEC random mating Grade B

TRUNK CABLE FEATURES

  • Made in USA and TAA compliant
  • REACH & RoHS 2 compliant
  • MM OM1, OM2, OM3, OM4, OM5 & SM OS2
  • Bend-insensitive optical fibers
  • 250 micron loose tube design allows for higher fiber strand counts in a smaller overall diameter cable
  • Flexible and easy to handle Lightweight, flexible aramid yarns enhance strength
  • When necessary, colorcoded binders separate fiber strands into bundles of 12
  • 100% interferometry reports
  • 100% visual inspection reports
  • Total link test testing and labeling available at additional cost

TRUNK CABLE JACKET & GLASS OPTIONS

  • Yellow: OS2
  • Orange: *OM1 & *OM2 (*MOQ and not available in BIF glass)
  • Aqua: OM3, OM4, OM5
  • Note: Erika Violet for OM4 and Lime Green OM5 is available MOQ and leadtime may apply

TRUNK CABLE APPLICATIONS

  • Applications include: 10G, 40G, 100G and 400G Ethernet, fiber channel, video, security and automation

TRUNK CABLE STANDARDS

  • TIA/EIA-568-C.3
  • ISO/IEC 11801, 2nd edition
  • Telcordia GR-409-CORE
  • OS2 glass is compliant to ITU-T G.657.A1
