HD8² HDReadyPull®, Cassette to MTP Fanout, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover

click to zoom in

HD8² HDReadyPull®, Cassette to MTP Fanout, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover

Item#:
R5MME424MME424R10010

866-678-5852

Availability:
Made To Order, OM5 Cable currently is Special Order, Lead-Time and MOQ apply

Weight:

1.00 LBS

Minimum Qty:  10 ft
Total Footage: 10 ft
Additional Feet:
x 20.39 per/ft
Recalculate
Customer Service

Need Help?

Speak to one of our experts.

HD8² HDReadyPull®, Cassette to MTP Fanout, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover - Image 10

HD8² HDReadyPull®, Cassette to MTP Fanout, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover

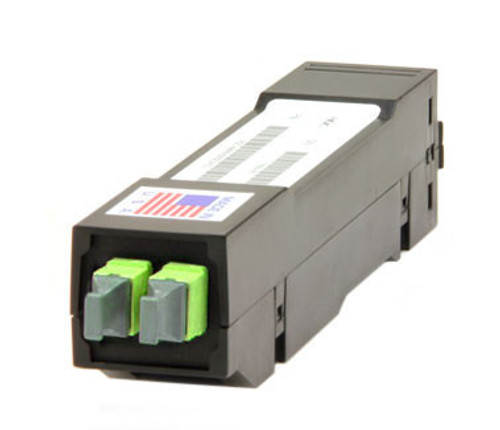

Our HD8² High Density Fiber Optic Patching system is specifically designed for ease of installation and economy of space. The smaller square cassette utilized in our design, versus the typical flat wide cassette, lends itself to a smaller profile. The cassettes come with a snap on pulling eye cap. The pulling eye cap snaps onto the front of the cassette and acts as both a pulling eye and a cover to protect the internal connectors. This design simplifies the installation process of pre-terminated trunked cassettes and as a result can reduce dB loss by reducing the number of termination points throughout the cabling design. Older style designs are cumbersome and either do not allow for pre-termination or, if they are pre-terminated cassettes, they are too large to pull through existing infrastructure.

Product Specification: HD8² HDReadyPull®, 96 Strand 50/125 OM5, Cassette to MTP Fanout, 4-Port MTP®/UPC Elite 24 Fiber Male to 4-Port MTP®/UPC Elite 24 Fiber Male, Rollover (Type B), With integrated HDReadyPull® Pulling Eye

Connector Side A
MTP/UPC Connector Side B
MTP/UPC
Ferrule Type Side A

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover - Image 3HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover - Image 4

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover - Image 5HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover - Image 6

Ferrule Type Side B

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover - Image 7HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover - Image 8

HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover - Image 9HD8² HDReadyLink®, Cassette to Cassette, 50/125 OM5, (4) Port MTP® Elite 24F (Male) to (4) Port MTP® Elite 24F (Male), 96 Strand, Rollover - Image 10

Port Count Side A 4 Port Count Side B
4
Insertion Loss Maximum Side A
≤0.35dB Insertion Loss Maximum Side B
≤0.35dB
Insertion Loss Typical
0.10dB Insertion Loss Typical
0.10dB
Return Loss ≥20dB Return Loss ≥20dB
===============
==================== ==================
==================
Cable Type
OM5 50/125μm Wavelength 850/953/1300nm
Fiber Count 96 Fiber Grade Corning ClearCurve Wide Band Glass
Polarity Rollover (Type B) Cable Outer Diameter 8.7mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter 2.0mm
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
40 GbE Distance Max. 100 GbE Distance Max. 40G-SWDM4 100G-SWDM4
150 Meter 150 Meter 500 MEter 150 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

BENEFITS

  • Reduced installation time with integrated pulling eye - 75-85% time savings
  • Space savings of up to 100% per cassette over traditional MTP/MPO cassettes

TRUNK CABLE FEATURES

  • Made in USA and TAA compliant
  • REACH & RoHS 2 compliant
  • MM OM1, OM2, OM3, OM4, OM5 & SM OS2
  • Bend-insensitive optical fibers
  • 250 micron loose tube design allows for higher fiber strand counts in a smaller overall diameter cable
  • Flexible and easy to handle Lightweight, flexible aramid yarns enhance strength
  • When necessary, colorcoded binders separate fiber strands into bundles of 12
  • 100% interferometry reports
  • 100% visual inspection reports
  • Total link test testing and labeling available at additional cost

TRUNK CABLE JACKET & GLASS OPTIONS

  • Yellow: OS2
  • Orange: *OM1 & *OM2 (*MOQ and not available in BIF glass)
  • Aqua: OM3, OM4, OM5
  • Note: Erika Violet for OM4 and Lime Green OM5 is available MOQ and leadtime may apply

TRUNK CABLE APPLICATIONS

  • Applications include: 10G, 40G, 100G and 400G Ethernet, fiber channel, video, security and automation

TRUNK CABLE STANDARDS

  • TIA/EIA-568-C.3
  • ISO/IEC 11801, 2nd edition
  • Telcordia GR-409-CORE
  • OS2 glass is compliant to ITU-T G.657.A1
