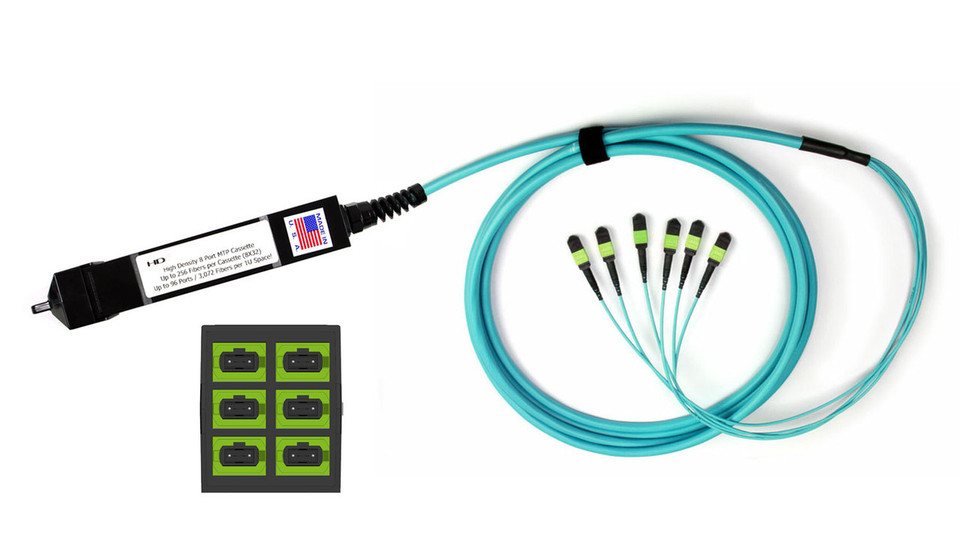

HD8² HDReadyPull®, Cassette to MTP Fanout, 50/125 OM5, (6) Port MTP® Elite 12F (Male) to (6) Port MTP® 12F Elite (Male), 72 Strand, Rollover

Item#: R5MME612MME612R10010
Availability:
Made To Order, OM5 Cable currently is Special Order, Lead-Time and MOQ apply

Weight:

1.00 LBS

Minimum Qty:  10 ft
Total Footage: 10 ft
Additional Feet:
x 16.56 per/ft
Recalculate

Call or Email for Pricing & Availability! 866-678-5852 or email Sales2@CablesPlusUSA.com

Customer Service

Need Help?

Speak to one of our experts.

Our HD8² High Density Fiber Optic Patching system is specifically designed for ease of installation and economy of space. The smaller square cassette utilized in our design, versus the typical flat wide cassette, lends itself to a smaller profile. The cassettes come with a snap on pulling eye cap. The pulling eye cap snaps onto the front of the cassette and acts as both a pulling eye and a cover to protect the internal connectors. This design simplifies the installation process of pre-terminated trunked cassettes and as a result can reduce dB loss by reducing the number of termination points throughout the cabling design. Older style designs are cumbersome and either do not allow for pre-termination or, if they are pre-terminated cassettes, they are too large to pull through existing infrastructure.

Product Specification: HD8² HDReadyPull®, 72 Strand 50/125 OM5, Cassette to MTP Fanout, 6-Port MTP®/UPC Elite 12 Fiber Male to 6-Port MTP®/UPC Elite 12 Fiber Male, Rollover (Type B), With integrated HDReadyPull® Pulling Eye

Connector Side A
MTP/UPC Elite Low Loss 12 Fiber (Male) Connector Side B
MTP/UPC Elite Low Loss 12 Fiber (Male)
Ferrule Type Side A

Ferrule Type Side B

Port Count Side A
6 Port Count Side A 6
Insertion Loss Maximum Side A
≤0.35dB Insertion Loss Maximum Side B
≤0.35dB
Insertion Loss Typical
0.10dB Insertion Loss Typical
0.10dB
Return Loss ≥20dB Return Loss ≥20dB
===============
==================== ==================
==================
Cable Type
OM5 50/125μm Wavelength 850/953/1300nm
Fiber Count 72 Fiber Grade Corning ClearCurve Wide Band Glass
Polarity Rollover (Type B) Cable Outer Diameter 7.5mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter 2.0mm
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
40 GbE Distance Max. 100 GbE Distance Max. 40G-SWDM4 100G-SWDM4
150 Meter 150 Meter 500 MEter 150 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

BENEFITS

  • Reduced installation time with integrated pulling eye - 75-85% time savings
  • Space savings of up to 100% per cassette over traditional MTP/MPO cassettes
  • Lower db loss because of the reduced connection points
  • *Shuttered LC couplers reduce dust and increase eye safety

*The HD8² takes advantage of Senkos dustproof LC adapter with internal shutter in its cassette design. The internal shutter is actuated when you plug the LC patch cable into the adapter. The shutter automatically opens as you insert the LC connector, and closes as you extract it. Due to the special design of the shutter, it will not touch the ferrule end face when you insert a connector, thus preventing end face damage. The internal shutter prevents eye exposure to lasers and provides protection from dust and other contaminants.

TRUNK CABLE FEATURES

  • Made in USA and TAA compliant
  • REACH & RoHS 2 compliant
  • MM OM1, OM2, OM3, OM4, OM5 & SM OS2
  • Bend-insensitive optical fibers
  • 250 micron loose tube design allows for higher fiber strand counts in a smaller overall diameter cable
  • Flexible and easy to handle Lightweight, flexible aramid yarns enhance strength
  • When necessary, colorcoded binders separate fiber strands into bundles of 12
  • 100% interferometry reports
  • 100% visual inspection reports
  • Total link test testing and labeling available at additional cost

TRUNK CABLE JACKET & GLASS OPTIONS

  • Yellow: OS2
  • Orange: *OM1 & *OM2 (*MOQ and not available in BIF glass)
  • Aqua: OM3, OM4, OM5
  • Note: Erika Violet for OM4 and Lime Green OM5 is available MOQ and leadtime may apply

TRUNK CABLE APPLICATIONS

  • Applications include: 10G, 40G, 100G and 400G Ethernet, fiber channel, video, security and automation

TRUNK CABLE STANDARDS

  • TIA/EIA-568-C.3
  • ISO/IEC 11801, 2nd edition
  • Telcordia GR-409-CORE
  • OS2 glass is compliant to ITU-T G.657.A1
