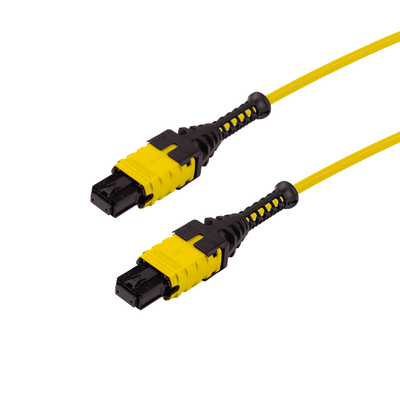

MTP® PRO Elite to MTP® PRO Elite OS2 Singlemode 9/125 Micron BIF Bend Insensitive Fiber

The MTP Elite brand connector is an improved version of the MPO style connector, offering features that benefit the user to get the best possible connection, including a removable housing for reworking the ferrule or changing the connector gender post-assembly.

Other features such as the patented ferrule float and stainless steel guide pin tips (available on male versions) help offer greater durability and accuracy. With this 12-strand fiber optic cable, you can perform an array of functions at a fraction of the space used by standard connector cables.

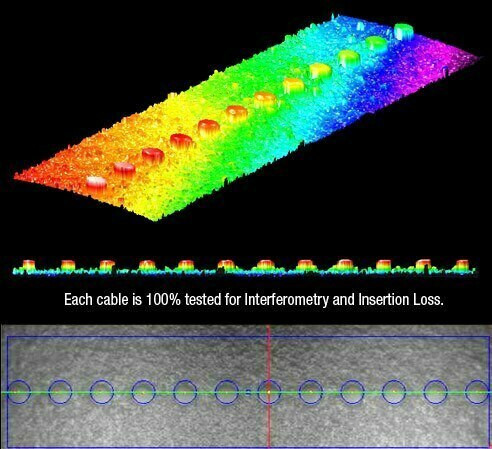

Each cable is assembled in-house our local facility, and tested for interferometry and insertion loss, so enjoy the American-made quality and high performance that LightWave cables provide.

LightWave brand MTP Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.

Choose Your Gender

Female to Female - MTP/MPO (No Pin) to MTP/MPO (No Pin)

Female to Male - MTP/MPO (No Pin) to MTP/MPO (With Pin)

Male To - - MTP/MPO (With Pin) to MTP/MPO (With Pin)

Choose Your Polarity

Type A - Straight: Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.

Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.

Type C - Flipped: Pair-Flipped polarity is the most commonly used polarity type for this cable, and typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. This is the default polarity option, but you can select your desired polarity from our drop-down menu above.

MTP Elite Pro Boot 24-Strand Fiber Cable Features

• Space-saving 24 fibers in a single connector
• 3.0mm Plenum Rated Jacket
• High density connections between network equipment in telecommunication rooms
• Easy installation and removal with push-pull Pro Boot
• Compact design for high fiber-count applications with space limitations

Specifications

• Simplex 3.0mm cable
• 9/125um OS2 Glass - Bend Insensitve Fiber fiber
• Plenum-Rated OFNP Yellow Jacket
• 24-Fiber count
• Nominal Diameter: 3.0mm
• 100G LR10 (10X10G) 20/24 Fiber
• Bend Radius: 15x cable overall diameter

Connector Side A	MTP/APC Elite Low Loss 24 Fiber	Connector Side B	MTP/APC Elite Low Loss 24 Fiber
Ferrule Type Side A		Ferrule Type Side A
Insertion Loss Maximum Side A	≤0.35dB	Insertion Loss Maximum Side B	≤0.35dB
Insertion Loss Typical	0.10dB	Insertion Loss Typical	0.10dB
Return Loss	≥60dB	Return Loss	≥60dB
===============	====================	==================	==================
Cable Type	OS2 9/125μm	Wavelength	1310/1550nm
Fiber Count	24	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Polarity	Rollover (Type B)	Cable Outer Diameter	3.0mm
Cable Jacket	OFNP Plenum	Sub Unit Outer Diameter	N/A
Bend Radius, No Load	10x cable overall diameter	Bend Radius, Load	15x cable overall diameter
===============	====================	==================	==================
Wavelength	1 Gb Distance Max.	Wavelength	10 Gb Distance Max.
1310nm	> 25,000 Meters	1310nm	10,000 - 25,000 Meters
1550nm	> 40,000 Meters	1550nm	40,000 Meters
Operating Temperature	0° to 70°C (32° to 158°F)	Storage Temperature	-40° to 70°C (-40° to 158°F)
