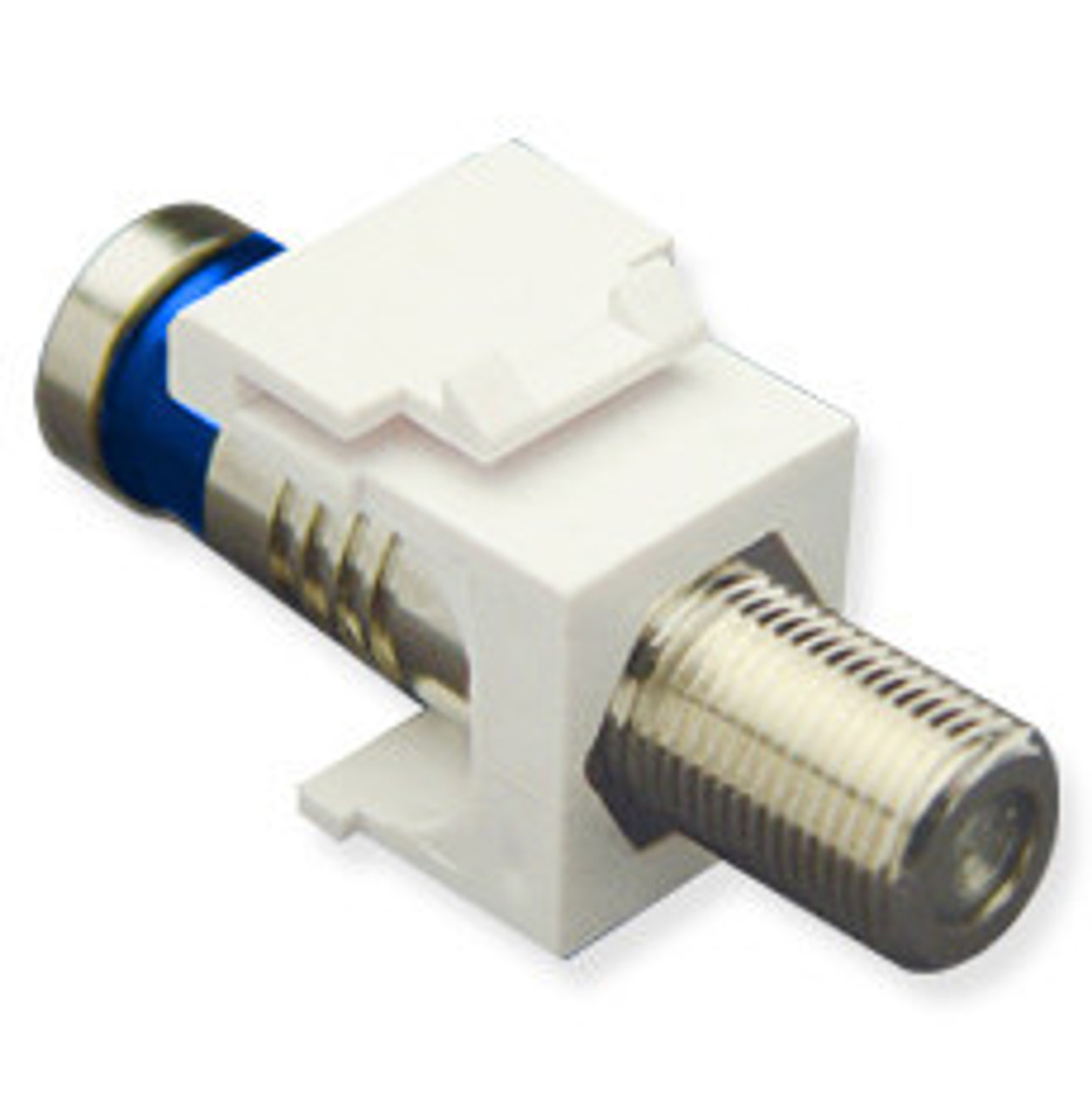

Feedthrough female-to-female modular jacks.

Product Features

• Compression connection allows connectors to be pressed vertically onto cables without causing awkward bends and distortion to the waveguide cavity thereby minimizing distortions and improving signal quality
• Snap and seal connectors designed with internal O-rings allowing for a tighter moisture resistant fit for indoor or outdoor use
• Supports a wide variety of applications such as CCTV, DSS (DTV, HDTV, SDTV), and CATV
• Used with ICC Universal, Economic, and F-type Compression Tools
• Available in blue band for RG59 cables
• Not designed for use on plenum cables

Specifications

Housing:

• Material: ABS, 94V-0.
• Color: XX: WH-White

F- type compression Connector:

• Material: Brass and Nickel Finish
• Band color: Blue

Mechanical:

• Cable application: <20 LBS Max Insertion
• Equipment Interface: >10 Matings Without Damage
• Pull Force: >40 LBS
